RY21-JDH (1982)
Toyota Toyoace
Production
Jan 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )B

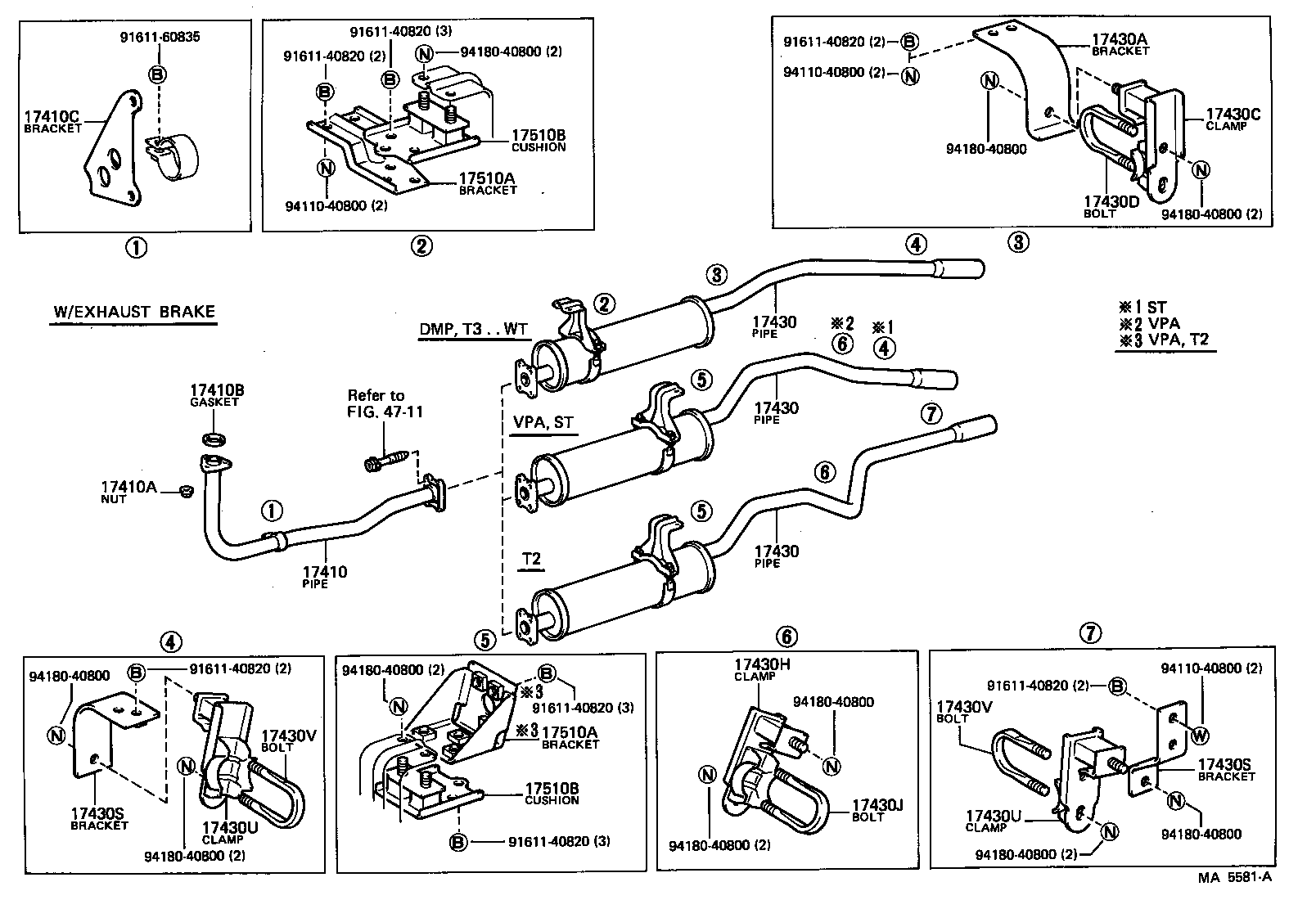

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-31150 |
12R..RY2# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
12R,2J..JY30,RY2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,12R,2J,2L..JY30,LY2#,3#,RY2# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44070 |
12R,5R..RY2#,3# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31200 |
12R,5R..RY21,32..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31200 |
12R,5R..RY21,32..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31200 |
12R,5R..RY21,32..ST |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-31100 |
12R,5R..RY21,32..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-44020 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-44020 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-60835 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 4711 | ||||
