RY21-JDB (1982)
Toyota Toyoace
ILLUST NO. 2 OF 2(8201- )12R,5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
12R..RY2# L=74,S=12&15 |
1 | ||
| 90116-06230 |
12R..RY2# L=74,S=12&15 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
12R..RY2# L=74,S=12&15 |
1 | ||
| 90116-06230 |
12R..RY2# L=74,S=12&15 |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17709-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17709-95014 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17709-95014 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95013 |
12R,5R..RY21,32 |
1 | ||
| 17701-95013 |
12R,5R..RY21,32 |
1 | ||
| 17701-95012 |
12R,5R..RY2#,3# |
1 | ||
| 17701-95012 |
12R,5R..RY2#,3# |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95013 |
12R,5R..RY21,32 |
1 | ||
| 17701-95013 |
12R,5R..RY21,32 |
1 | ||
| 17701-95012 |
12R,5R..RY2#,3# |
1 | ||
| 17701-95012 |
12R,5R..RY2#,3# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-31020 |
12R,5R..RY21,32 |
1 | ||
| 17771-31020 |
12R,5R..RY21,32 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-31110 |
12R..RY2# |
1 | ||
| 17861-31110 |
12R..RY2# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-31110 |
12R..RY2# |
1 | ||
| 17861-31110 |
12R..RY2# |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
12R..RY2# |
1 | ||
| 90210-09026 |
12R..RY2# |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
12R..RY2# |
1 | ||
| 90210-09026 |
12R..RY2# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RY2# |
1 | ||
| 90430-63187 |
12R..RY2# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RY2# |
1 | ||
| 90430-63187 |
12R..RY2# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881-31030 |
12R..RY2# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
12R,5R..RY2#,3# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 96111-10690 |
12R,5R..RY2#,3# ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
12R,5R..RY21,32 |
1 | ||
| 17882-31070 |
12R,5R..RY21,32 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17884-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17884-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-31020 |
12R..RY21 |
1 | ||
| 17885-31020 |
12R..RY21 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-31020 |
12R..RY21 |
1 | ||
| 17885-31020 |
12R..RY21 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-31020 |
12R..RY21 |
1 | ||
| 17885-31020 |
12R..RY21 |
1 | ||
| Common parts | ||||
| 90109-06026 | ||||
| 90179-06012 | ||||
| 90179-08046 | ||||
| 90201-08486 | ||||
| 90480-16011 | ||||
| 90540-08011 | ||||
| 91621-40625 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-40600 | ||||

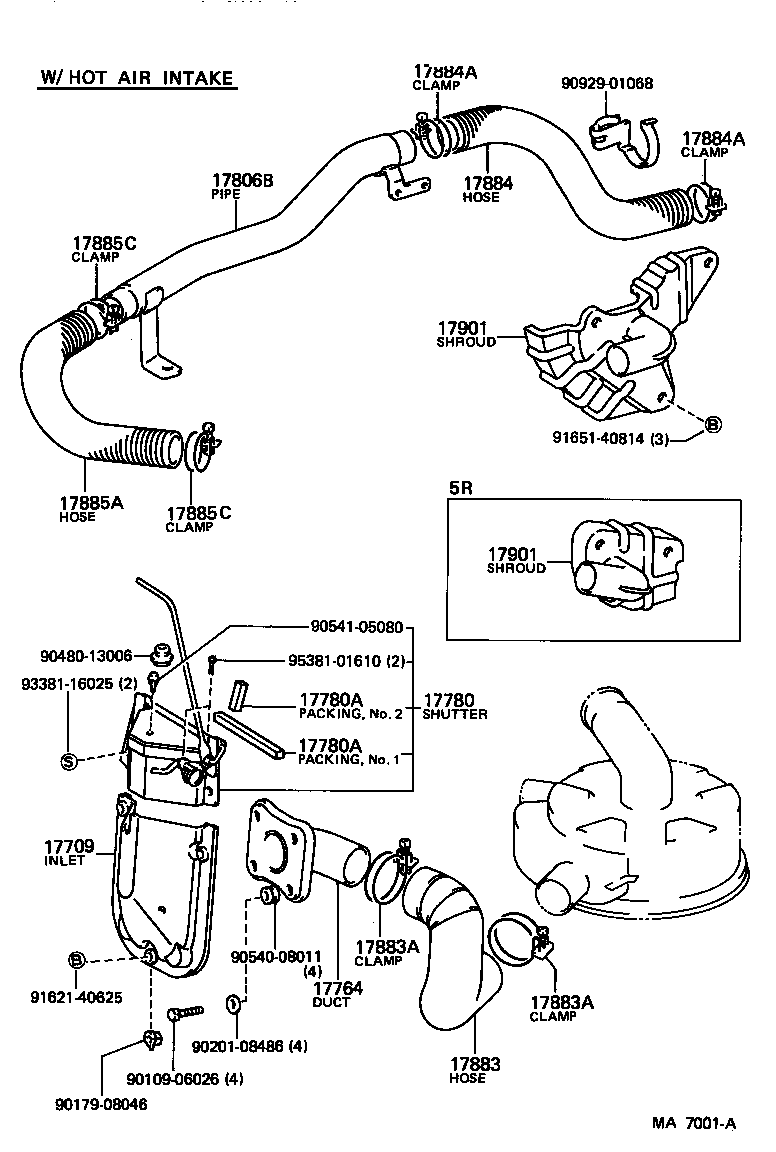

ILLUST NO. 2 OF 2(8308- )12R,5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17709-95014 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95013 |
12R,5R..RY21,32 |
1 | ||
| 17701-95012 |
12R,5R..RY2#,3# |
1 | ||
| 17780 - SHUTTER ASSY, COOL AIR | ||||
| 17780-95010 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17780A - PACKING(FOR COOL AIR SHUTTER) | ||||
| 17756-95010 |
12R,5R..RY21,32 W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17754-95011 |
12R,5R..RY21,32 W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17780A - PACKING(FOR COOL AIR SHUTTER) | ||||
| 17756-95010 |
12R,5R..RY21,32 W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17754-95011 |
12R,5R..RY21,32 W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17806B - PIPE SUB-ASSY, AIR CLEANER, NO.3 | ||||
| 17806-31010 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17884-95010 |
12R,5R..RY2#,3# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
12R,5R..RY2#,3# |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17882-31050 |
12R..RY21 W/HOT AIR INTAKE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10460 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10460 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
2 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17882-44070 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
12R,5R..RY21,32 W/HOT AIR INTAKE |
2 | ||
| 17901 - INLET SUB-ASSY, HOT AIR | ||||
| 17895-31020 |
12R..RY21 W/HOT AIR INTAKE |
1 | ||
| 17901 - INLET SUB-ASSY, HOT AIR | ||||
| 17895-31020 |
12R..RY21 W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90109-06026 | ||||
| 90179-08046 | ||||
| 90201-08486 | ||||
| 90480-13006 | ||||
| 90540-08011 | ||||
| 90541-05080 | ||||
| 90929-01068 | ||||
| 91621-40625 | ||||
| 91651-40814 | ||||
| 93381-16025 | ||||
| 95381-01610 | ||||
