RY21-JD (1982)

Toyota Toyoace

Production Jan 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )B

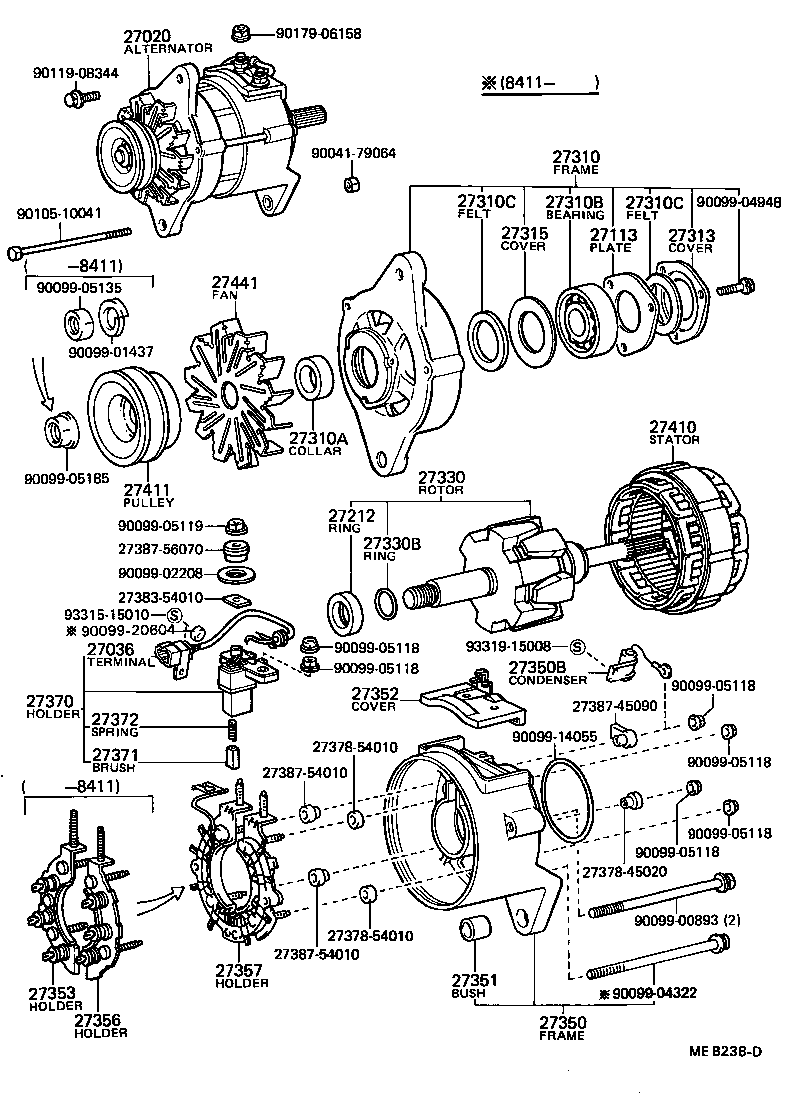

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 9004179064 9009900893 9009901437 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009905185 9009914055 9009920604 9010510041 9011908344 9017906158 9331515010 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

12R..RY2#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R..RY2#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R..RY2#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R..RY2#

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R..RY2#

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R..RY2#

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R..RY2#

12V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

12R..RY2#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R..RY2#

12V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

12R..RY2#

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-24020

12R..RY2#

12V 30A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11014

12R..RY2#

12V 30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31090

12R..RY2#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R..RY2#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R..RY2#

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R..RY2#

12V 30A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90099-00893
90099-01437
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05135
90099-05185
90099-14055
90099-20604
90105-10041
90119-08344
90179-06158
93315-15010
93319-15008
