RY20V-JDT (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )VP,VPS

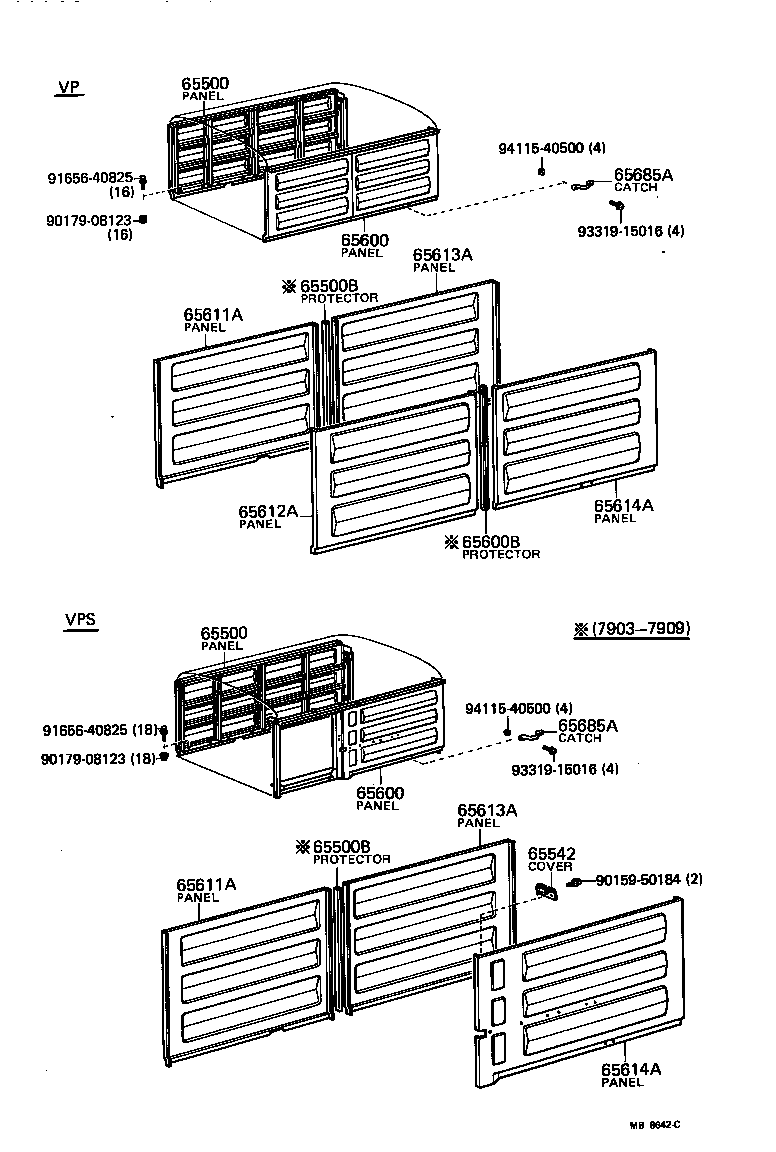

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92515 |
LY20,RY2#..VP |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92515 |
LY20,RY2#..VP |
1 | ||
| 65500B - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 64144-92515 |
LY20,30,RY20,31..VP,VPS,VT |
1 | ||
| 65500B - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 64144-92515 |
LY20,30,RY20,31..VP,VPS,VT |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92515 |
LY20,RY2#..VP |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92515 |
LY20,RY2#..VP |
1 | ||
| 65600B - PROTECTOR, REAR BODY SIDE PANEL, LH | ||||
| 64144-92515 |
LY20,30,RY20,31..VP,VT |
1 | ||
| 65611A - PANEL, SIDE OUTER, FRONT RH | ||||
| 65611-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65611A - PANEL, SIDE OUTER, FRONT RH | ||||
| 65611-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65612A - PANEL, SIDE OUTER, FRONT LH | ||||
| 65612-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65613A - PANEL, SIDE OUTER, REAR RH | ||||
| 65613-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65613A - PANEL, SIDE OUTER, REAR RH | ||||
| 65613-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65614A - PANEL, SIDE OUTER, REAR LH | ||||
| 65614-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65614A - PANEL, SIDE OUTER, REAR LH | ||||
| 65614-92515 |
LY20,RY20..VP,VT |
1 | ||
| 65685A - CATCH, BACK DOOR STOPPER | ||||
| 65685-92516 |
LY20,3#,RY2#,3#..VP,VPS,VT |
2 | ||
| 65685A - CATCH, BACK DOOR STOPPER | ||||
| 65685-92516 |
LY20,3#,RY2#,3#..VP,VPS,VT |
2 | ||
| Common parts | ||||
| 90159-50184 | ||||
| 90179-08123 | ||||
| 91656-40825 | ||||
| 93319-15016 | ||||
| 94115-40500 | ||||
