RY20V-JDT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7903- )TR

Click highlighted areas on diagram

diagram 65240 65311 6553 66010 66020 66223 66241 66271 66321 9015050005 9017905095 9017906164 9111140614 9152140820 9165140616 9165140616 9165140616
Part # Description Qty Price
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-95013

LY20,3#,RY2#,3#..VP,VPS,VT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95013

LY20,30,RY20,31..VP,VPS,VT

 1
66223 - STAY, REAR FENDER REAR PLATE
66222-95012

LY20,3#,RY2#,3#..VP,VPS,VT

FR

 2
66223-95012

LY20,3#,RY2#,3#..VP,VPS,VT

RR

 2
66241 - MUDGUARD, REAR
66246-92515

LY20,30,RY20,31..VP,VPS,VT

LH

 1
66241-92515

LY20,30,RY20,31..VP,VPS,VT

RH

 1
66271 - STEP, REAR BODY
66271-95017

LY30..TW1;LY30..VP,VPS,VT;LY20,RY20,31..TW,VP,VPS,VT

 1
Common parts
90150-50005
90179-05095
90179-06164
91111-40614
91521-40820
91651-40616
Linked diagrams
6553

(7903- )VP,VPS,VT

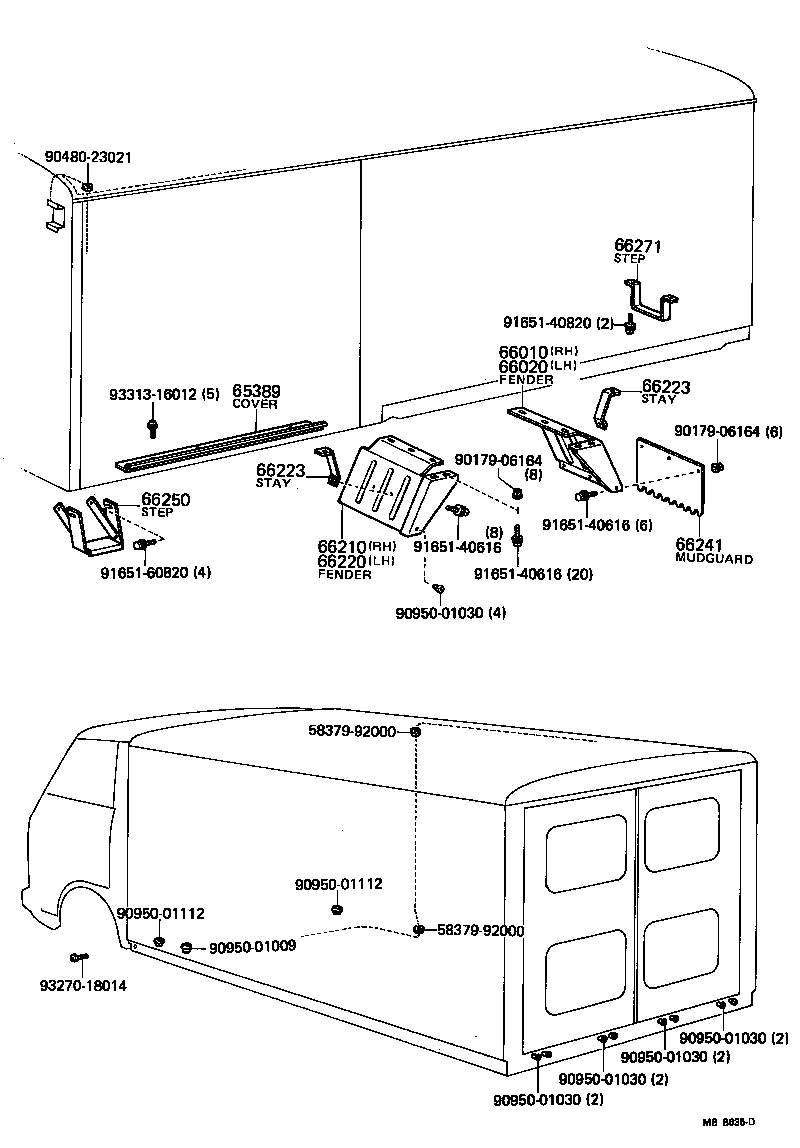

Click highlighted areas on diagram

diagram 5837992000 5837992000 65389 66010 66020 66210 66220 66223 66223 66241 66250 66271 9017906164 9017906164 9048023021 9095001009 9095001030 9095001030 9095001030 9095001030 9095001030 9095001112 9095001112 9165140616 9165140616 9165140616 9165140820 9165160820 9327018014 9331316012
Part # Description Qty Price
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-95013

LY20,3#,RY2#,3#..VP,VPS,VT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95013

LY20,30,RY20,31..VP,VPS,VT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66010-95013

LY20,3#,RY2#,3#..VP,VPS,VT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66020-95013

LY20,3#,RY2#,3#..VP,VPS,VT

 1
66223 - STAY, REAR FENDER REAR PLATE
66222-95012

LY20,3#,RY2#,3#..VP,VPS,VT

FR

 2
66223-95012

LY20,3#,RY2#,3#..VP,VPS,VT

RR

 2
66223 - STAY, REAR FENDER REAR PLATE
66222-95012

LY20,3#,RY2#,3#..VP,VPS,VT

FR

 2
66223-95012

LY20,3#,RY2#,3#..VP,VPS,VT

RR

 2
66241 - MUDGUARD, REAR
66246-92515

LY20,30,RY20,31..VP,VPS,VT

LH

 1
66241-92515

LY20,30,RY20,31..VP,VPS,VT

RH

 1
66271 - STEP, REAR BODY
66271-95017

LY30..TW1;LY30..VP,VPS,VT;LY20,RY20,31..TW,VP,VPS,VT

 1
Common parts
58379-92000
90179-06164
90480-23021
90950-01009
90950-01030
90950-01112
91651-40616
91651-40820
91651-60820
93270-18014
93313-16012
