RY20V-JDT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R

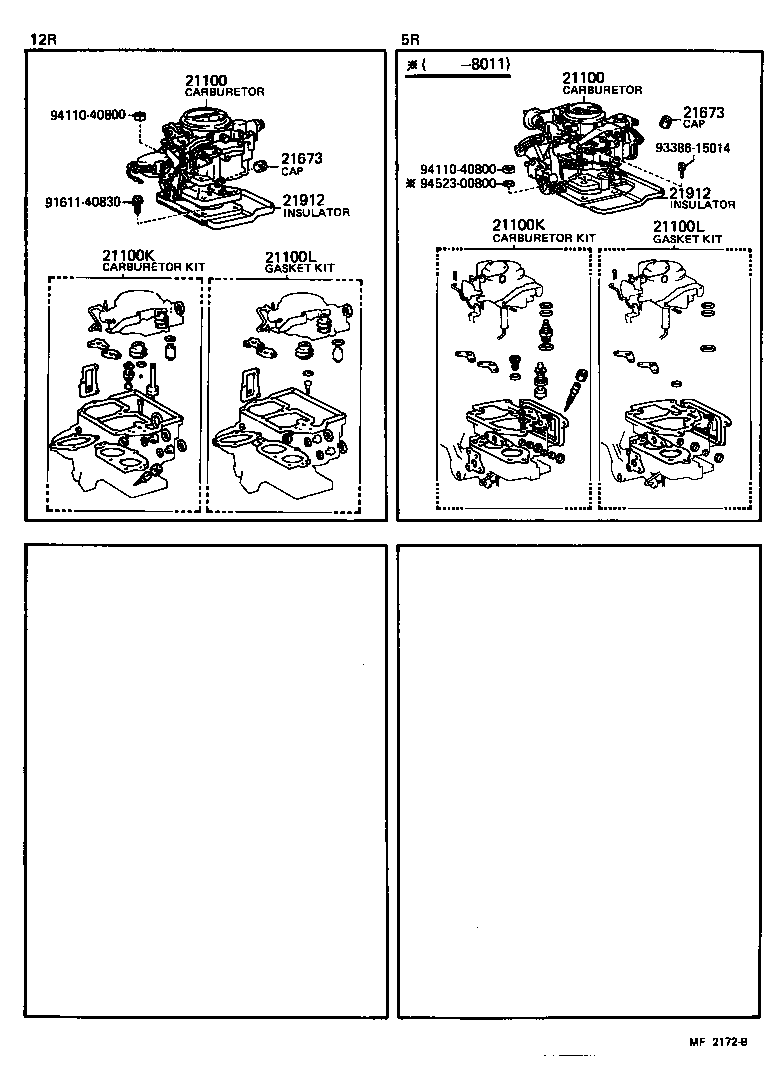

Click highlighted areas on diagram

diagram 21100 21100 21100K 21100K 21100L 21100L 21673 21673 21912 21912 9161140830 9338615014 9411040800 9411040800 9452300800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-31460

12R..RY20

 1
21100-31461

12R..RY20

 1
21100 - CARBURETOR ASSY
21100-31460

12R..RY20

 1
21100-31461

12R..RY20

 1
21100K - CARBURETOR KIT
04211-31290

12R..RY20

 1
21100K - CARBURETOR KIT
04211-31290

12R..RY20

 1
21100L - GASKET KIT, CARBURETOR
04212-28012

12R..RY20

 1
04212-31070

12R..RY20

 1
21100L - GASKET KIT, CARBURETOR
04212-28012

12R..RY20

 1
04212-31070

12R..RY20

 1
21673 - CAP, IDLE LIMIT
21673-38020

12R,5R..RY2#,3#

 1
21673 - CAP, IDLE LIMIT
21673-38020

12R,5R..RY2#,3#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-31061

12R..RY2#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-31061

12R..RY2#

 1
Common parts
91611-40830
93386-15014
94110-40800
94523-00800
