RY20-JDPH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

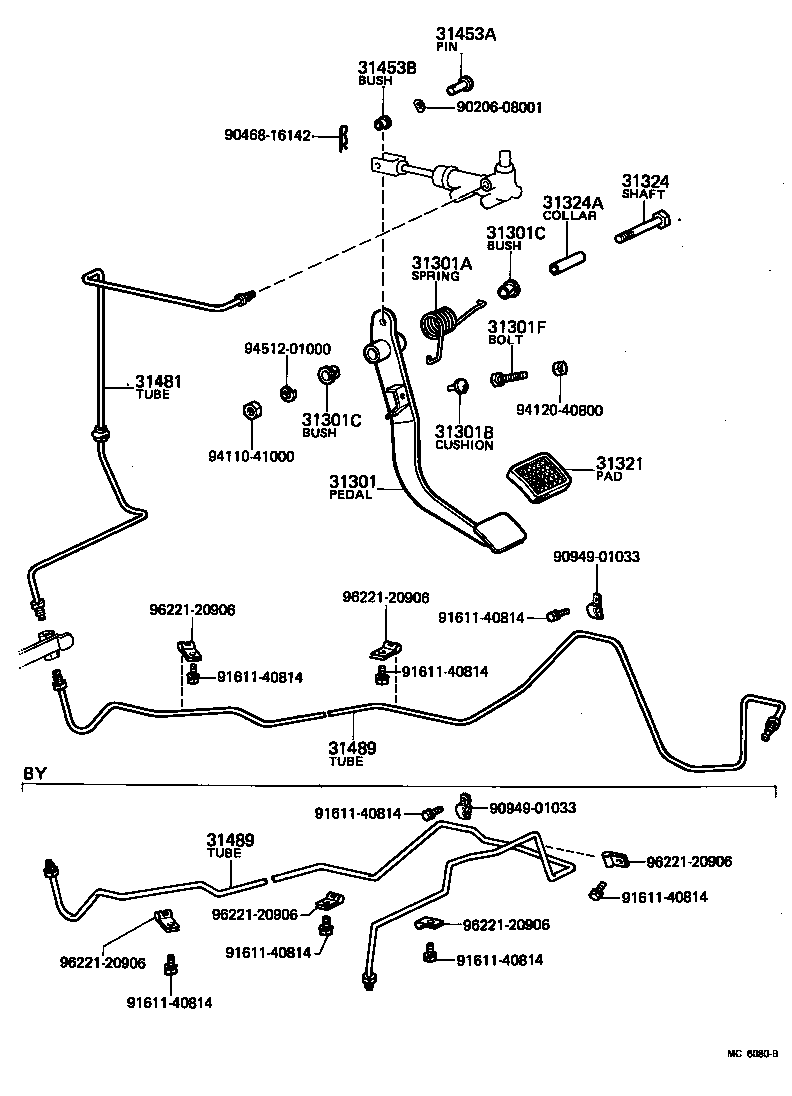

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 31481 31489 31489 9020608001 9046816142 9094901033 9094901033 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9411041000 9412040800 9451201000 9622120906 9622120906 9622120906 9622120906 9622120906 9622120906
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-25020

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35131

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BY3#,JY30,LY2#,3#,RY2#,3#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BY3#,JY30,LY2#,3#,RY2#,3#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50835

BY30,JY30,LY20,30,RY2#,3#

 1
31321 - PAD, CLUTCH PEDAL
31321-25030

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51070

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BY3#,JY30,LY2#,3#,RY2#,3#

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-25090

BY3#,JY30,LY2#,3#,RY2#,3#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25040

LY2#,3#,RY2#,3#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25040

LY2#,3#,RY2#,3#

 1
Common parts
90206-08001
90468-16142
90949-01033
91611-40814
94110-41000
94120-40800
94512-01000
96221-20906

ILLUST NO. 2 OF 2(7903- )JY30,LY2#,3#,RY2#,3#

Click highlighted areas on diagram

diagram 31481A 31481A 31481A 31481A 31482 31482 31482 31482 31484 31484 31484 31484 9046104019 9161140612 9161141014 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
31418-25010

RY2#,3#

 1
31481A - HOSE, CLUTCH, NO.1
31418-25010

RY2#,3#

 1
31481A - HOSE, CLUTCH, NO.1
31418-25010

RY2#,3#

 1
31481A - HOSE, CLUTCH, NO.1
31418-25010

RY2#,3#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25050

RY2#,3#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25050

RY2#,3#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25050

RY2#,3#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25050

RY2#,3#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35040

RY2#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35040

RY2#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35040

RY2#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35040

RY2#

 1
Common parts
90461-04019
91611-40612
91611-41014
96991-10080
96991-12080
