RY20-JDPH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R

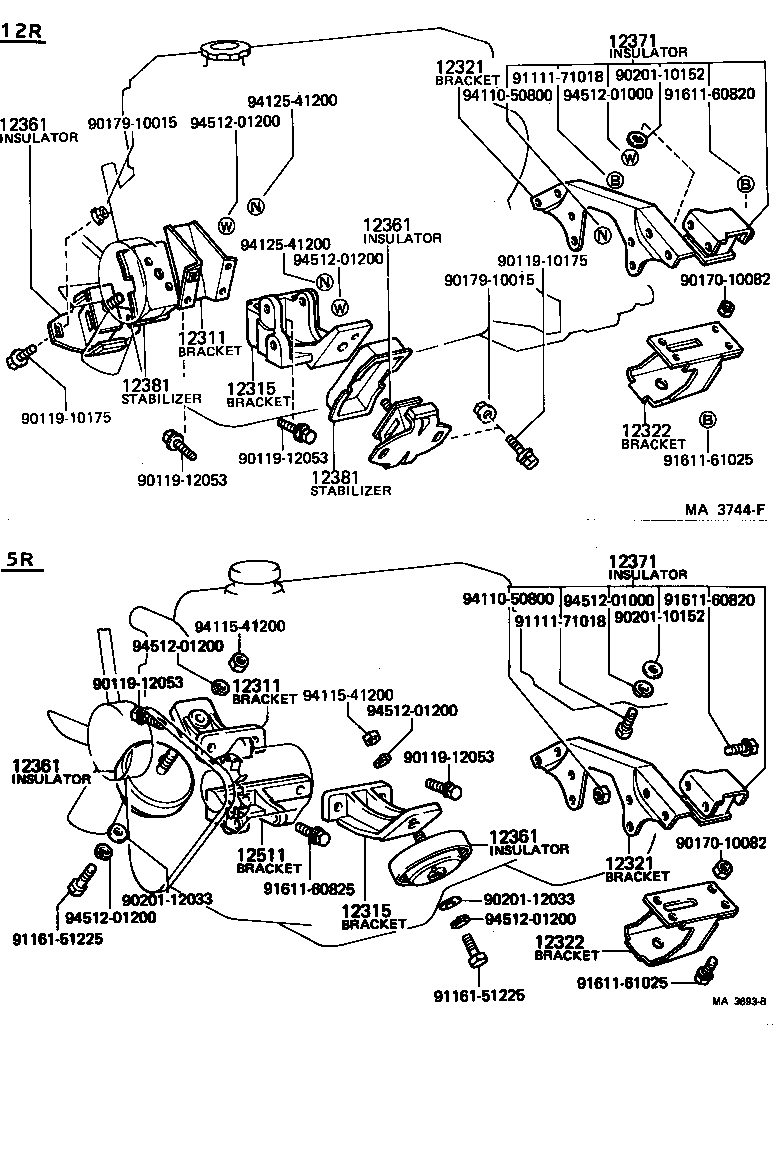

Click highlighted areas on diagram

MA3744F,MA3693B

diagram 12311 12311 12315 12315 12321 12321 12322 12322 12361 12361 12361 12361 12371 12371 12381 12381 12511 9011910175 9011910175 9011912053 9011912053 9011912053 9011912053 9017010082 9017010082 9017910015 9017910015 9020110152 9020110152 9020112033 9020112033 9111171018 9111171018 9116151225 9116151225 9161160820 9161160820 9161160825 9161161025 9161161025 9411050800 9411050800 9411541200 9411541200 9412541200 9412541200 9451201000 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R..RY2#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R..RY2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RY2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RY2#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31030

12R,5R..RY2#,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31030

12R,5R..RY2#,3#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31040

12R..RY20

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31040

12R..RY20

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

12R,5R..RY2#,3#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

12R,5R..RY2#,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20

 2
Common parts
90119-10175
90119-12053
90170-10082
90179-10015
90201-10152
90201-12033
91111-71018
91161-51225
91611-60820
91611-60825
91611-61025
94110-50800
94115-41200
94125-41200
94512-01000
94512-01200

(8009- )B

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12325 12361 12361 12371 12511 12511 9010512008 9010512091 9011908209 9011910110 9011910110 9017010082 9017010082 9020110152 9020112033 9020112033 9111171018 9116151220 9116151220 9161161022 9161161022 9161161025 9161161025 9161161028 9161161028 9411070800 9411541200 9411541200 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R..RY2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RY2#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31030

12R,5R..RY2#,3#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31040

12R..RY20

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

12R,5R..RY2#,3#

 2
Common parts
90105-12008
90105-12091
90119-08209
90119-10110
90170-10082
90201-10152
90201-12033
91111-71018
91161-51220
91611-61022
91611-61025
91611-61028
94110-70800
94115-41200
94512-01000
94512-01200
