RY20-JDLHT3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

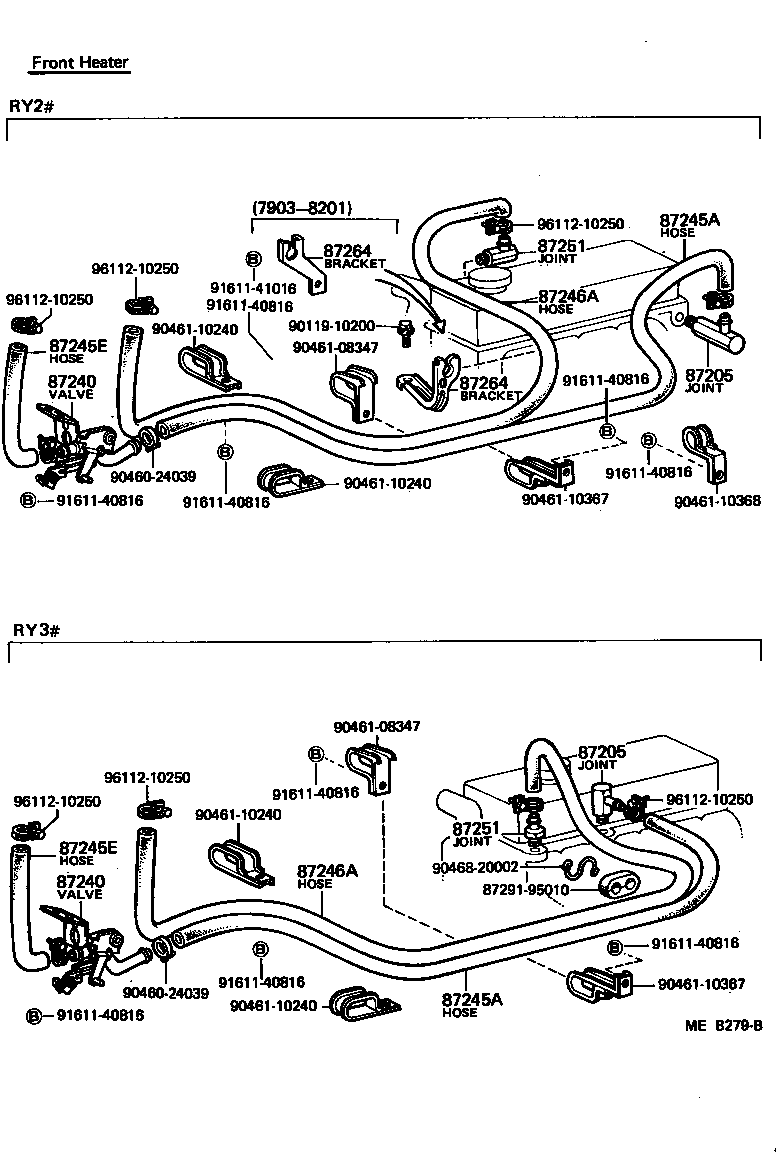

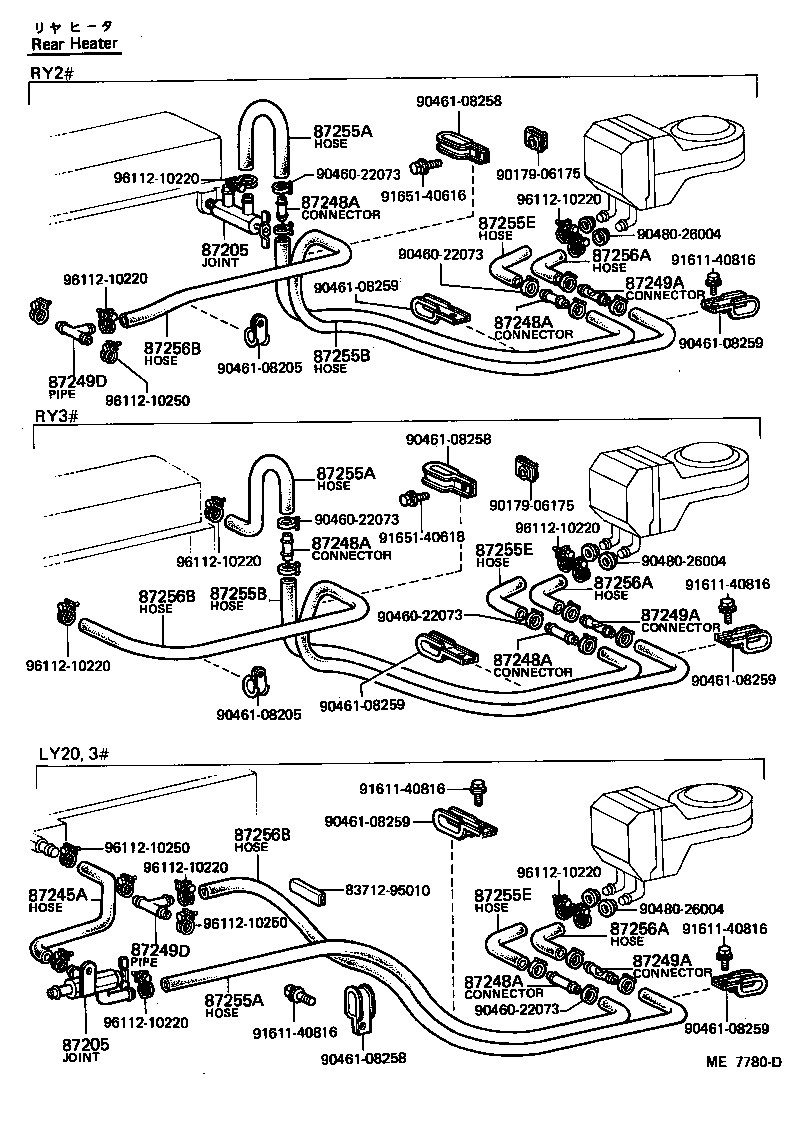

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 87205 87205 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87251 87251 8729195010 9046024039 9046024039 9046024039 9046108157 9046108347 9046108347 9046110240 9046110240 9046110240 9046110240 9046110240 9046110367 9046820002 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245B - HOSE, HEATER WATER, INLET B
99552-31000

LY2#,3#

*H,L=840

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
Common parts
87291-95010
90460-24039
90461-08157
90461-08347
90461-10240
90461-10367
90468-20002
91611-40816
96112-10250

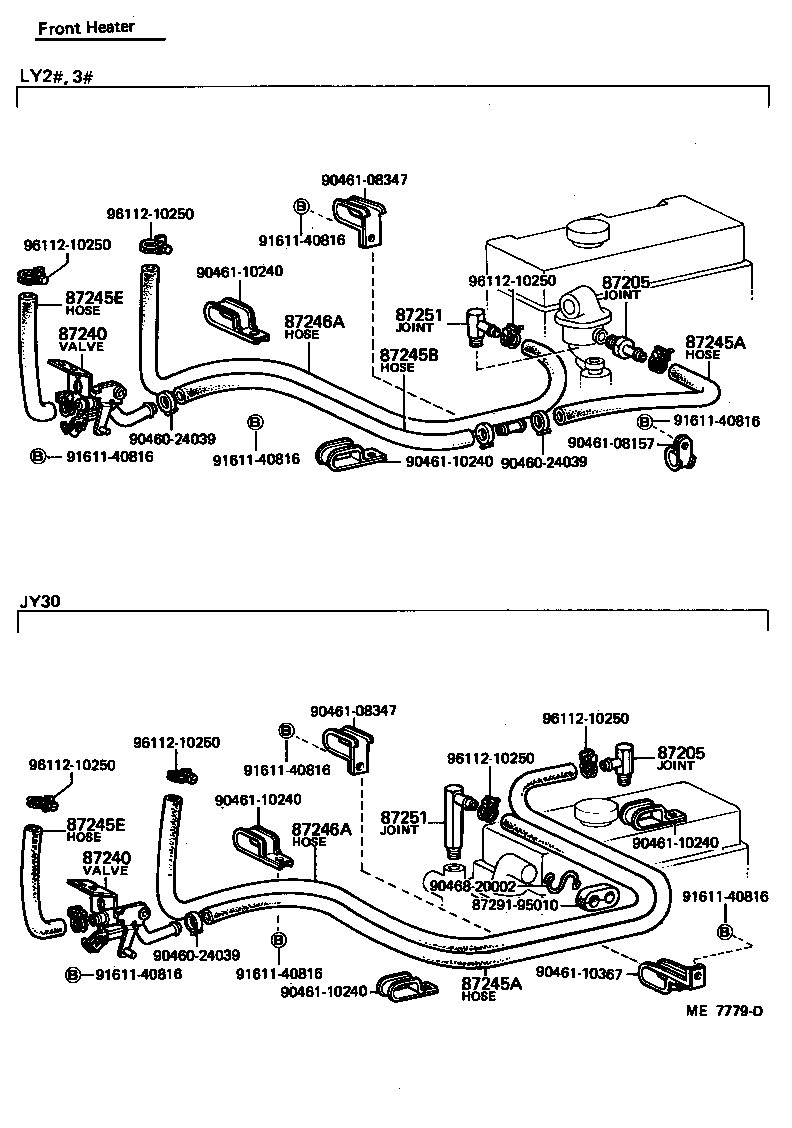

ILLUST NO. 2 OF 2(7903- )

Click highlighted areas on diagram

diagram 8371295010 87205 87205 87245A 87248A 87248A 87248A 87248A 87248A 87249A 87249A 87249A 87249D 87249D 87255A 87255A 87255A 87255B 87255B 87255E 87255E 87255E 87256A 87256A 87256A 87256B 87256B 87256B 9017906175 9017906175 9046022073 9046022073 9046022073 9046022073 9046022073 9046108205 9046108205 9046108258 9046108258 9046108258 9046108259 9046108259 9046108259 9046108259 9046108259 9046108259 9048026004 9048026004 9048026004 9161140816 9161140816 9161140816 9161140816 9161140816 9165140616 9165140618 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95A02

RY2#

 1
87251-30200

LY2#,3#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95A02

RY2#

 1
87251-30200

LY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
Common parts
83712-95010
90179-06175
90460-22073
90461-08205
90461-08258
90461-08259
90480-26004
91611-40816
91651-40616
91651-40618
96112-10220
96112-10250

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 87205 87205 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87251 87251 87264 87264 8729195010 9011910200 9046024039 9046024039 9046108347 9046108347 9046110240 9046110240 9046110240 9046110240 9046110367 9046110367 9046110368 9046820002 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161141016 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
87264 - BRACKET, HEATER WATER HOSE
87241-95010

RY20

 1
87264 - BRACKET, HEATER WATER HOSE
87241-95010

RY20

 1
Common parts
87291-95010
90119-10200
90460-24039
90461-08347
90461-10240
90461-10367
90461-10368
90468-20002
91611-40816
91611-41016
96112-10250

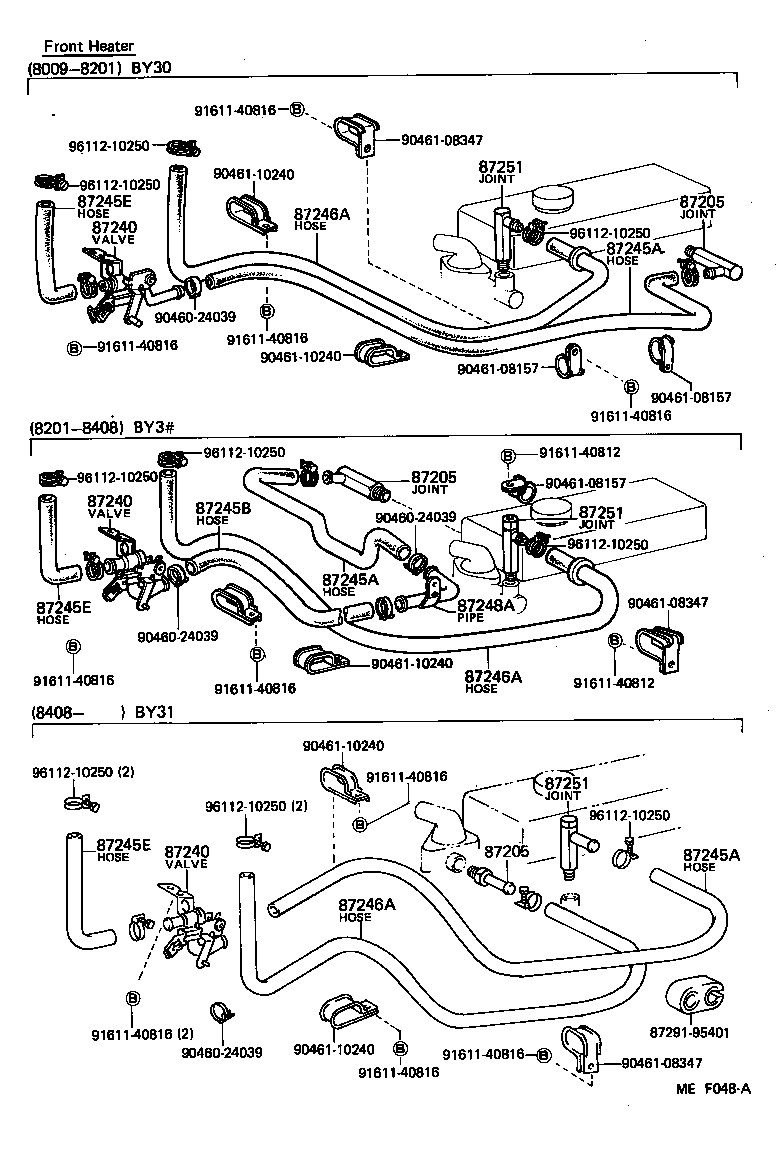

ILLUST NO. 1 OF 2(8009- )

Click highlighted areas on diagram

diagram 87205 87205 87205 87240 87240 87240 87245A 87245A 87245A 87245B 87245E 87245E 87245E 87246A 87246A 87246A 87248A 87251 87251 87251 8729195401 9046024039 9046024039 9046024039 9046024039 9046108157 9046108157 9046108157 9046108347 9046108347 9046108347 9046110240 9046110240 9046110240 9046110240 9046110240 9161140812 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY2#,3#

 1
87251-95A02

RY2#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95030

RY2#

 1
87245-95028

LY2#,3#

 1
87245B - HOSE, HEATER WATER, INLET B
99552-31000

LY2#,3#

*H,L=840

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95017

RY2#

 1
99552-32000

LY2#,3#

*H,L=1260

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RY2#

 1
87251-95400

RY2#

W/COOLER

 1
87251-30230

LY2#,3#

 1
Common parts
87291-95401
90460-24039
90461-08157
90461-08347
90461-10240
91611-40812
91611-40816
96112-10250
