RY20-JDLHT3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

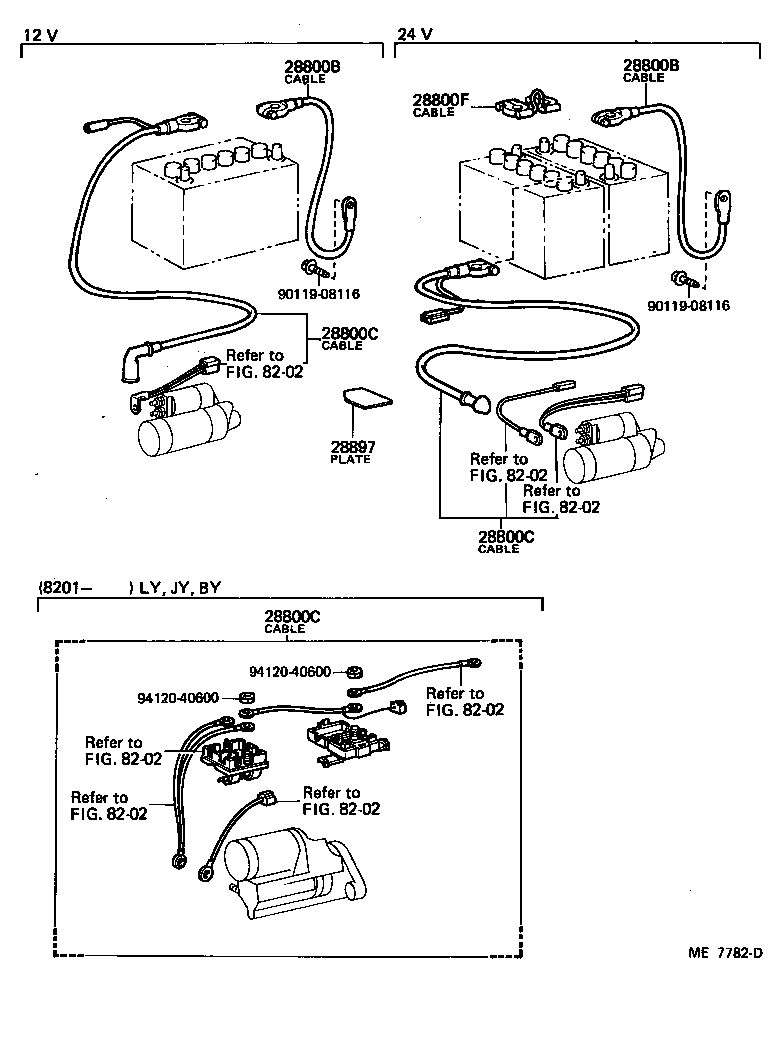

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02166 |
12R..RY20..T1,T2,T3,VP,VT N50 |
1 | ||
| 90982-02166 |
12R..RY2#..T3 N70Z |
1 | ||
| 90982-02165 |
12R..RY2#..WT NS40ZAL |
1 | ||
| 90982-02173 |
12R..RY2#..T2 N70Z |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02166 |
12R..RY20..T1,T2,T3,VP,VT N50 |
1 | ||
| 90982-02166 |
12R..RY2#..T3 N70Z |
1 | ||
| 90982-02165 |
12R..RY2#..WT NS40ZAL |
1 | ||
| 90982-02173 |
12R..RY2#..T2 N70Z |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01269 |
12R..RY20..T3 N70Z |
1 | ||
| 90982-01277 |
12R..RY20..WT N50,N70Z |
1 | ||
| 90982-01278 |
12R..RY2#..T1,T2,T3,VP,VT NS40ZAL |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01269 |
12R..RY20..T3 N70Z |
1 | ||
| 90982-01277 |
12R..RY20..WT N50,N70Z |
1 | ||
| 90982-01278 |
12R..RY2#..T1,T2,T3,VP,VT NS40ZAL |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01269 |
12R..RY20..T3 N70Z |
1 | ||
| 90982-01277 |
12R..RY20..WT N50,N70Z |
1 | ||
| 90982-01278 |
12R..RY2#..T1,T2,T3,VP,VT NS40ZAL |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
| 94120-40600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
