RY20-JDLHT3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )LY2#,3#,RY2#,3#

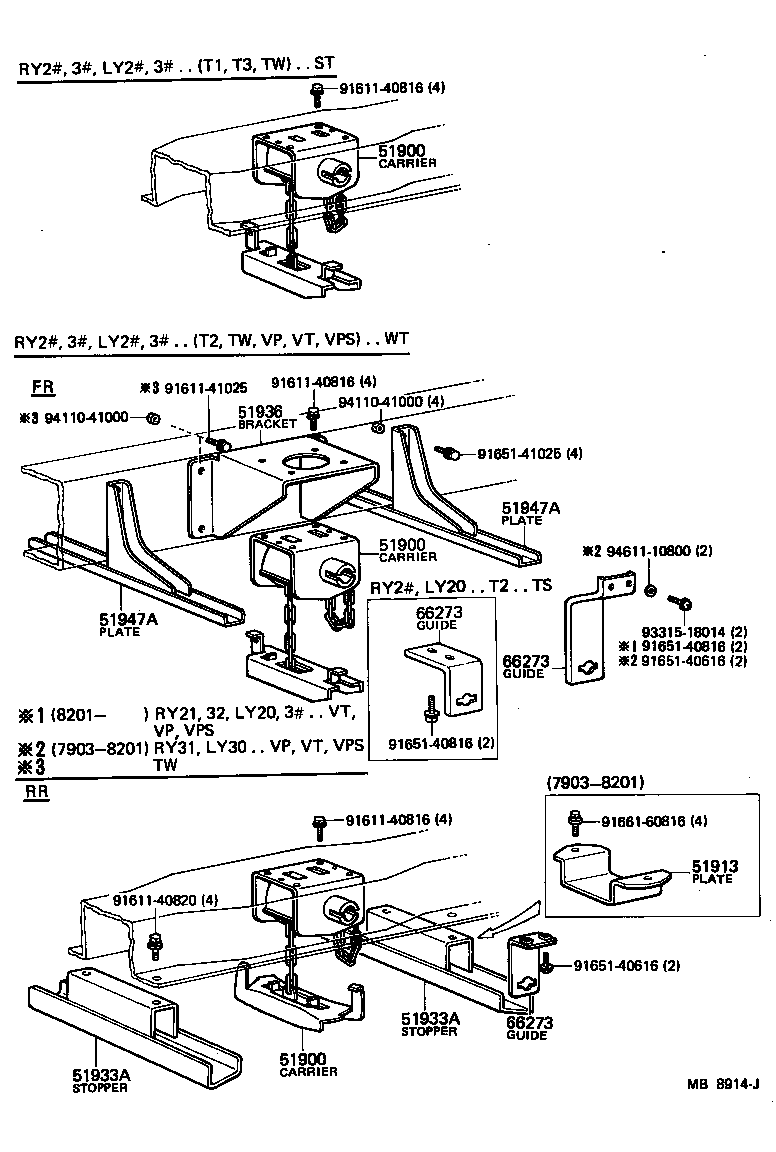

Click highlighted areas on diagram

diagram 51900 51900 51900 51913 51933A 51933A 51936 51947A 51947A 66273 66273 66273 9161140816 9161140816 9161140816 9161140820 9161141025 9165140616 9165140616 9165140816 9165140816 9165141025 9166160816 9331518014 9411041000 9411041000 9461110800
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-25022

LY20,RY20..T3..125

FR=6.00-15-8,RR6.50-15-10

 1
51900-35080

LY20,30,RY20,31..WT

RR

 1
51900-35081

LY20,30,RY20,31..WT

RR

 1
51900-25040

LY20,30,RY20,31..WT

FR

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25022

LY20,RY20..T3..125

FR=6.00-15-8,RR6.50-15-10

 1
51900-35080

LY20,30,RY20,31..WT

RR

 1
51900-35081

LY20,30,RY20,31..WT

RR

 1
51900-25040

LY20,30,RY20,31..WT

FR

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-25022

LY20,RY20..T3..125

FR=6.00-15-8,RR6.50-15-10

 1
51900-35080

LY20,30,RY20,31..WT

RR

 1
51900-35081

LY20,30,RY20,31..WT

RR

 1
51900-25040

LY20,30,RY20,31..WT

FR

 1
51913 - PLATE, SPARE WHEEL CLAMP
51913-25020

LY20,30,RY20,31..WT

 2
51936 - BRACKET, SPARE WHEEL CARRIER
51944-25030

LY2#,3#,RY2#,3#..T2,VP,VPS,VT

 1
51947A - PLATE, SPARE WHEEL CARRIER HINGE
51947-25010

LY2#,3#,RY2#,3#..WT

 2
51947A - PLATE, SPARE WHEEL CARRIER HINGE
51947-25010

LY2#,3#,RY2#,3#..WT

 2
66273 - GUIDE, SPARE TIRE CARRIER
66273-95011

JY30,LY20,30,RY20,31..T2..TS

RR TIRE

 1
66273 - GUIDE, SPARE TIRE CARRIER
66273-95011

JY30,LY20,30,RY20,31..T2..TS

RR TIRE

 1
66273 - GUIDE, SPARE TIRE CARRIER
66273-95011

JY30,LY20,30,RY20,31..T2..TS

RR TIRE

 1
Common parts
91611-40816
91611-40820
91611-41025
91651-40616
91651-40816
91651-41025
91661-60816
93315-18014
94110-41000
94611-10800
