RY20-JDLHT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )LY2#,3#,RY2#,3#..WT

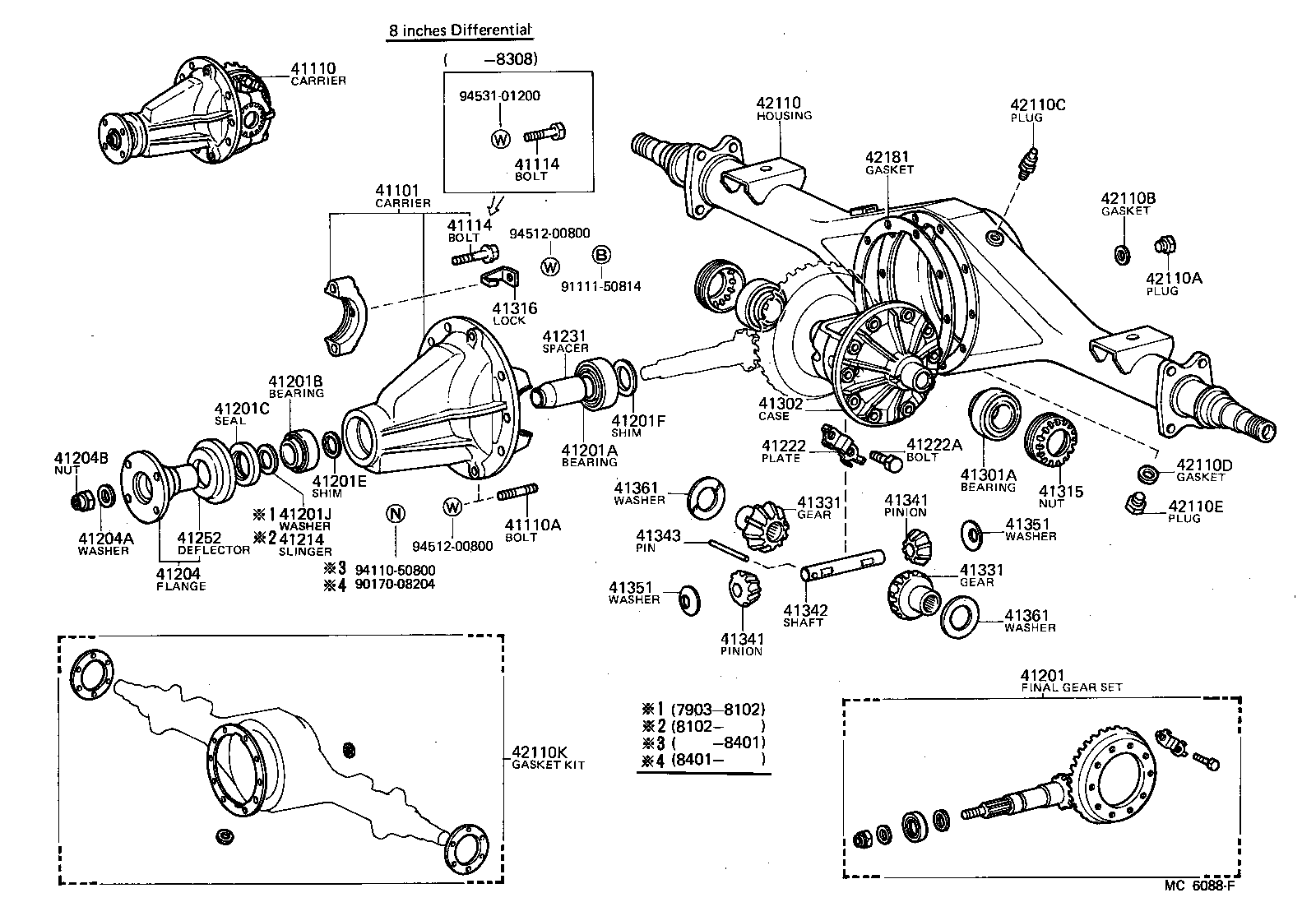

Click highlighted areas on diagram

diagram 41101 41110 41110A 41114 41114 41201 41201A 41201B 41201C 41201E 41201F 41201J 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41302 41315 41316 41331 41331 41341 41341 41342 41343 41351 41351 41361 41361 42110 42110A 42110B 42110C 42110D 42110E 42110K 42181 9017008204 9111150814 9411050800 9451200800 9451200800 9453101200
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-35020

RY2#..WT

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-35032

RY2#..WT

R=39:8=4.875

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08226

LY20,30,RY2#,3#..WT

ﾈｼﾞ部長さ=14 & 14,長さ=42,L=42,S=14&14

 2
90116-08196

LY20,30,RY2#,3#..WT

長さ=34,ﾈｼﾞ部長さ=14,L=34,S=14&14

 8
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12376

LY20,30,RY2#,3#..WT

*12-1.25PX59-25

 4
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12376

LY20,30,RY2#,3#..WT

*12-1.25PX59-25

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-39396

RY2#..WT

R=39:8

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
97609-32307

LY2#,3#,RY2#,3#..WT

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30008

LY2#,3#,RY2#,3#..WT

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38133

LY20,30,RY2#,3#

 1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90564-30035

LY20,30,RY2#,3#

厚さ=0.25,T=0.25

 5
90564-30193

LY20,30,RY2#,3#..WT

T=0.3

 5
90564-30063

LY20,30,RY2#,3#..WT

T=0.45

 5
90564-30194

LY20,30,RY2#,3#..WT

T=0.35

 5
90564-30195

LY20,30,RY2#,3#..WT

T=0.4

 5
41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
90201-35499

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.76,T=1.76

 1
90201-35497

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.70,T=1.70

 1
90201-35502

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.85,T=1.85

 1
90201-35504

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.91,T=1.91

 1
90201-35506

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.97,T=1.97

 1
90201-35503

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.88,T=1.88

 1
90201-35507

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.00,T=2.00

 1
90201-35510

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.09,T=2.09

 1
90201-35514

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.21,T=2.21

 1
90201-35518

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.33,ﾏｰｸ 04,T=2.33

 1
90201-35515

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.24,ﾏｰｸ 01,T=2.24

 1
90201-35501

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.82,T=1.82

 1
90201-35498

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.73,T=1.73

 1
90201-35509

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.06,T=2.06

 1
90201-35511

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.12,T=2.12

 1
90201-35505

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.94,T=1.94

 1
90201-35513

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.18,T=2.18

 1
90201-35516

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.27,ﾏｰｸ 02,T=2.27

 1
90201-35508

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.03,T=2.03

 1
90201-35500

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=1.79,T=1.79

 1
90201-35517

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.30,ﾏｰｸ 03,T=2.30

 1
90201-35512

LY2#,3#,RY2#,3#..WT

外径=47,厚さ=2.15,T=2.15

 1
41201J - WASHER, PLATE (FOR FRONT BEARING FRONT)
90201-28002

LY20,30,RY20,31..WT

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-26011

LY20,30,RY2#

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-20005

LY2#,3#,RY2#,3#

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-20001

LY2#,3#,RY2#,3#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-35020

LY2#,3#,RY2#,3#..WT

 5
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

LY2#,3#,RY2#,3#..WT

 10
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-39010

LY20,30,RY2#,3#..WT

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
37341-30010

LY2#,3#,RY2#,3#

OD=92

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45066

LY2#,3#,RY2#,3#

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-35030

LY20,30,RY2#,3#..WT

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-35010

LY2#,3#,RY2#,3#..WT

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010

LY2#,3#,RY2#,3#

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35010

LY2#,3#,RY2#,3#..WT

N=16

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35010

LY2#,3#,RY2#,3#..WT

N=16

 2
41341 - PINION, REAR DIFFERENTIAL
41341-39020

LY2#,3#,RY2#,3#..WT

N=10

 2
41341 - PINION, REAR DIFFERENTIAL
41341-39020

LY2#,3#,RY2#,3#..WT

N=10

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-39610

LY2#,3#,RY2#,3#..WT

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-06085

LY2#,3#,RY2#,3#..WT

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30051

LY2#,3#,RY2#,3#..WT

T=1.0

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30051

LY2#,3#,RY2#,3#..WT

T=1.0

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.8,T=1.8

 2
41362-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.7,T=1.7

 2
41361-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.6,T=1.6

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.8,T=1.8

 2
41362-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.7,T=1.7

 2
41361-40021

LY2#,3#,RY2#,3#..WT

厚さ=1.6,T=1.6

 2
42110 - HOUSING ASSY, REAR AXLE
42110-25110

LY20,30,RY20,31..WT

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049

BY3#,JY30,LY2#,3#,RY2#,3#

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

LY20,30,RY20,31

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

BY3#,JY30,LY2#,3#,RY2#,3#

 1
42110K - GASKET KIT, DIFFERENTIAL CARRIER
04412-25030

LY2#,3#,RY2#,3#..WT

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-35010

LY2#,3#,RY2#,3#..WT

 1
Common parts
90170-08204
91111-50814
94110-50800
94512-00800
94531-01200
