RY20-JDLHT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R

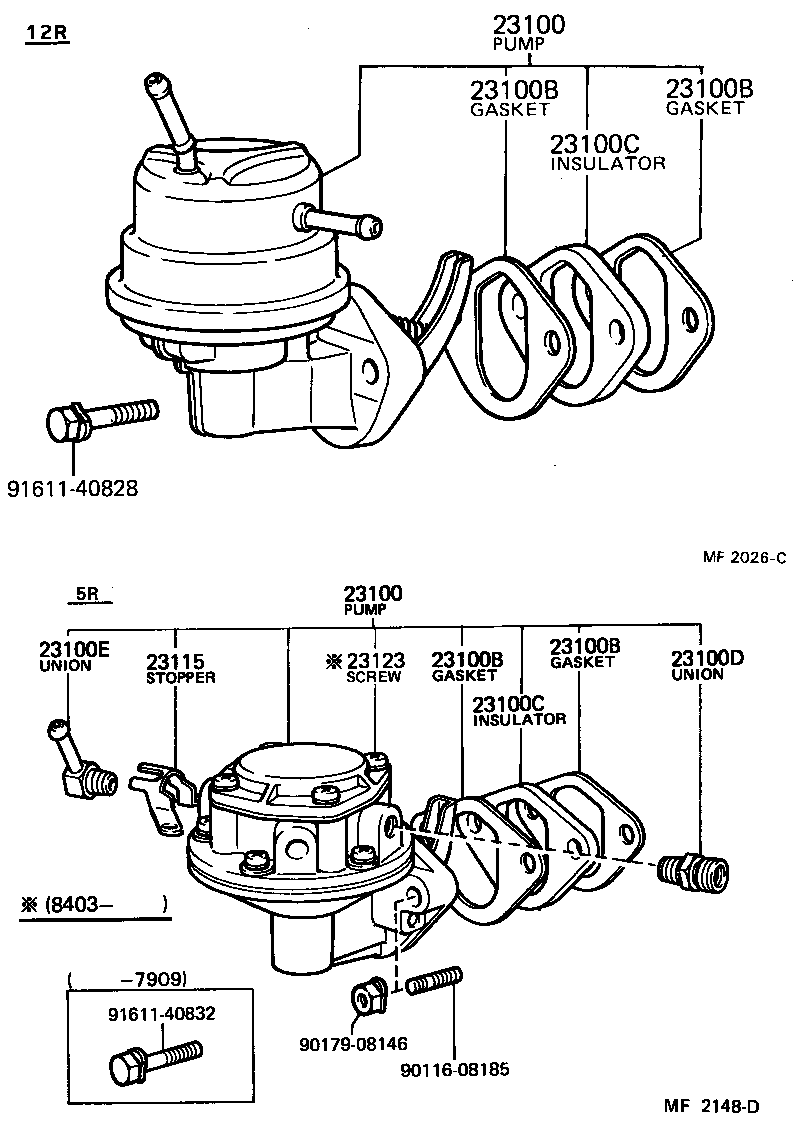

Click highlighted areas on diagram

MF2026C,MF2148D

diagram 23100 23100 23100B 23100B 23100B 23100B 23100C 23100C 23100D 23100E 23115 23123 9011608185 9017908146 9161140828 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39255

12R..RY20

 1
23100 - PUMP ASSY, FUEL
23100-39255

12R..RY20

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY2#,3#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY2#,3#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY2#,3#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY2#,3#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,5R..RY2#,3#

 1
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,5R..RY2#,3#

 1
Common parts
90116-08185
90179-08146
91611-40828
91611-40832
