RY20-JDLHT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )L,2L

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17173 17177 9011910237 9017008184 9017010199 9017908040 9020110283 9161160822 9162160825 9461110800
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R,5R..RY20,31

L=37,S=13&24

 3
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-60825
94611-10800

(7903- )12R

Click highlighted areas on diagram

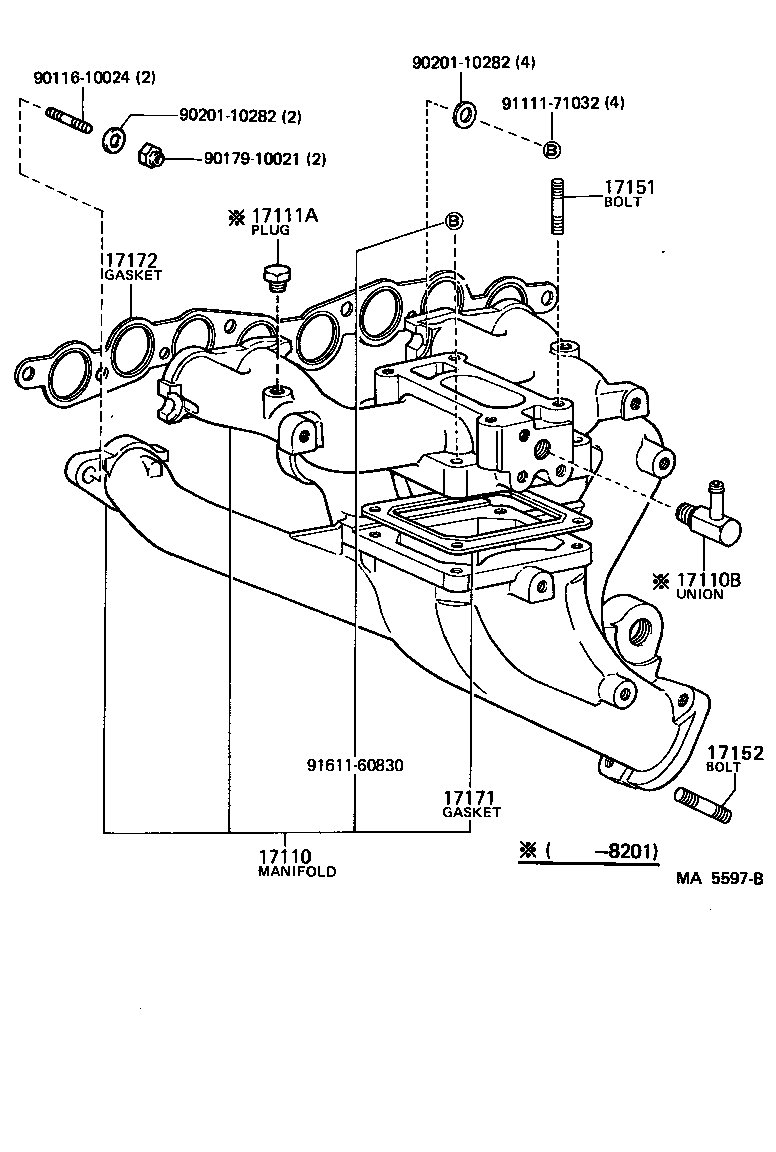

diagram 17110 17110B 17111A 17151 17152 17171 17172 9011610024 9017910021 9020110282 9020110282 9111171032 9161160830
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31090

12R..RY20

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-09002

12R..RY20

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RY2#

L=39,S=13&13

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R,5R..RY20,31

L=37,S=13&24

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-31020

12R..RY2#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12R..RY2#

 1
Common parts
90116-10024
90179-10021
90201-10282
91111-71032
91611-60830

(8009- )B

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910211 9011910346 9017908088 9017908123 9017908123 9161160825 9161160825 9165160816 9418461000
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R,5R..RY20,31

L=37,S=13&24

 3
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12R..RY2#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12R..RY2#

 1
Common parts
90119-10211
90119-10346
90179-08088
90179-08123
91611-60825
91651-60816
94184-61000
