RY20-JDH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)

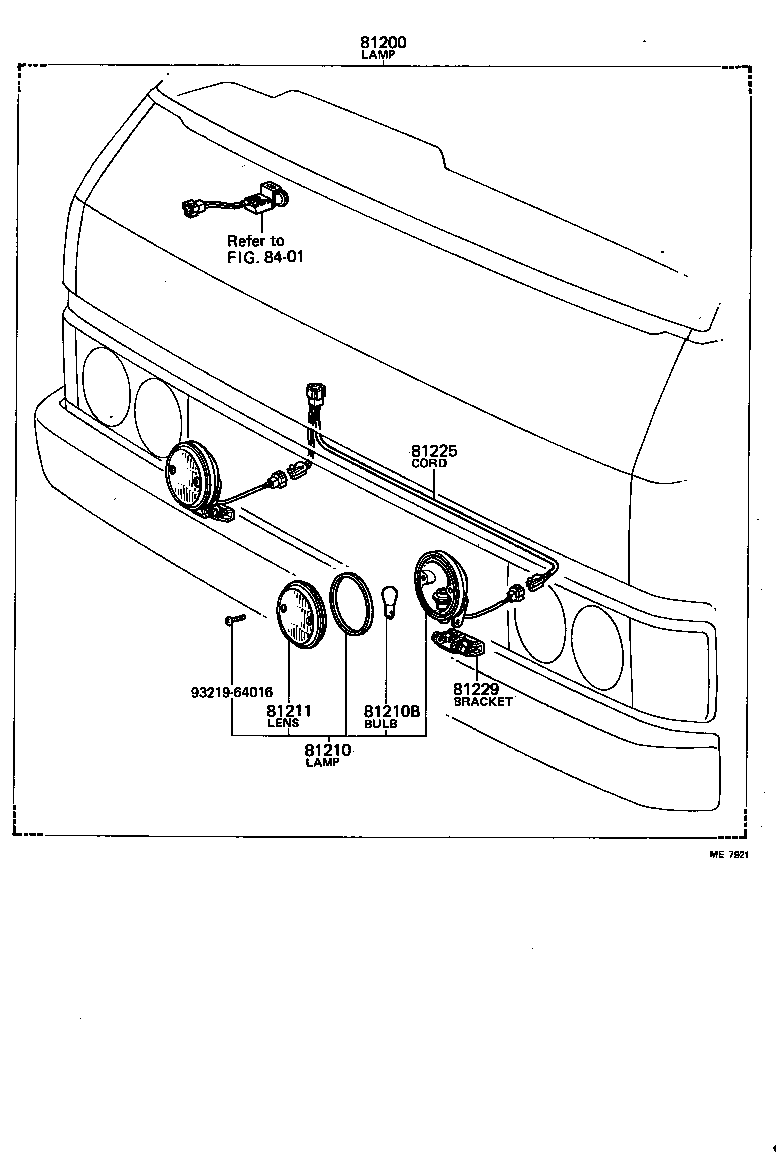

Click highlighted areas on diagram

diagram 81200 81210 81210B 81211 81225 81229 8401 9321964016
Part # Description Qty Price
81200 - LAMP ASSY, FOG
81200-95010

JY30,LY20,30,RY20,31

12V

 1
81210 - LAMP ASSY, FOG
81211-95010

JY30,LY20,30,RY20,31

12V

 2
81210B - BULB, FOG LAMP
99132-11230

JY30,LY20,30,RY20,31

12V 23W,12V 23W

 2
81211 - LENS, FOG LAMP
81212-95010

BY30,JY30,LY20,30,RY20,31

 2
81225 - CORD, FOG LAMP
81215-95010

BY30,JY30,LY20,30,RY20,31

 1
81229 - BRACKET, FOG LAMP
81216-95010

BY30,JY30,LY20,30,RY20,31

 2
Common parts
93219-64016
Linked diagrams
8401
