RY20-JDH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

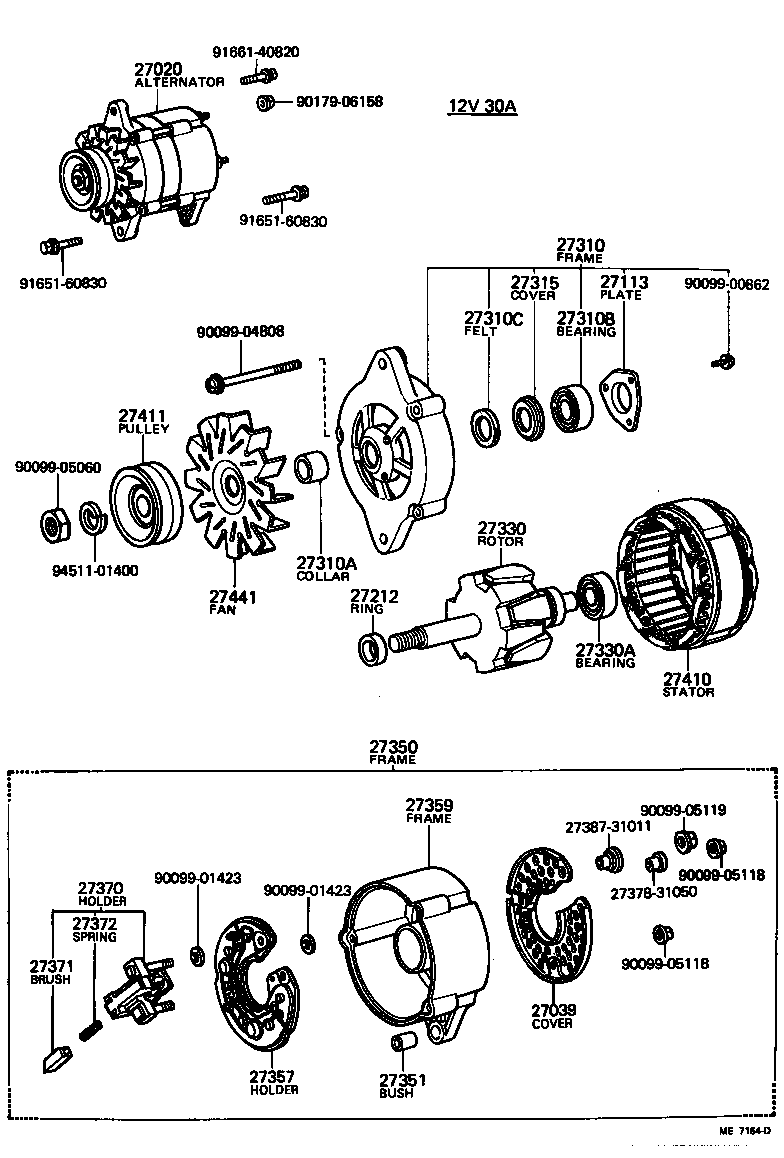

(7903- )12R

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27350 27351 27357 27359 27370 27371 27372 2737831050 2738731011 27410 27411 27441 9009900862 9009901423 9009901423 9009904808 9009905060 9009905118 9009905118 9009905119 9017906158 9165160830 9165160830 9166140820 9451101400
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11014

12R..RY2#

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

12R..RY2#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R..RY2#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R..RY2#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R..RY2#

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R..RY2#

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R..RY2#

12V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

12R..RY2#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R..RY2#

12V 30A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

12R..RY2#

12V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

12R..RY2#

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-24020

12R..RY2#

12V 30A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11014

12R..RY2#

12V 30A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-31090

12R..RY2#

12V 30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31090

12R..RY2#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R..RY2#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R..RY2#

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R..RY2#

12V 30A

 1
Common parts
27378-31050
27387-31011
90099-00862
90099-01423
90099-04808
90099-05060
90099-05118
90099-05119
90179-06158
91651-60830
91661-40820
94511-01400

(7903-8002)12R,5R

Click highlighted areas on diagram

diagram 27020 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27330B 27350 27353 27356 27359 27362 27371 27372 2737845020 2738745022 27410 27411 27441 9009900862 9009902310 9009902310 9009904259 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908127 9017906158 9017906158 9165161030 9165161030 9166140820 9411041000 9451101000 9451101400 9461111001 9461111001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11014

12R..RY2#

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

12R..RY2#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R..RY2#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R..RY2#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R..RY2#

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R..RY2#

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R..RY2#

12V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

12R..RY2#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R..RY2#

12V 30A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

12R..RY2#

12V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

12R..RY2#

12V 30A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-31090

12R..RY2#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R..RY2#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R..RY2#

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R..RY2#

12V 30A

 1
Common parts
27378-45020
27387-45022
90099-00862
90099-02310
90099-04259
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08127
90179-06158
91651-61030
91661-40820
94110-41000
94511-01000
94511-01400
94611-11001

(8002- )12R,5R

Click highlighted areas on diagram

diagram 27020 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27351 27359 27362 27371 27372 2737815030 2737815030 2737838040 2738745022 27410 27411 27441 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908127 9017906158 9017906158 9165160830 9165160830 9166140820 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11014

12R..RY2#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R..RY2#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R..RY2#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R..RY2#

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R..RY2#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R..RY2#

12V 30A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

12R..RY2#

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-24020

12R..RY2#

12V 30A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-31090

12R..RY2#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R..RY2#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R..RY2#

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R..RY2#

12V 30A

 1
Common parts
27378-15030
27378-38040
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08127
90179-06158
91651-60830
91661-40820
94110-41000
94511-01400
94512-01000
94612-11001

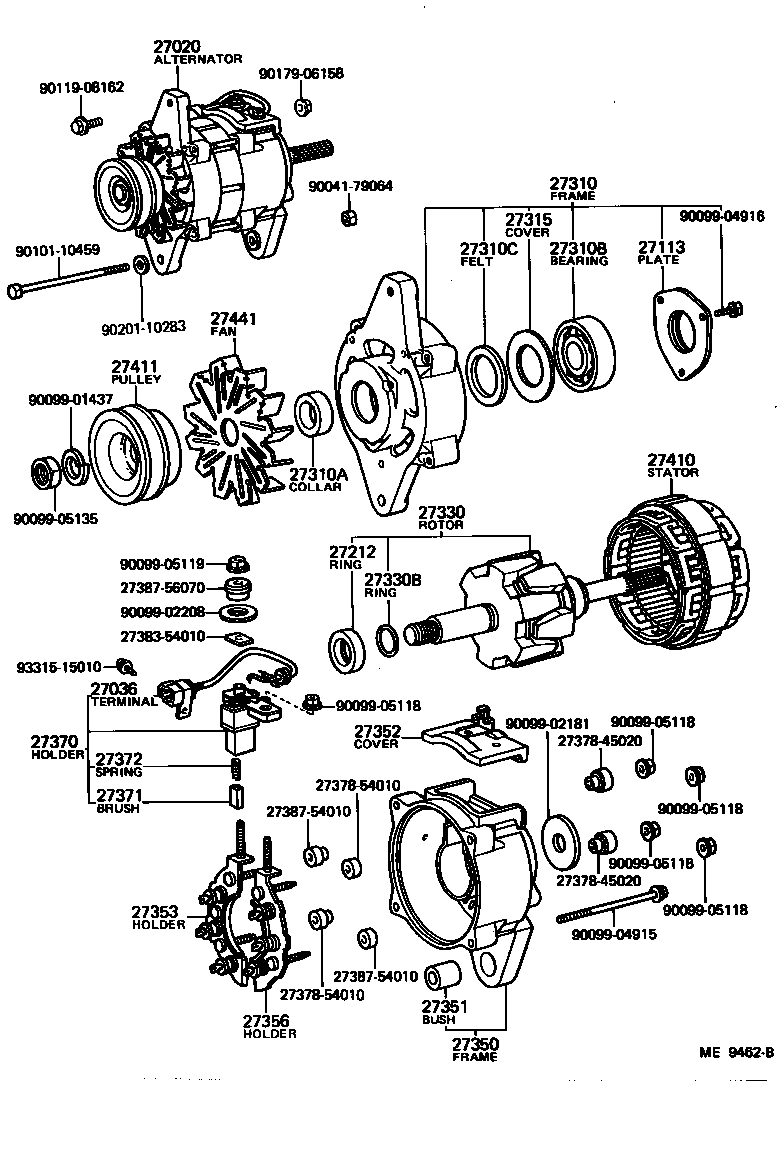

(8009-8201)B

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27351 27352 27353 27356 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738754010 2738754010 2738756070 27410 27411 27441 9004179064 9009901437 9009902181 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9010110459 9011908162 9017906158 9020110283 9331515010
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R..RY2#

12V 30A,12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

12R..RY2#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R..RY2#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R..RY2#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R..RY2#

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R..RY2#

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R..RY2#

12V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

12R..RY2#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R..RY2#

12V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

12R..RY2#

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-24020

12R..RY2#

12V 30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31090

12R..RY2#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12R,2J,5R..JY30,RY2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R..RY2#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R..RY2#

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R..RY2#

12V 30A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90041-79064
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90101-10459
90119-08162
90179-06158
90201-10283
93315-15010
