RY20-JDCT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

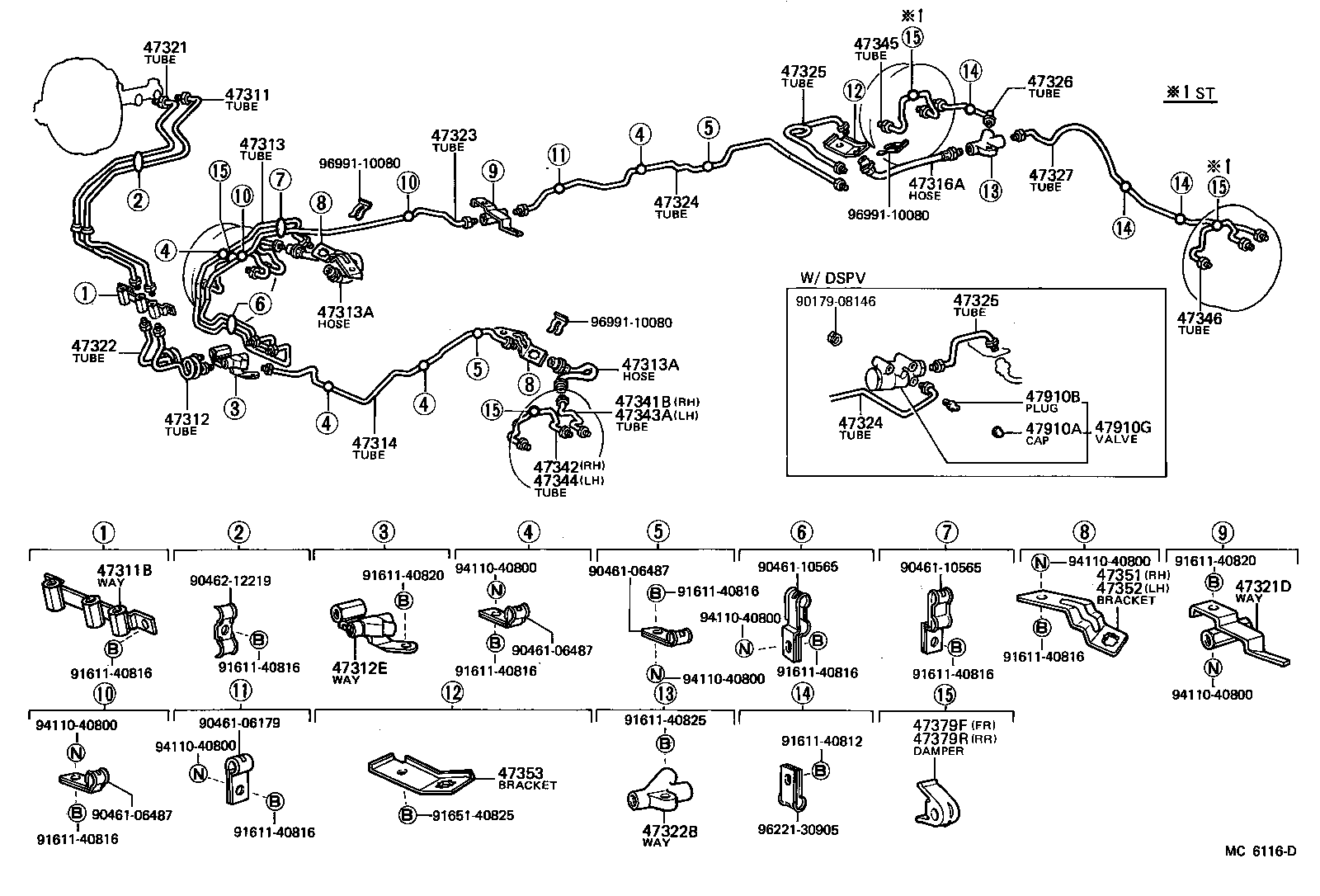

ILLUST NO. 1 OF 2(7903-8201)LY20,30,RY20,31

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47316A 47321 47321D 47322 47322B 47323 47324 47324 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 47351 47352 47353 47379F 47379R 47910A 47910B 47910G 9017908146 9046106179 9046106487 9046106487 9046106487 9046110565 9046110565 9046212219 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140825 9165140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25120

BY30,JY30,LY20,30,RY20,31

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10050

BY3#,JY30,LY2#,3#,RY2#,3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25030

LY20,30,RY2#,3#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

BY30,JY30,LY20,30,RY2#,3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25070

LY20,30,RY2#,3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25100

LY20,30,RY2#,3#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

LY2#,3#,RY2#,3#..WT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25010

BY30,JY30,LY20,30,RY20,31

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10054

LY2#,3#,RY2#,3#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25010

LY20,30,RY2#,3#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY2#,3#,RY2#,3#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25010

LY20,30,RY20,31

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25020

LY20,RY20..WT

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25020

LY20,RY20..WT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25020

LY20,30,RY20,31..WT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25020

LY20,30,RY20,31..WT

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25030

LY20,30,RY2#,3#..WT

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25040

LY2#,3#,RY2#,3#..WT

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-25030

LY2#,3#,RY2#,3#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-25011

LY2#,3#,RY2#,3#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-25020

LY2#,3#,RY2#,3#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-25011

LY2#,3#,RY2#,3#

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25040

LY2#,3#,RY2#,3#..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-25020

LY2#,3#,RY2#,3#..WT

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25030

LY2#,3#,RY2#,3#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25050

LY2#,3#,RY2#,3#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25010

LY2#,3#,RY2#,3#

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-25010

LY2#,3#,RY2#,3#

 2
47910A - CAP, BLEEDER PLUG
31478-30010

JY30..15T;LY20,30,RY20,31..WT

 1
47910B - PLUG, BLEEDER
47547-12010

JY30..15T;LY20,30,RY20,31..WT

 1
47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING
47910-25041

LY2#,3#,RY2#,3#..WT

 1
Common parts
90179-08146
90461-06179
90461-06487
90461-10565
90462-12219
91611-40812
91611-40816
91611-40820
91611-40825
91651-40825
94110-40800
96221-30905
96991-10080
