RY20-JDCT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R

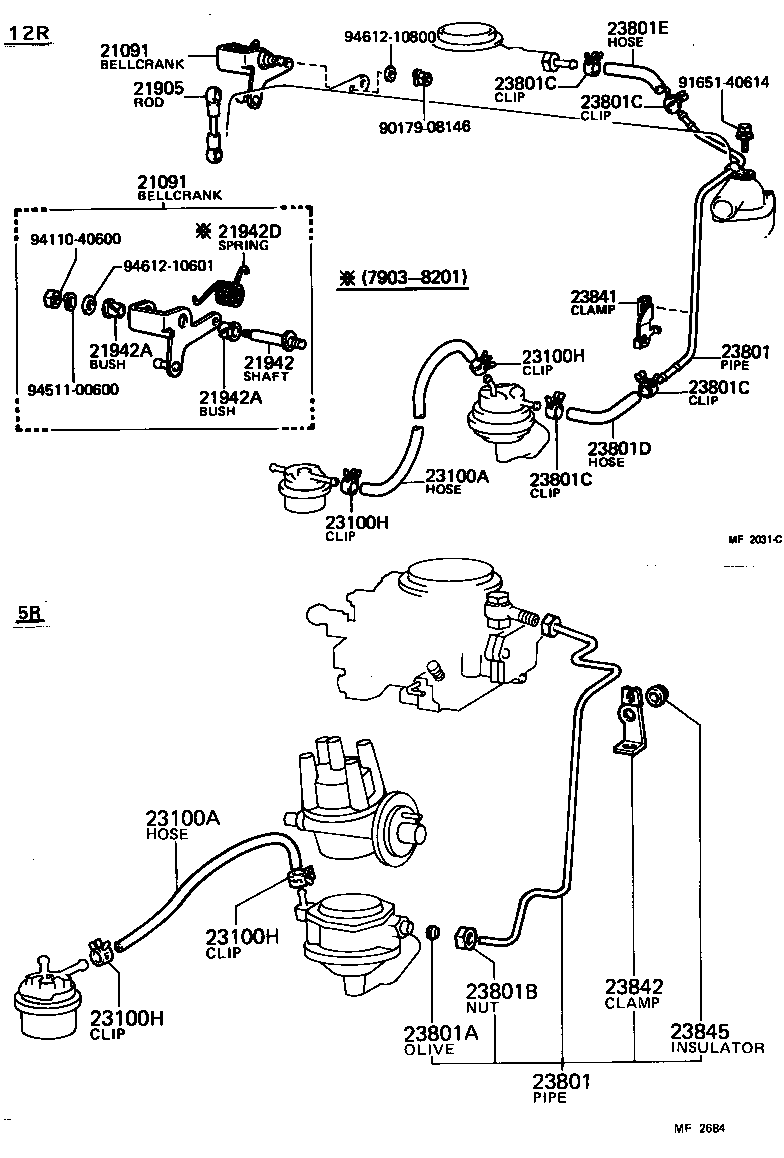

Click highlighted areas on diagram

MF2031C,MF2684

diagram 21091 21091 21905 21942 21942A 21942A 21942D 23100A 23100A 23100H 23100H 23100H 23100H 23801 23801 23801A 23801B 23801C 23801C 23801C 23801C 23801D 23801E 23841 23842 23845 9017908146 9165140614 9411040600 9451100600 9461210601 9461210800
Part # Description Qty Price
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY20

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY20

 1
21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING
78104-20041

12R..RY2#

 1
21942 - SHAFT, ACCELERATOR LINK
21941-31010

12R..RY2#

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY2#

 2
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY2#

 2
21942D - SPRING(FOR ACCELERATOR LINK SHAFT)
90508-20001

12R..RY20

 1
23100A - HOSE, FUEL
95332-06040

12R..RY2#

*H,L=360

 1
23100A - HOSE, FUEL
95332-06040

12R..RY2#

*H,L=360

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY2#,3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY2#,3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY2#,3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY2#,3#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-31061

12R..RY20

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-31061

12R..RY20

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R..RY2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R..RY2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R..RY2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R..RY2#

 4
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

12R..RY2#

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95332-06010

12R..RY2#

*H,L=100

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-31020

12R..RY2#

 1
Common parts
90179-08146
91651-40614
94110-40600
94511-00600
94612-10601
94612-10800
