RY20-JDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

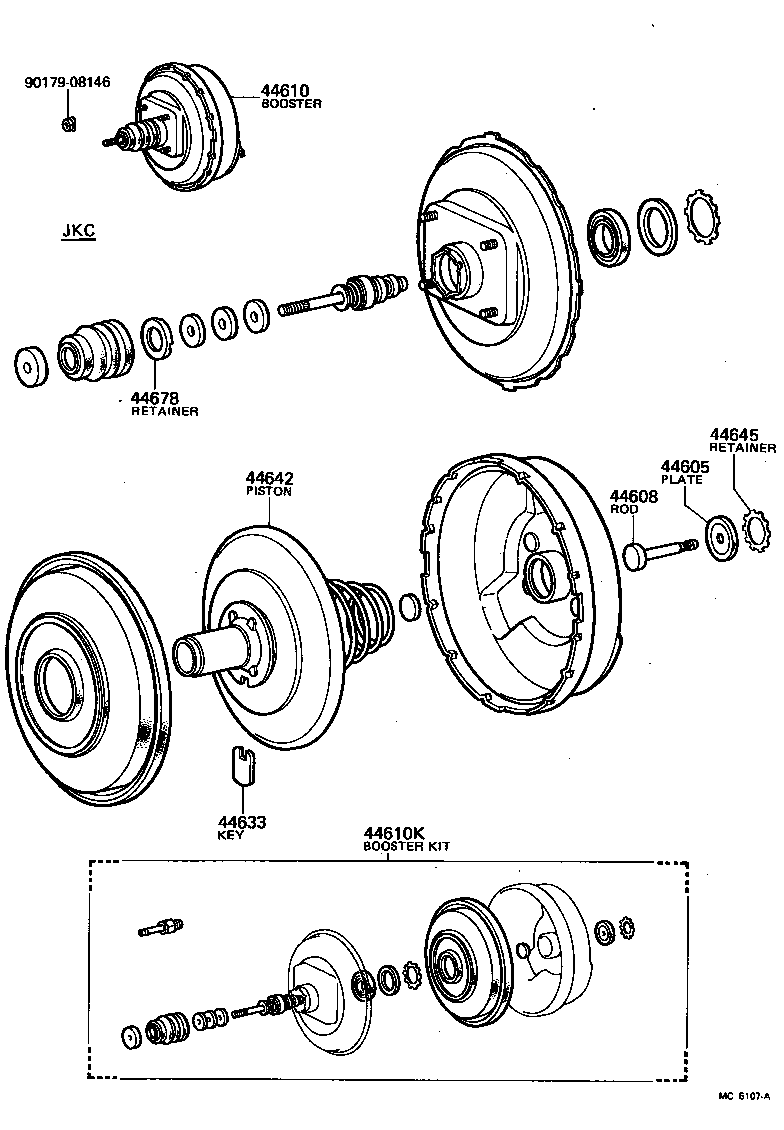

ILLUST NO. 1 OF 2(7903- )LY2#,3#

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 9017908146
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LY2#,3#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

BY3#,JY30,RY2#,3#

 1
44610 - BOOSTER ASSY, BRAKE
44610-25110

RY2#..125;RY2#..TW1

 1
44610K - BOOSTER KIT, BRAKE
04443-25090

RY2#..125;RY2#..TW1

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

LY2#,3#

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

RY2#..125;RY2#..TW1

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

BY3#,JY30,RY2#,3#

 1
44645-22020

LY2#,3#

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

LY2#,3#

 1
Common parts
90179-08146

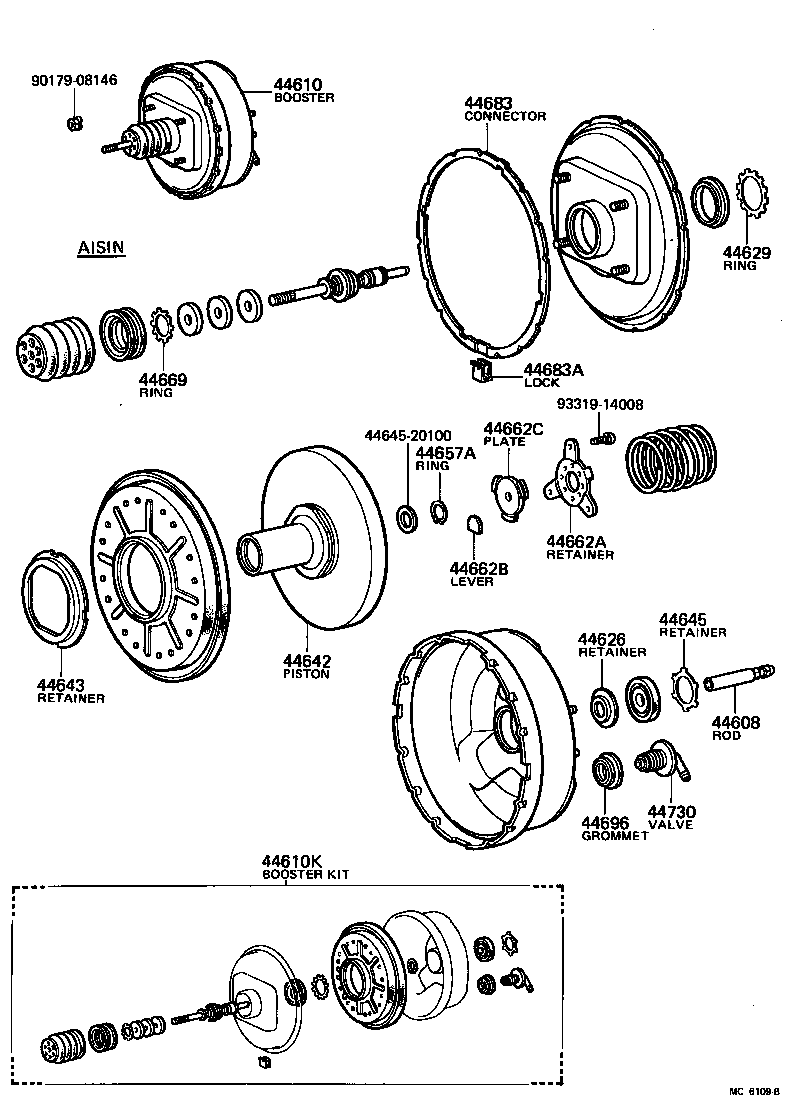

ILLUST NO. 1 OF 2(7903- )RY2#..125 ; (7903- )RY2#..TW1

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44645 4464520100 44657A 44662A 44662B 44662C 44669 44683 44683A 44696 44730 9017908146 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

BY3#,JY30,RY2#,3#

 1
44610 - BOOSTER ASSY, BRAKE
44610-25110

RY2#..125;RY2#..TW1

 1
44610K - BOOSTER KIT, BRAKE
04443-25090

RY2#..125;RY2#..TW1

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

BY3#,JY30,RY2#,3#

 1
44629 - RING, CIRCULAR INTERNAL
44629-30090

BY3#,JY30,RY2#,3#

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

RY2#..125;RY2#..TW1

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

BY3#,JY30,RY2#,3#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

BY3#,JY30,RY2#,3#

 1
44645-22020

LY2#,3#

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

BY3#,JY30,RY2#,3#

 1
44662A - RETAINER, REACTION, NO.2
44662-35100

RY2#..125;RY2#..TW1

 1
44662B - LEVER, REACTION
44661-35100

BY3#,JY30,RY2#,3#

 3
44662C - PLATE, REACTION, NO.1
44607-25110

RY2#..125;RY2#..TW1

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

BY3#,JY30,RY2#,3#

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

RY2#..125;RY2#..TW1

 1
44683A - LOCK, CONNECTOR
44683-20100

RY2#..125;RY2#..TW1

 1
44696 - GROMMET, CHECK VALVE
90480-24439

RY2#,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BY3#,JY30,LY2#,3#

 1
44730-20060

RY2#,3#

 1
Common parts
44645-20100
90179-08146
93319-14008

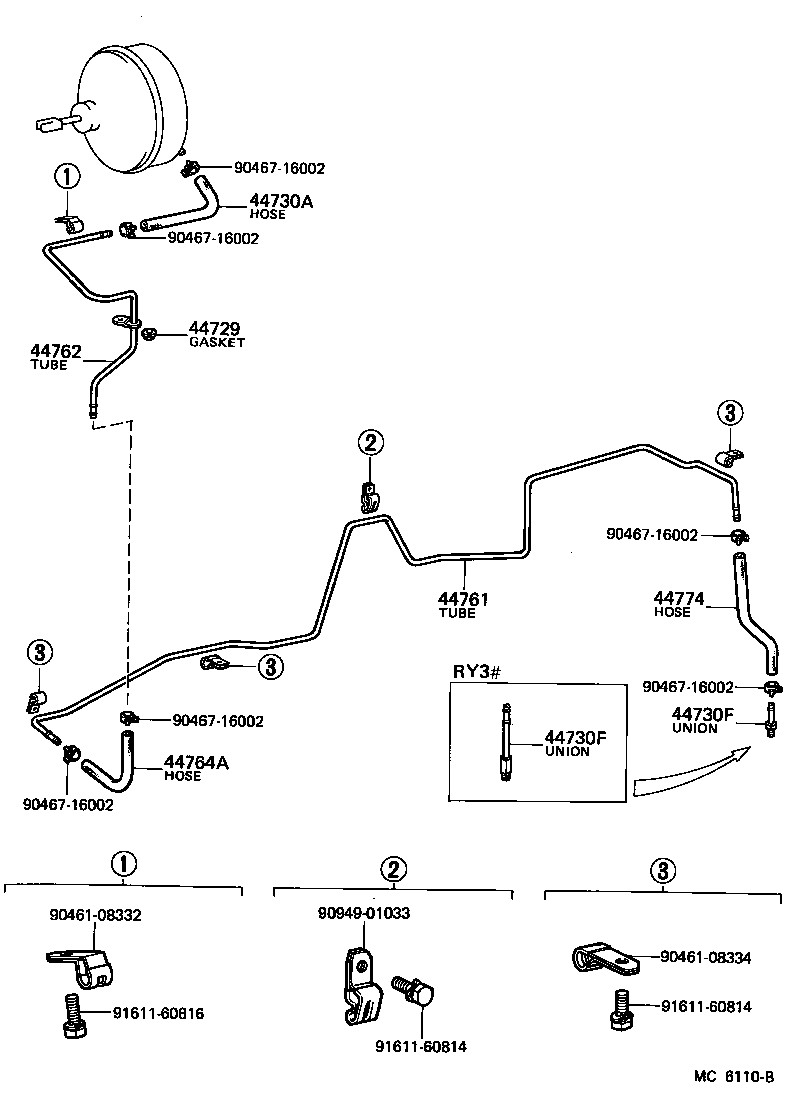

ILLUST NO. 2 OF 2(7903- )RY2#,3#

Click highlighted areas on diagram

diagram 44729 44730A 44730F 44730F 44761 44762 44764A 44774 9046108332 9046108334 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9161160816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RY2#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RY2#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764-25040

RY2#,3#

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44764A - HOSE, BOOSTER VACUUM
90445-17927

RY2#,3#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25010

RY2#

 1
44774-25021

LY2#,3#

 1
Common parts
90461-08332
90461-08334
90467-16002
90949-01033
91611-60814
91611-60816
