RY20-JDBH (1979)
Toyota Toyoace

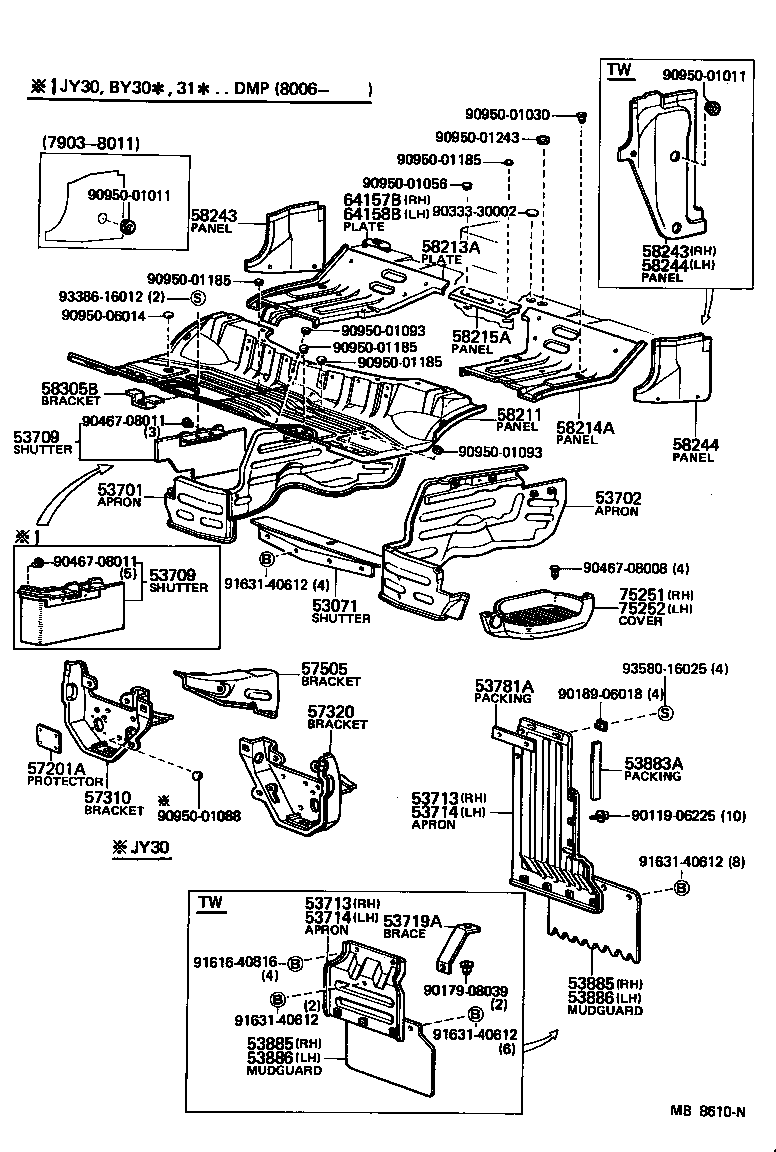

ILLUST NO. 1 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53071 - SHUTTER SUB-ASSY, HOT AIR, UPPER | ||||
| 53071-95010 |
JY30,LY20,30,RY20,31 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95016 |
BY30,JY30,RY2#,3# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95015 |
BY30,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 53709 - SHUTTER SUB-ASSY, CONTROL LINK | ||||
| 53709-95010 |
LY30..ST;LY20,RY20,31;LY30..T2,VP,VPS,VT |
1 | ||
| 53709 - SHUTTER SUB-ASSY, CONTROL LINK | ||||
| 53709-95010 |
LY30..ST;LY20,RY20,31;LY30..T2,VP,VPS,VT |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53703-95013 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53703-95013 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53704-95015 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53704-95015 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53781A - PACKING, FRAME BACK | ||||
| 53781-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
2 | ||
| 53883A - PACKING, FRONT MUDGUARD, UPPER | ||||
| 53879-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
2 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95010 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 57310 - BRACKET ASSY, FRONT MOUNTING, RH | ||||
| 57310-95018 |
LY20,30,RY20,31 |
1 | ||
| 57320 - BRACKET ASSY, FRONT MOUNTING, LH | ||||
| 57320-95012 |
BY30,LY20,30,RY20,31 |
1 | ||
| 57505 - BRACKET SUB-ASSY, PARKING BRAKE, NO.1 | ||||
| 57505-95014 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58211-95051 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 58211-95042 |
JY30,LY20,30,RY20,31 |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58204-95016 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95015 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58243 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58243-95010 |
BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 58243 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58243-95010 |
BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 58244 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58244-95010 |
BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 58244 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58244-95010 |
BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 58305B - BRACKET ASSY, HEATER HOSE | ||||
| 58305-95600 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 75251 - COVER, STEP PLATE FRONT, RH | ||||
| 51771-95015 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 75252 - COVER, STEP PLATE FRONT, LH | ||||
| 51772-95016 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90119-06225 | ||||
| 90179-08039 | ||||
| 90189-06018 | ||||
| 90333-30002 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90950-01011 | ||||
| 90950-01030 | ||||
| 90950-01056 | ||||
| 90950-01088 | ||||
| 90950-01093 | ||||
| 90950-01185 | ||||
| 90950-01243 | ||||
| 90950-06014 | ||||
| 91616-40816 | ||||
| 91631-40612 | ||||
| 93386-16012 | ||||
| 93580-16025 | ||||

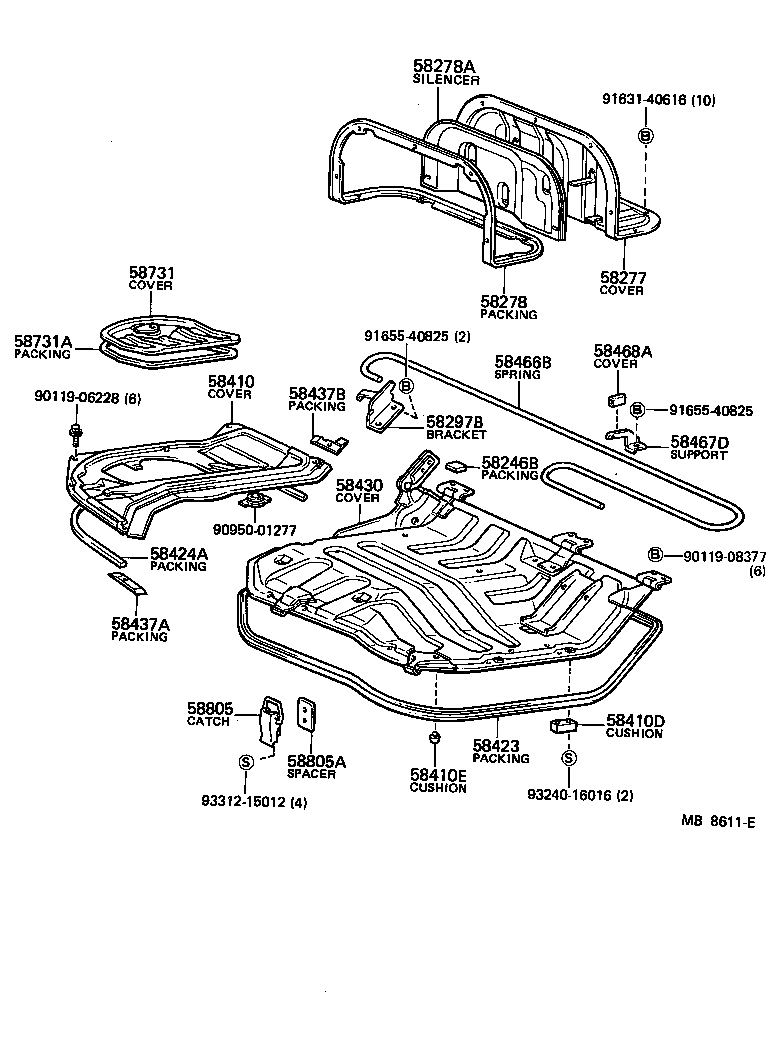

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-95016 |
RY20,31 |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 58445-95400 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09126 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 58423 - PACKING, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58435-95405 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58414-95011 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE | ||||
| 58403-95012 |
JY30,LY20,30,RY20,31 |
1 | ||
| 58403-95017 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58423-95011 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58424-95012 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 58731 - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58404-95011 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 58731A - PACKING, INSPECTION HOLE COVER | ||||
| 58445-95010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 71901-95407 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| 58805A - SPACER, ENGINE COVER CATCH | ||||
| 71919-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| Common parts | ||||
| 90119-06228 | ||||
| 90119-08377 | ||||
| 90950-01277 | ||||
| 91631-40616 | ||||
| 91655-40825 | ||||
| 93240-16016 | ||||
| 93312-15012 | ||||
