RY20-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

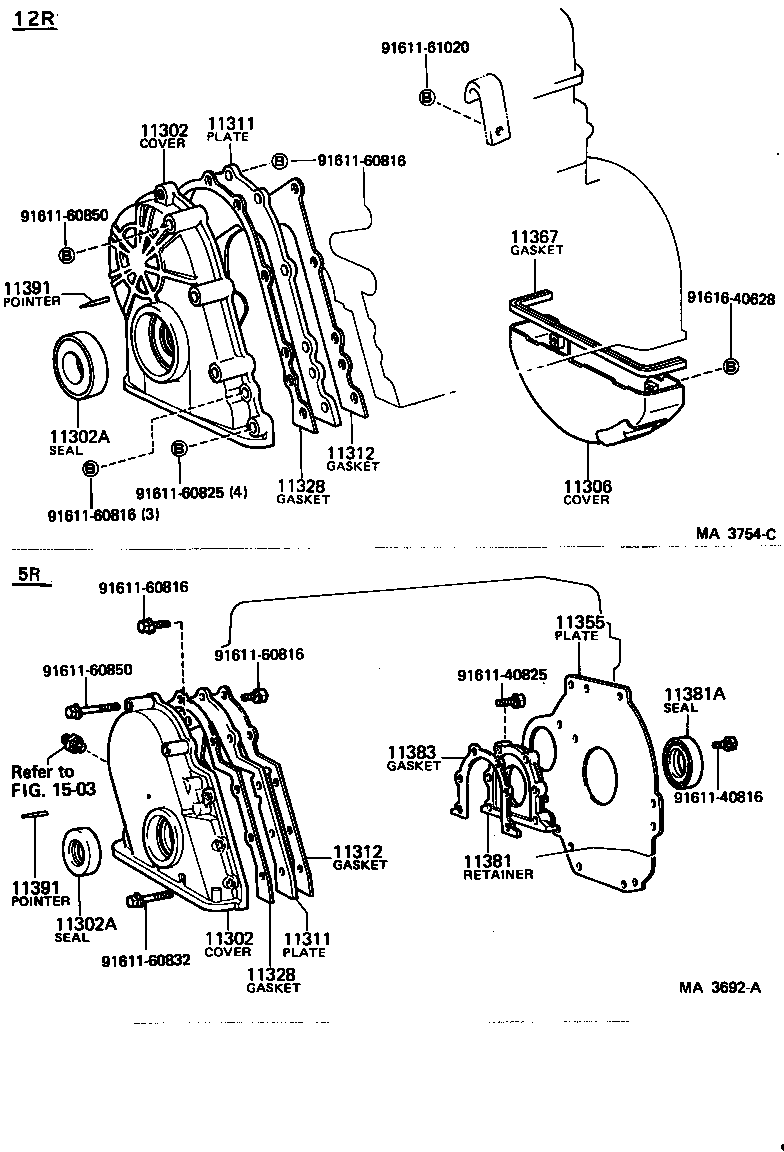

(7903- )12R,5R

Click highlighted areas on diagram

MA3754C,MA3692A

diagram 11302 11302 11302A 11302A 11306 11311 11311 11312 11312 11328 11328 11355 11367 11381 11381A 11383 11391 11391 1503 9161140816 9161140825 9161160816 9161160816 9161160816 9161160816 9161160825 9161160832 9161160850 9161160850 9161161020 9161640628
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R..RY2#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R..RY2#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

12R..RY2#

HTC3 38.5 58 11

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

12R..RY2#

HTC3 38.5 58 11

 1
11306 - COVER SUB-ASSY, FLYWHEEL HOUSING UNDER
11306-31030

12R..RY2#

 1
11311 - PLATE, FRONT END
11311-31010

12R..RY2#

 1
11311 - PLATE, FRONT END
11311-31010

12R..RY2#

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R..RY2#

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R..RY2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R..RY2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R..RY2#

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-31020

12R..RY2#

 1
11391 - POINTER, TIMING
11391-31021

12R..RY2#

 1
11391 - POINTER, TIMING
11391-31021

12R..RY2#

 1
Common parts
91611-40816
91611-40825
91611-60816
91611-60825
91611-60832
91611-60850
91611-61020
91616-40628
Linked diagrams
1503

ILLUST NO. 1 OF 2(8009- )B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9161160814 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R..RY2#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

12R..RY2#

HTC3 38.5 58 11

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R..RY2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R..RY2#

 1
11391 - POINTER, TIMING
11391-31021

12R..RY2#

 1
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501

ILLUST NO. 2 OF 2(8009- )B

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161160840 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-60840
91611-61060
