LY31-QDP3 (1983)
Toyota Toyoace
Production
Aug 1983
-
Jul 1985
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )LY21,31

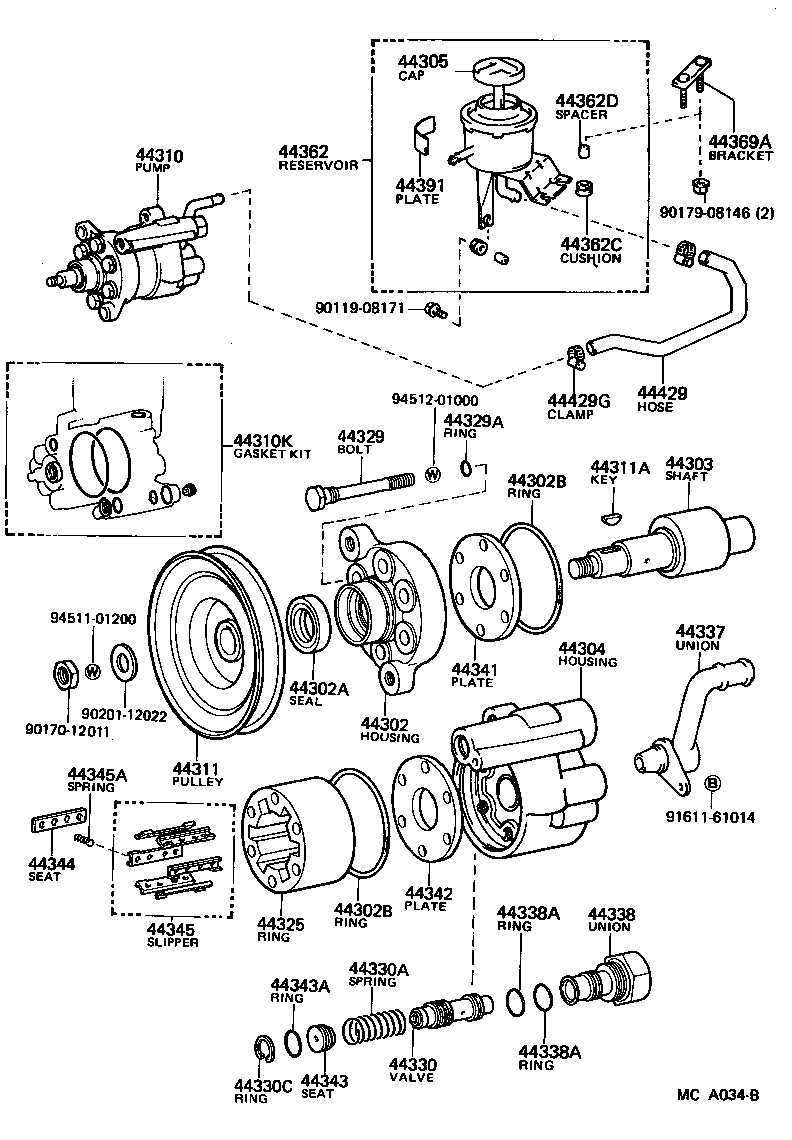

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
LY21,31 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-21002 |
LY21,31 |
1 | ||
| 90310-21034 |
LY21,31 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
LY21,31 |
2 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
LY21,31 |
2 | ||
| 44303 - SHAFT SUB-ASSY, W/ROTOR | ||||
| 44303-22011 |
LY21,31 L=39.9750-39.9775,NO MARK |
1 | ||
| 44303-22021 |
LY21,31 L=39.9725-39.9750,MARK 2 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-30040 |
LY21,31 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
LY21,31 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-25020 |
LY21,31 |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-25010 |
LY21,31 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30040 |
LY21,31 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
LY21,31 |
1 | ||
| 44325 - RING, FIXED(FOR VANE PUMP) | ||||
| 44325-30030 |
LY21,31 ﾏｰｸ 1,NO MARK |
1 | ||
| 44325-30040 |
LY21,31 ﾏｰｸ 2,MARK 2 |
1 | ||
| 44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET | ||||
| 44329-30010 |
LY21,31 L=76.5 |
1 | ||
| 44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96711-19007 |
LY21,31 |
6 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30071 |
LY21,31 |
1 | ||
| 44330-30061 |
LY21,31 |
1 | ||
| 44330-30081 |
LY21,31 |
1 | ||
| 44330-30091 |
LY21,31 |
1 | ||
| 44330-30051 |
LY21,31 |
1 | ||
| 44330-30041 |
LY21,31 |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
LY21,31 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
LY21,31 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-35020 |
LY21,31 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-25010 |
LY21,31 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
LY21,31 外径=17.0,内径=13.0 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
LY21,31 外径=17.0,内径=13.0 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30020 |
LY21,31 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
LY21,31 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
LY21,31 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
LY21,31 |
1 | ||
| 44344 - SEAT, SPRING(FOR VANE PUMP) | ||||
| 44344-30010 |
LY21,31 |
6 | ||
| 44345 - SLIPPER, VANE PUMP | ||||
| 44307-22020 |
LY21,31 ﾏｰｸ無し,L=39.937-39.932,RING MARK 2 |
1 | ||
| 44307-22010 |
LY21,31 ﾏｰｸ無し,L=39.942-39.937,RING NO MARK |
1 | ||
| 44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
LY21,31 |
24 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-25010 |
LY21,31 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90387-10040 |
LY21,31 |
1 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90480-16005 |
LY21,31 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-25010 |
LY21,31 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
LY21,31 |
1 | ||
| 44429 - HOSE, RESERVOIR TO OIL PUMP | ||||
| 44348-25010 |
LY21,31 |
1 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
LY21,31 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90170-12011 | ||||
| 90179-08146 | ||||
| 90201-12022 | ||||
| 91611-61014 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||
