LY31-QDP (1983)
Toyota Toyoace

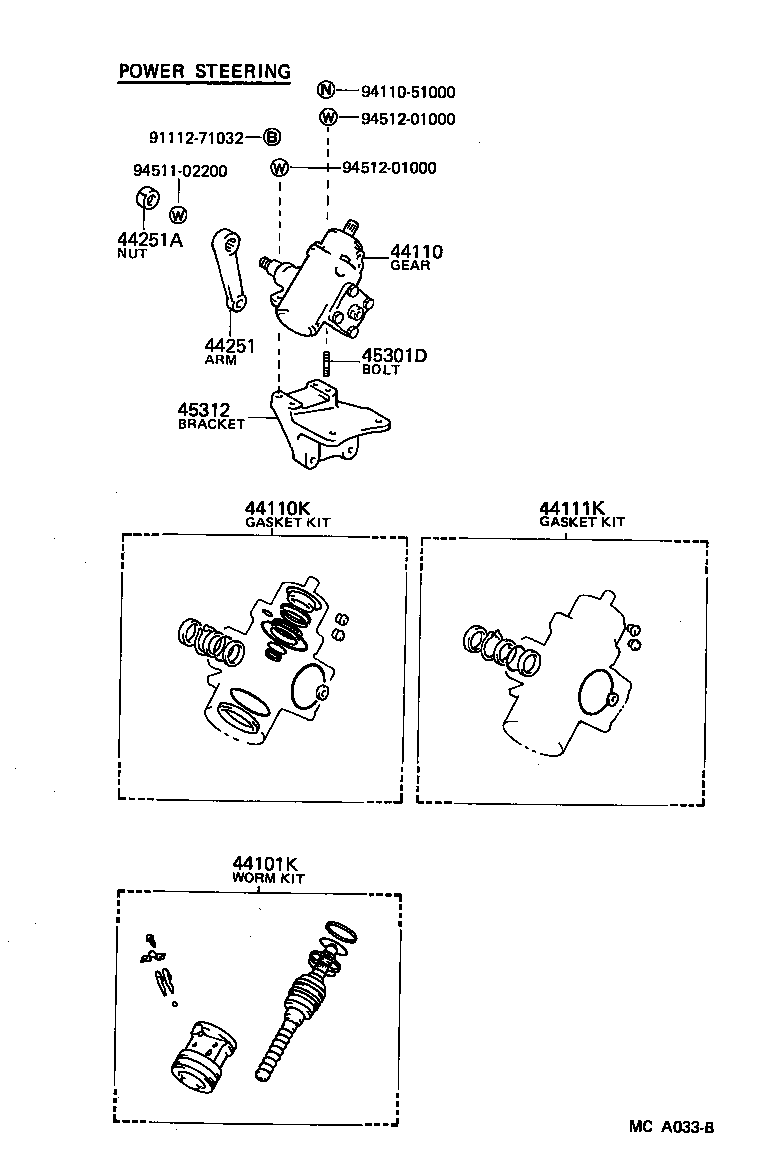

ILLUST NO. 2 OF 3(8308- )LY21,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-25010 |
LY21,31 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-25020 |
LY21,31 |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-25030 |
LY21,31 |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-35020 |
LY21,31 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-25130 |
LY21,31 |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
LY21,31 |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10101 |
JY30;BY3#,LY2#,3#,RY2#,3#..TR |
2 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25090 |
LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||

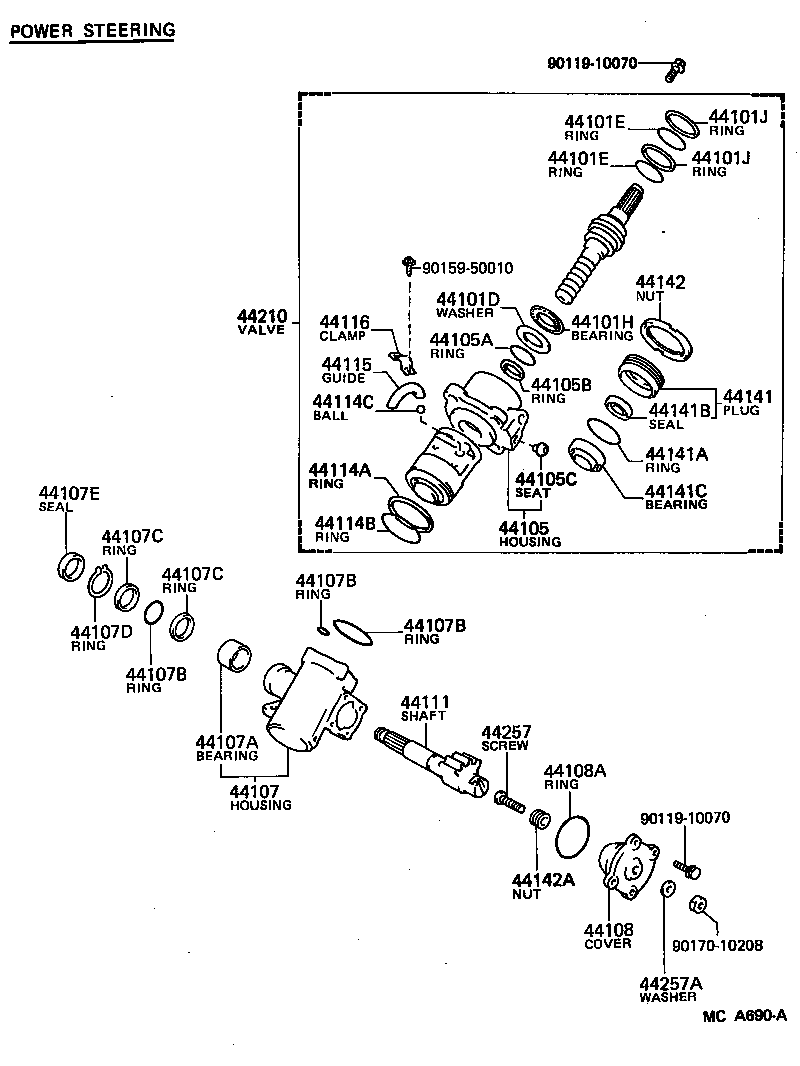

ILLUST NO. 3 OF 3(8308- )LY21,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
LY21,31 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LY21,31 |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LY21,31 |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
LY21,31 |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LY21,31 |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LY21,31 |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
LY21,31 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
LY21,31 |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
LY21,31 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LY21,31 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-25010 |
LY21,31 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LY21,31 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
LY21,31 外径=43.4,ID=35.4 |
1 | ||
| 90301-65145 |
LY21,31 内径=65.0,外径=70.0,ID=65 |
1 | ||
| 96711-19010 |
LY21,31 外径=13.6,内径=9.8,ID=9.8 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
LY21,31 外径=43.4,ID=35.4 |
1 | ||
| 90301-65145 |
LY21,31 内径=65.0,外径=70.0,ID=65 |
1 | ||
| 96711-19010 |
LY21,31 外径=13.6,内径=9.8,ID=9.8 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
LY21,31 外径=43.4,ID=35.4 |
1 | ||
| 90301-65145 |
LY21,31 内径=65.0,外径=70.0,ID=65 |
1 | ||
| 96711-19010 |
LY21,31 外径=13.6,内径=9.8,ID=9.8 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
LY21,31 外径=35.7,T=5 |
1 | ||
| 90562-32001 |
LY21,31 内径=32,外径=42,T=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
LY21,31 外径=35.7,T=5 |
1 | ||
| 90562-32001 |
LY21,31 内径=32,外径=42,T=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LY21,31 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
LY21,31 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LY21,31 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LY21,31 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-25010 |
LY21,31 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
LY21,31 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
LY21,31 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
LY21,31 |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60010 |
LY21,31 |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60010 |
LY21,31 |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
LY21,31 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
LY21,31 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
LY21,31 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
LY21,31 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
LY21,31 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LY21,31 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-25010 |
LY21,31 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
LY21,31 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LY21,31 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
