LY30-QDP3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

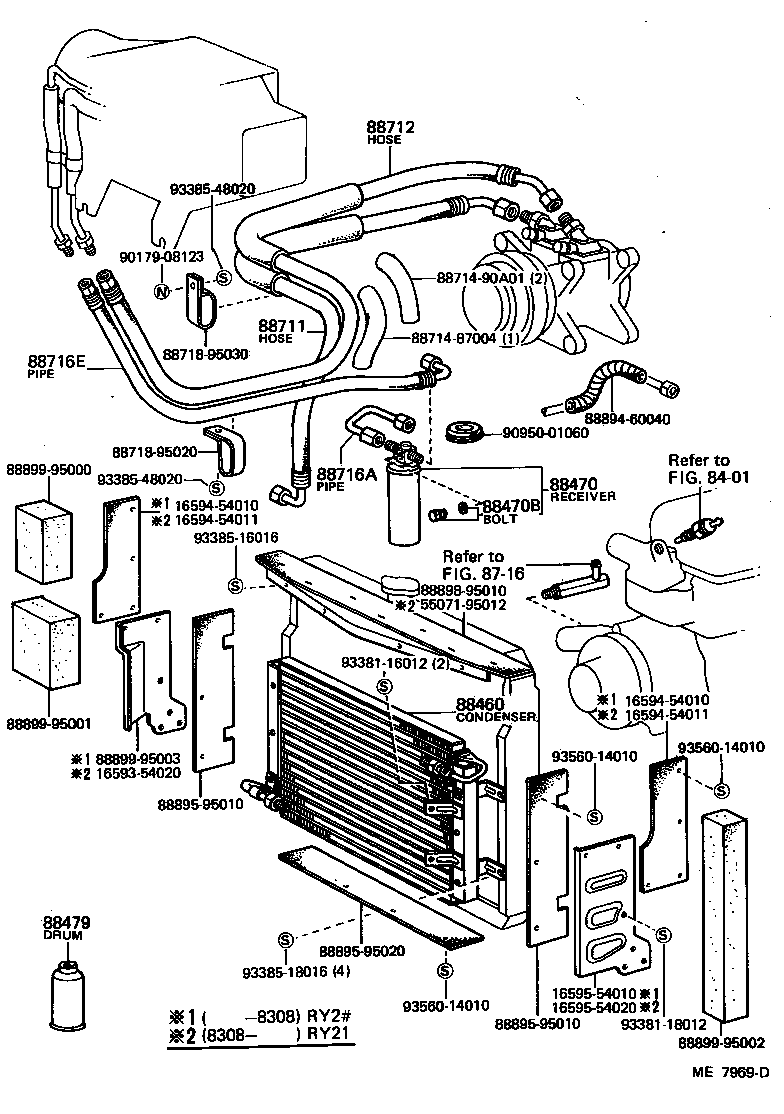

(7903- )RY2#,3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95010 |
JY30,LY20,30,RY2#,3# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
BY3#,JY30,LY20,30,RY2#,3# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BY31,JY30,LY2#,3#,RY2#,3# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95020 |
LY20,30 |
1 | ||
| 88711-95000 |
RY2#,3# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95000 |
RY2#,3# |
1 | ||
| 88712-60030 |
LY20,30 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95010 |
JY30,LY20,30,RY2#,3# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88721-87301 |
JY30,LY20,30,RY2#,3# |
1 | ||
| Common parts | ||||
| 16593-54020 | ||||
| 16594-54010 | ||||
| 16594-54011 | ||||
| 16595-54010 | ||||
| 16595-54020 | ||||
| 55071-95012 | ||||
| 83560-14010 | ||||
| 88714-87004 | ||||
| 88714-90A01 | ||||
| 88718-95020 | ||||
| 88718-95030 | ||||
| 88894-60040 | ||||
| 88895-95010 | ||||
| 88895-95020 | ||||
| 88898-95010 | ||||
| 88899-95000 | ||||
| 88899-95001 | ||||
| 88899-95002 | ||||
| 88899-95003 | ||||
| 90179-08123 | ||||
| 90950-01060 | ||||
| 93381-16012 | ||||
| 93381-18012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-48020 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
(7903- )LY20,30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95010 |
JY30,LY20,30,RY2#,3# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
BY3#,JY30,LY20,30,RY2#,3# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BY31,JY30,LY2#,3#,RY2#,3# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95020 |
LY20,30 |
1 | ||
| 88711-95000 |
RY2#,3# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95000 |
RY2#,3# |
1 | ||
| 88712-60030 |
LY20,30 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95010 |
JY30,LY20,30,RY2#,3# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88721-87301 |
JY30,LY20,30,RY2#,3# |
1 | ||
| Common parts | ||||
| 88714-87004 | ||||
| 88714-90A01 | ||||
| 88718-95020 | ||||
| 88718-95030 | ||||
| 88895-95010 | ||||
| 88895-95020 | ||||
| 88899-95000 | ||||
| 88899-95001 | ||||
| 88899-95002 | ||||
| 88899-95003 | ||||
| 90463-15454 | ||||
| 90950-01060 | ||||
| 93381-48012 | ||||
| 93385-48016 | ||||
| 93385-48020 | ||||
| 93560-14010 | ||||
| 94110-40800 | ||||
