LY30-QDP3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )TW

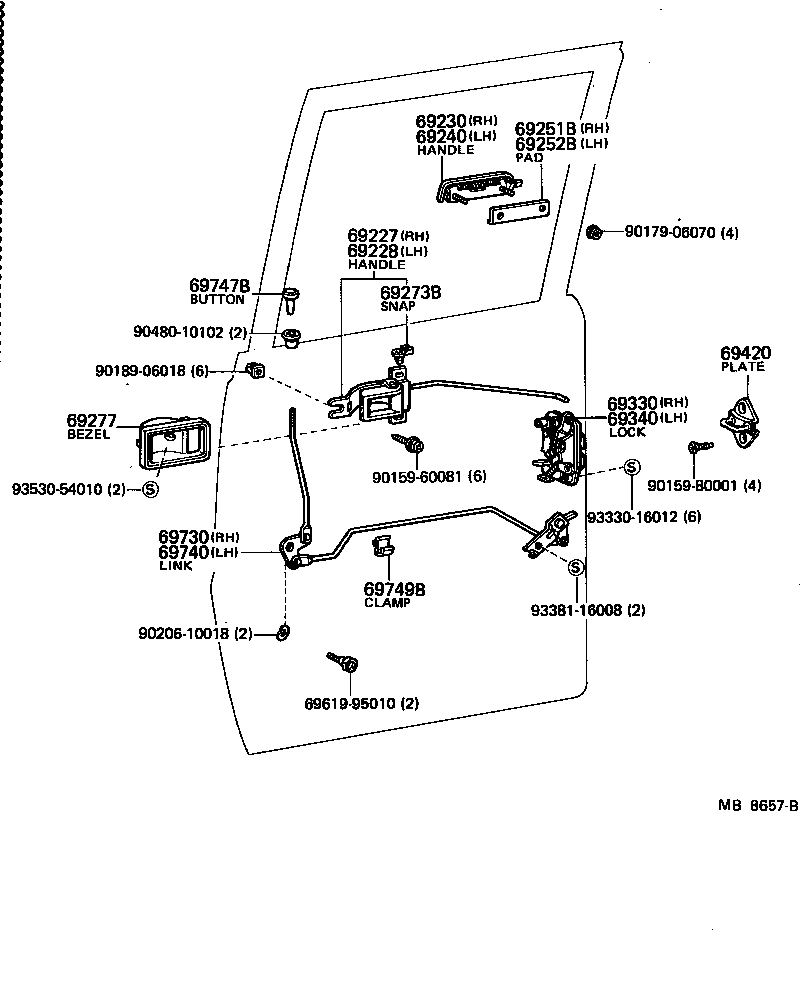

Click highlighted areas on diagram

diagram 69227 69228 69230 69240 69251B 69252B 69273B 69277 69330 69340 69420 6961995010 69730 69740 69747B 69749B 9015960081 9015980001 9017906070 9018906018 9020610018 9048010102 9333016012 9338116008 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69750-95A00

LY20,3#,RY2#,3#..TW

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69760-95A00

LY20,3#,RY2#,3#..TW

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-95011

LY20,3#,RY2#,3#..TW

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-95011

LY20,3#,RY2#,3#..TW

 1
69251B - PAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69241-95010

LY20,3#,RY2#,3#..TW

 1
69252B - PAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69241-95010

LY20,3#,RY2#,3#..TW

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69279-12010

LY20,3#,RY2#,3#..TW

 2
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69276-95A00

LY20,3#,RY2#,3#..TW

 2
69330 - LOCK ASSY, REAR DOOR, RH
69310-95012

LY20,3#,RY2#,3#..TW

 1
69340 - LOCK ASSY, REAR DOOR, LH
69320-95014

LY20,3#,RY2#,3#..TW

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-95010

LY20,3#,RY2#,3#..TW

 2
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69701-95A00

LY20,3#,RY2#,3#..TW

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69702-95A00

LY20,3#,RY2#,3#..TW

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69747-2002016

LY20,3#,RY2#,3#..TW

BROWN,BROWN

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

LY20,30,RY2#,3#..TW

 2
Common parts
69619-95010
90159-60081
90159-80001
90179-06070
90189-06018
90206-10018
90480-10102
93330-16012
93381-16008
93530-54010
