LY30-QDP3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )TW

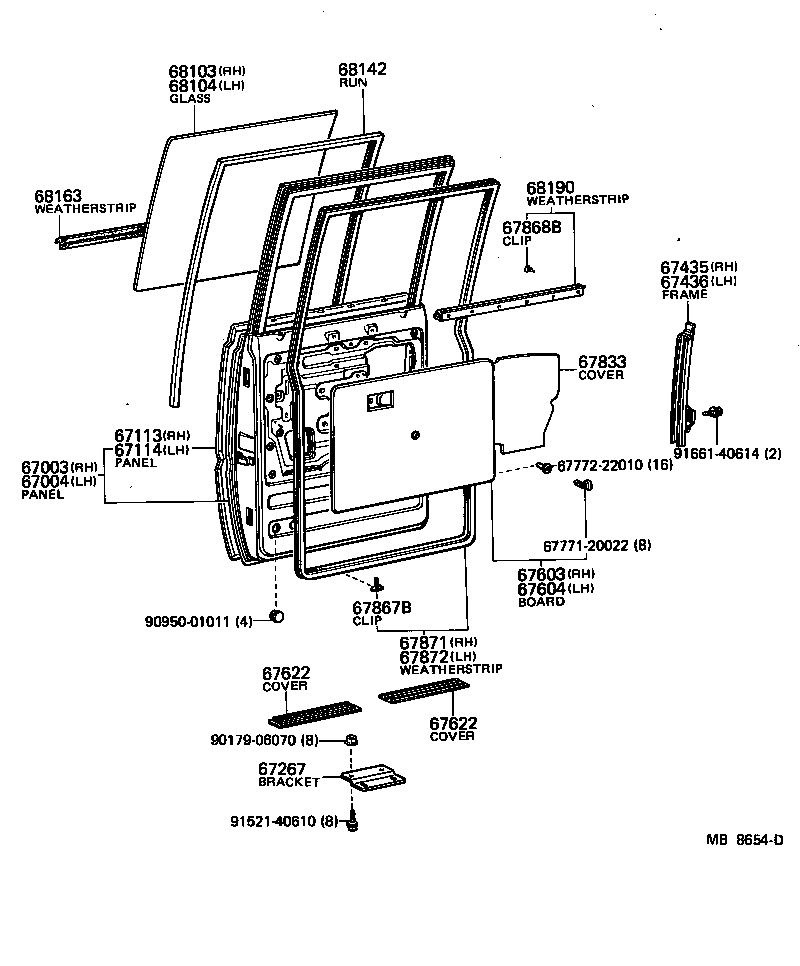

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-95010 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-95010 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-95012 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-95012 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67267 - BRACKET, DOOR INSIDE PANEL, LOWER | ||||
| 67311-95A00 |
LY20,3#,RY2#,3#..TW |
2 | ||
| 67435 - FRAME, REAR DOOR WINDOW LOWER, RH | ||||
| 67403-95A00 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67436 - FRAME, REAR DOOR WINDOW, LOWER LH | ||||
| 67404-95A00 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-95011 |
LY20,30,RY20,31..TW |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-95011 |
LY20,30,RY20,31..TW |
1 | ||
| 67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE | ||||
| 67835-95A00 |
LY20,3#,RY2#,3#..TW |
4 | ||
| 67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE | ||||
| 67835-95A00 |
LY20,3#,RY2#,3#..TW |
4 | ||
| 67833 - COVER, REAR DOOR SERVICE HOLE | ||||
| 67832-95A00 |
LY20,3#,RY2#,3#..TW |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-95401 |
LY20,30,RY20,31..TW |
52 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-08071 |
LY20,3#,RY2#,3#..TW |
12 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67863-95012 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67864-95012 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-95014 |
LY20,30,RY2#,3#..TW *TT,T=4.0 |
1 | ||
| 68113-95015 |
LY20,30,RY20,31..TW1 *TEM,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-95014 |
LY20,30,RY2#,3#..TW *TT,T=4.0 |
1 | ||
| 68113-95015 |
LY20,30,RY20,31..TW1 *TEM,T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-95A00 |
LY20,3#,RY2#,3#..TW |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-95400 |
LY20,3#,RY2#,3#..TW |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-95400 |
LY20,3#,RY2#,3#..TW |
2 | ||
| Common parts | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 90179-06070 | ||||
| 90950-01011 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||
