LY30-QDLT3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)LY20,30

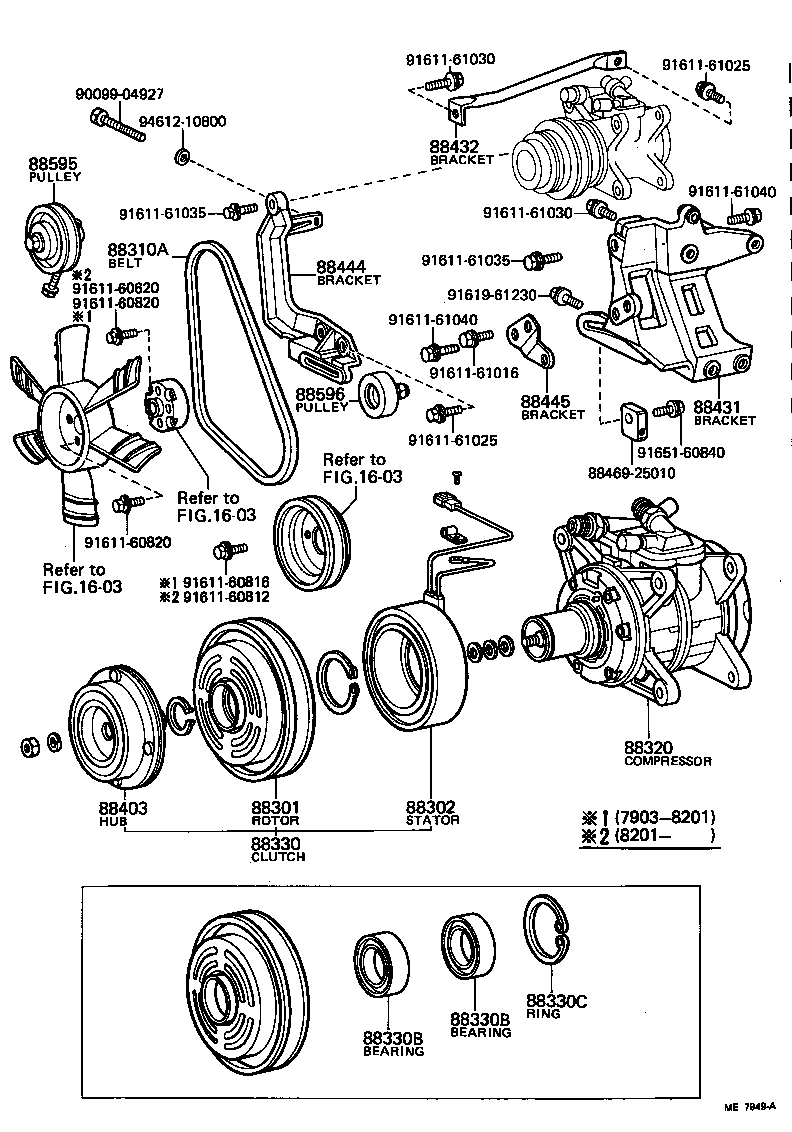

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
LY20,30,RY20,31 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
LY20,30,RY20,31 12V |
1 | ||
| 88411-25010 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01250 |
LY2#,3# 長さ=1250 |
2 | ||
| 99322-01050 |
RY2#,3# 長さ=1050 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-25020 |
LY20,30 |
1 | ||
| 88320-35040 |
RY2#,3# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22060 |
LY20,30,RY20,31 12V |
1 | ||
| 88410-25010 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10127 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 90099-10117 |
LY20,30,RY20,31 12V |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10127 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 90099-10117 |
LY20,30,RY20,31 12V |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
LY20,30,RY20,31 12V |
1 | ||
| 90099-07113 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-22030 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 88403-26030 |
LY20,30,RY20,31 12V |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25020 |
LY20,30 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88433-25030 |
LY20,30 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-25020 |
LY20,30 |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-25030 |
LY20,30 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-25010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-25020 |
LY20,30 |
1 | ||
| Common parts | ||||
| 88469-25010 | ||||
| 90099-04927 | ||||
| 91611-60620 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91619-61230 | ||||
| 91651-60840 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
