LY30-QDGT (1979)
Toyota Toyoace
(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

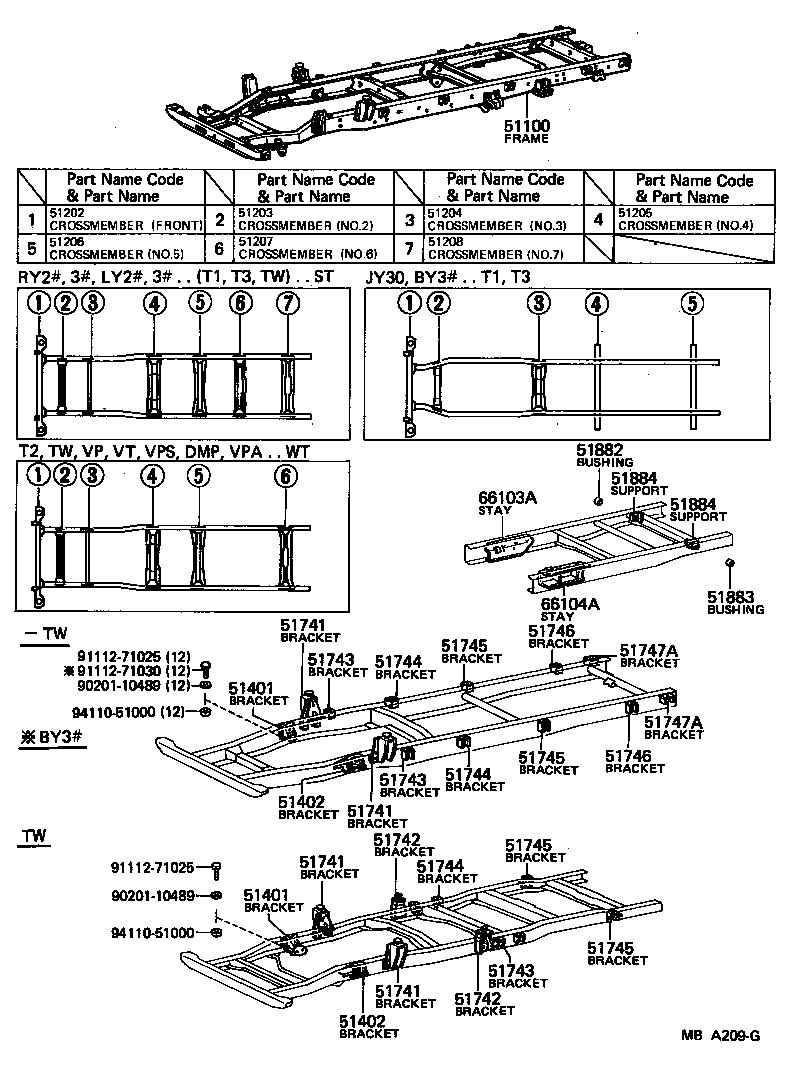

| 51100 - FRAME ASSY | ||||
| 51001-25750 |
LY30..T2,VP,VPS,VT |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-25100 |
LY2#,3#,RY2#,3# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-25080 |
LY20,30,RY21,32 |
1 | ||
| 51203-25050 |
LY20,30,RY20,31 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-25040 |
LY2#,3#,RY2#,3# |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-25030 |
LY20,30,RY20,31 |
1 | ||
| 51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51207-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-25100 |
LY2#,3# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-25100 |
LY2#,3# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-25100 |
LY2#,3# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-25100 |
LY2#,3# |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25010 |
LY20,30,RY20,31 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25010 |
LY20,30,RY20,31 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25010 |
LY20,30,RY20,31 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25010 |
LY20,30,RY20,31 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LY30..TW1;LY30..T2,VP,VPS,VT;LY20,RY20,31..T2,TW,VP,VPS,VT |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LY30..TW1;LY30..T2,VP,VPS,VT;LY20,RY20,31..T2,TW,VP,VPS,VT |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LY30..TW1;LY30..T2,VP,VPS,VT;LY20,RY20,31..T2,TW,VP,VPS,VT |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,TW,VP,VPS,VT |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,TW,VP,VPS,VT |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,TW,VP,VPS,VT |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-26010 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51744-25020 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51744-25020 |
LY2#,3#,RY2#,3#..T2,VP,VPS,VT |
2 | ||
| Common parts | ||||
| 90201-10489 | ||||
| 91112-71025 | ||||
| 91112-71030 | ||||
| 94110-51000 | ||||
