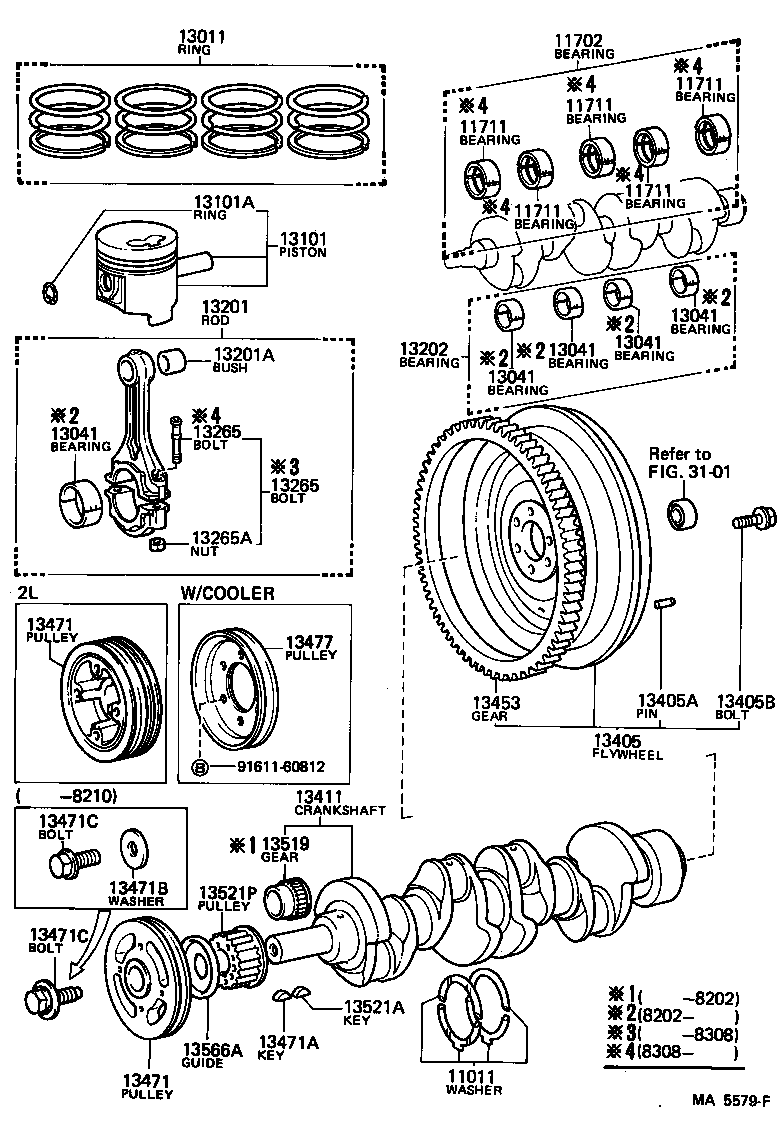

LY30-QDGT (1979)
Toyota Toyoace
(7903- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54010 |
L,2L..LY2#,3# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-54010 |
L,2L..LY2#,3# STD,STD |
1 | ||
| 11013-54010 |
L,2L..LY2#,3# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-54010 |
L..LY20,30 U/S 0.50 |
1 | ||
| 11702-54010 |
L..LY20,30 STD |
1 | ||
| 11703-54010 |
L..LY20,30 U/S 0.05 |
1 | ||
| 11704-54010 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-54040 |
L..LY20,30 STD |
1 | ||
| 13011-54020 |
L..LY20,30 STD |
1 | ||
| 13013-54040 |
L..LY20,30 O/S 0.50 |
1 | ||
| 13013-54020 |
L..LY20,30 O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-54010 |
L..LY20,30 STD |
4 | ||
| 13103-54010 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13103-54020 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LY20,30 STD |
4 | ||
| 13101-54020 |
L..LY20,30 STD |
4 | ||
| 13103-54021 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
L,2L..LY2#,3# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-54010 |
L..LY20,30 |
4 | ||
| 13201-59015 |
L..LY20,30 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
L,2L..LY2#,3# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54010 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13205-54010 |
L..LY20,30 U/S 0.50 |
1 | ||
| 13203-54010 |
L..LY20,30 U/S 0.05 |
1 | ||
| 13205-54011 |
L..LY20,30 U/S 0.50 |
1 | ||
| 13203-54011 |
L..LY20,30 U/S 0.05 |
1 | ||
| 13202-54010 |
L..LY20,30 STD |
1 | ||
| 13202-54011 |
L..LY20,30 STD |
1 | ||
| 13204-54011 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LY20,30 |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LY20,30 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
L,2L..LY2#,3# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L,2L..LY2#,3# N=101 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
L,2L..LY2#,3# 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12011 |
L,2L..LY2#,3# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54010 |
L..LY20,30 |
1 | ||
| 13401-54011 |
L..LY20,30 |
1 | ||
| 13401-54012 |
L..LY20,30 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
L,2L..LY2#,3# N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-54011 |
L..LY20,30 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-54011 |
L..LY20,30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L,2L..LY2#,3# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90201-14007 |
L..LY20,30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 91511-61435 |
L..LY20,30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 91511-61435 |
L..LY20,30 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-54011 |
L..LY20,30 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
L,2L..LY2#,3# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54010 |
L..LY20,30 N=21 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
L,2L..LY2#,3# |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 3101 | ||||
(8009- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54010 |
L,2L..LY2#,3# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-54010 |
L,2L..LY2#,3# STD,STD |
1 | ||
| 11013-54010 |
L,2L..LY2#,3# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-54010 |
L..LY20,30 U/S 0.50 |
1 | ||
| 11702-54010 |
L..LY20,30 STD |
1 | ||
| 11703-54010 |
L..LY20,30 U/S 0.05 |
1 | ||
| 11704-54010 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-54040 |
L..LY20,30 STD |
1 | ||
| 13011-54020 |
L..LY20,30 STD |
1 | ||
| 13013-54040 |
L..LY20,30 O/S 0.50 |
1 | ||
| 13013-54020 |
L..LY20,30 O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-54010 |
L..LY20,30 STD |
4 | ||
| 13103-54010 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13103-54020 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LY20,30 STD |
4 | ||
| 13101-54020 |
L..LY20,30 STD |
4 | ||
| 13103-54021 |
L..LY20,30 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
L,2L..LY2#,3# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-54010 |
L..LY20,30 |
4 | ||
| 13201-59015 |
L..LY20,30 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
L,2L..LY2#,3# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54010 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13205-54010 |
L..LY20,30 U/S 0.50 |
1 | ||
| 13203-54010 |
L..LY20,30 U/S 0.05 |
1 | ||
| 13205-54011 |
L..LY20,30 U/S 0.50 |
1 | ||
| 13203-54011 |
L..LY20,30 U/S 0.05 |
1 | ||
| 13202-54010 |
L..LY20,30 STD |
1 | ||
| 13202-54011 |
L..LY20,30 STD |
1 | ||
| 13204-54011 |
L..LY20,30 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LY20,30 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
L,2L..LY2#,3# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L,2L..LY2#,3# N=101 |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L,2L..LY2#,3# N=101 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
L,2L..LY2#,3# 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12011 |
L,2L..LY2#,3# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54010 |
L..LY20,30 |
1 | ||
| 13401-54011 |
L..LY20,30 |
1 | ||
| 13401-54012 |
L..LY20,30 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
L,2L..LY2#,3# N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-54011 |
L..LY20,30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L,2L..LY2#,3# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 91511-61435 |
L..LY20,30 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
L,2L..LY2#,3# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 3101 | ||||
