LY30-QDD (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8507)JY30..TB..WT ; (7903-8507)BY30,JY30..TS ; (7903-8507)LY2#,3#,RY2#,3#..T3

Click highlighted areas on diagram

diagram 66418 66418 66418 66418 66418 66418 66418 66418 66418 66418 66418 66418 66418 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66418B 66439 66439 6646592700 6646592700 6646592720 6646592720 9017912019 9017912019 9017912019 9017912019 9020110152 9020110152 9020110152 9020110152 9020110152 9020110152 9020110152 9020110152 9020111369 9020111369 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411551200 9411551200 9411551200 9411551200 9412041000 9412041000 9412041000 9461311400
Part # Description Qty Price
Common parts
66465-92700
66465-92720
90179-12019
90201-10152
90201-11369
94110-41000
94115-51200
94120-41000
94613-11400

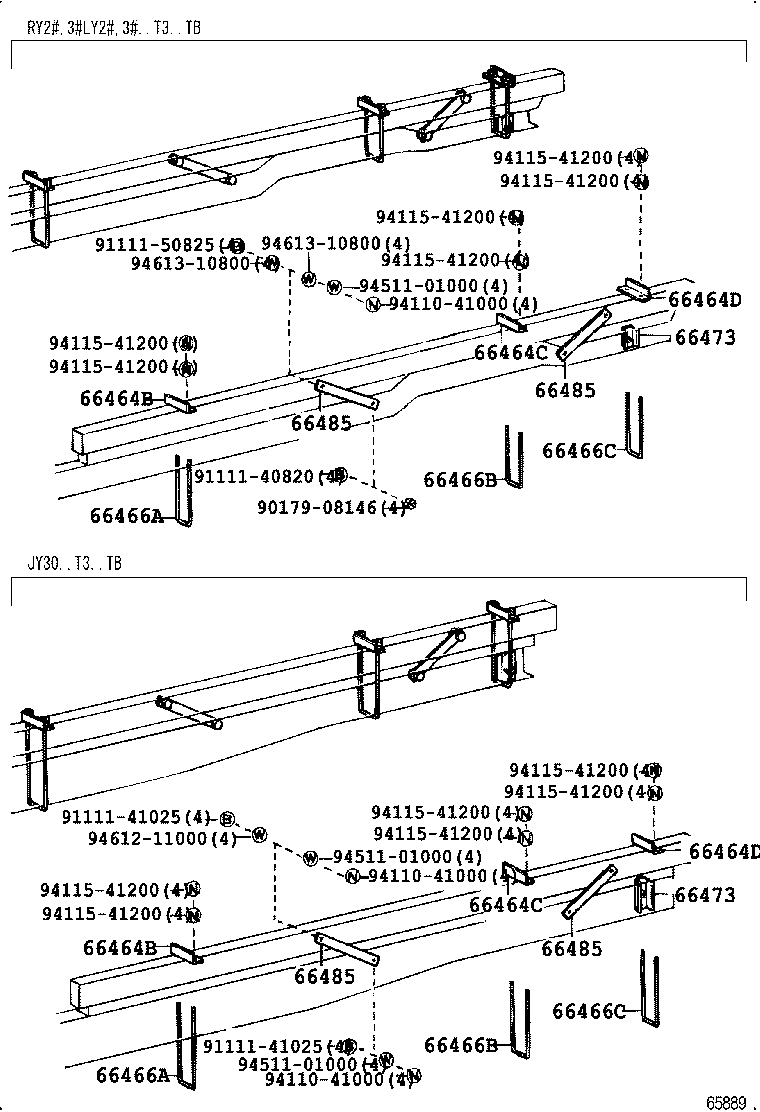

(7903-8507)TB..ST

Click highlighted areas on diagram

diagram 66464B 66464B 66464C 66464C 66464D 66464D 66466A 66466A 66466B 66466B 66466C 66466C 66473 66473 66485 66485 66485 66485 9017908146 9111140820 9111141025 9111141025 9111150825 9411041000 9411041000 9411041000 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9451101000 9451101000 9451101000 9461211000 9461310800 9461310800
Part # Description Qty Price
66464B - PLATE, U BOLT, NO.1
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66464B - PLATE, U BOLT, NO.1
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66464C - PLATE, U BOLT, NO.2
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66464C - PLATE, U BOLT, NO.2
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66464D - PLATE, U BOLT, NO.3
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66464D - PLATE, U BOLT, NO.3
66466-92580

JY30,LY2#,3#,RY2#,3#..TB..ST

 2
66466A - BOLT, U, NO.1
66461-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66466A - BOLT, U, NO.1
66461-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66466B - BOLT, U, NO.2
66462-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66466B - BOLT, U, NO.2
66462-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66466C - BOLT, U, NO.3
66463-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66466C - BOLT, U, NO.3
66463-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66473 - BLOCK, U BOLT, NO.3
66473-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66473 - BLOCK, U BOLT, NO.3
66473-92200

LY2#,3#,RY2#,3#..TB..ST

 2
66485 - PLATE, BODY SLIDE STOP
66484-92200

LY3#,RY3#..TB..ST

 4
66485 - PLATE, BODY SLIDE STOP
66484-92200

LY3#,RY3#..TB..ST

 4
66485 - PLATE, BODY SLIDE STOP
66484-92200

LY3#,RY3#..TB..ST

 4
66485 - PLATE, BODY SLIDE STOP
66484-92200

LY3#,RY3#..TB..ST

 4
Common parts
90179-08146
91111-40820
91111-41025
91111-50825
94110-41000
94115-41200
94511-01000
94612-11000
94613-10800
