LY30-QDB3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

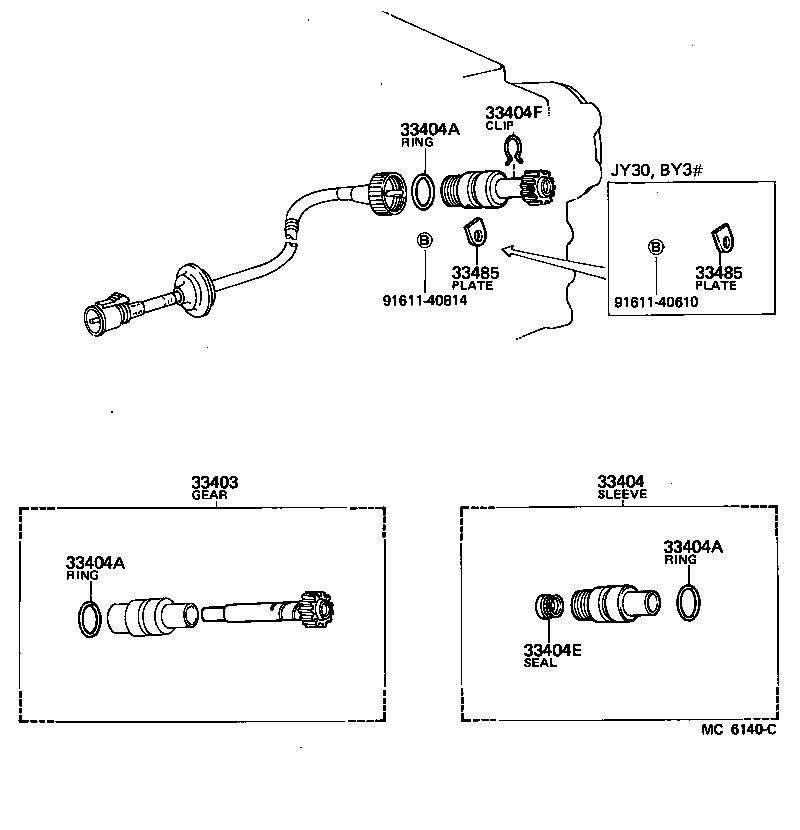

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404A 33404E 33404F 33485 33485 9161140610 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-29025

LY20,30,RY3#..ST

N=22

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-30040

JY30,LY20,30,RY20,31

 1
33404-30040

LY20,30,RY2#,3#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LY2#,3#,RY2#,3#

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LY2#,3#,RY2#,3#

 1
Common parts
91611-40610
91611-40814
