LY30-QDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

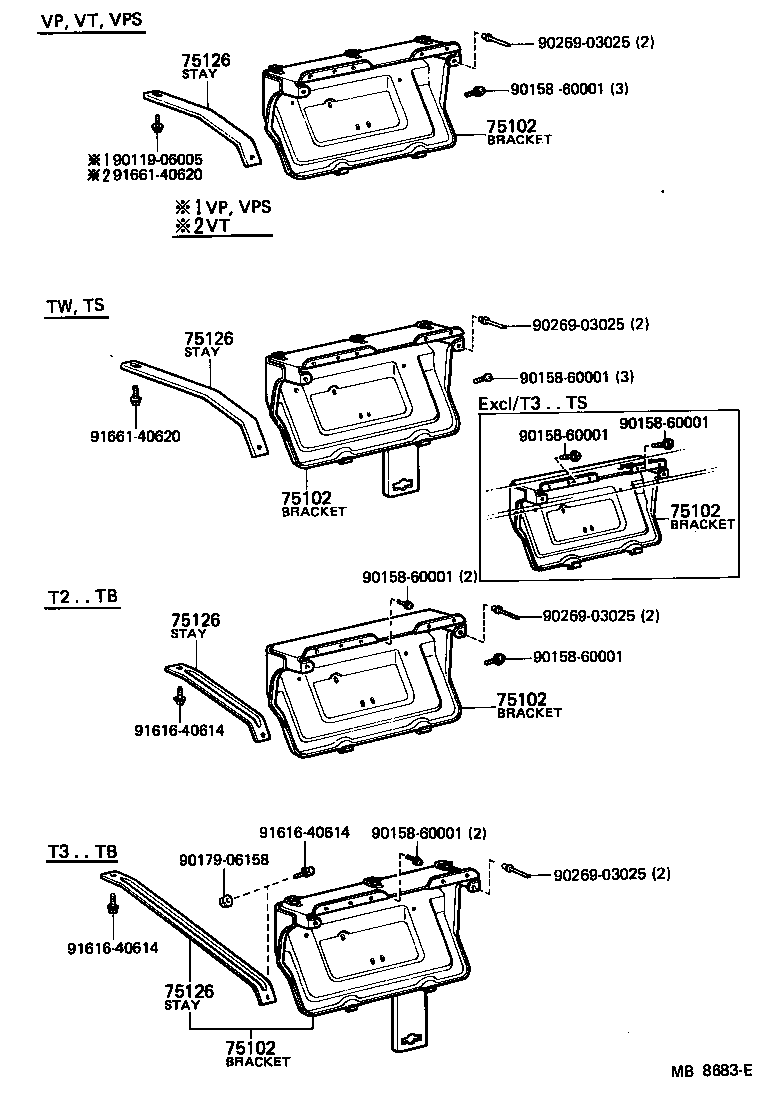

ILLUST NO. 1 OF 2(7903- )TR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95021 |
LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95021 |
LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95021 |
LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95021 |
LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95021 |
LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66407-95019 |
BY30,JY30,LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66407-95019 |
BY30,JY30,LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66407-95019 |
BY30,JY30,LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66407-95019 |
BY30,JY30,LY2#,3#,RY2#,3#..T3..TS..CBU |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90158-60001 | ||||
| 90179-06158 | ||||
| 90269-03025 | ||||
| 91616-40614 | ||||
| 91661-40620 | ||||

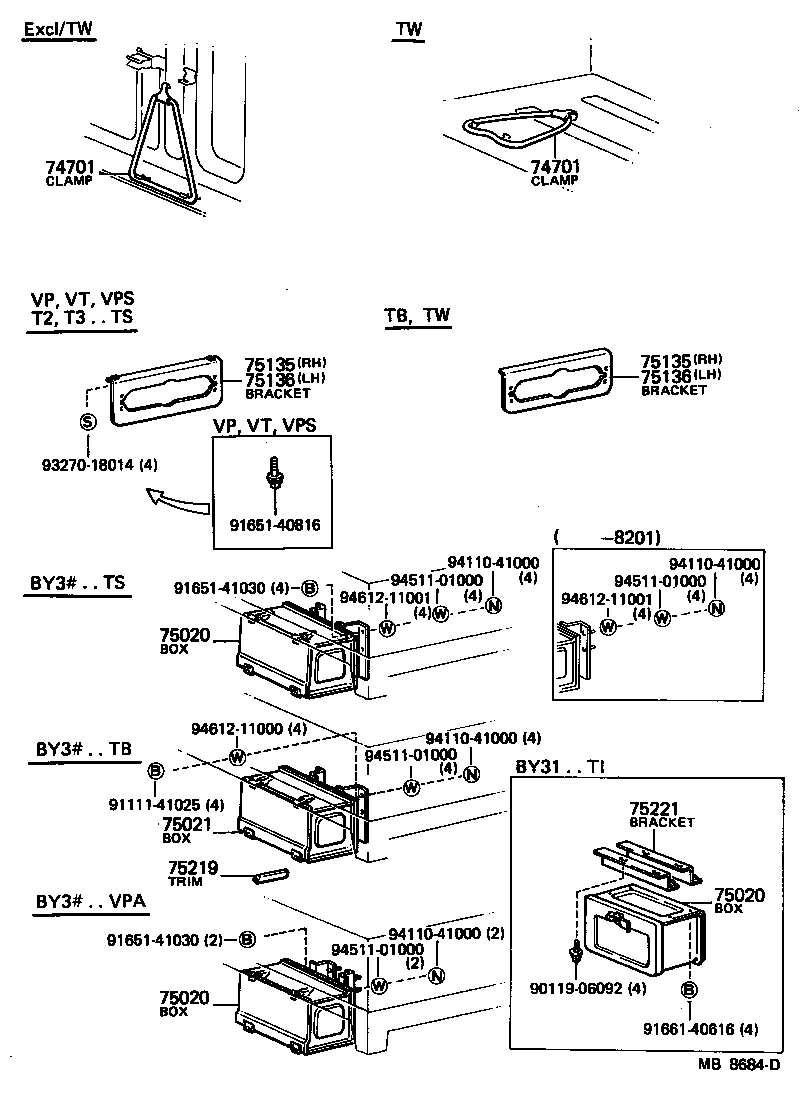

ILLUST NO. 2 OF 2(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75135-95012 |
BY30,JY30,LY2#,3#,RY2#,3#..(T2,T3)..TS..CBU |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75135-95012 |
BY30,JY30,LY2#,3#,RY2#,3#..(T2,T3)..TS..CBU |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75135-95012 |
BY30,JY30,LY2#,3#,RY2#,3#..(T2,T3)..TS..CBU |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75135-95012 |
BY30,JY30,LY2#,3#,RY2#,3#..(T2,T3)..TS..CBU |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 91111-41025 | ||||
| 91651-40816 | ||||
| 91651-41030 | ||||
| 91661-40616 | ||||
| 93270-18014 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-11000 | ||||
| 94612-11001 | ||||
