LY30-QDB (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

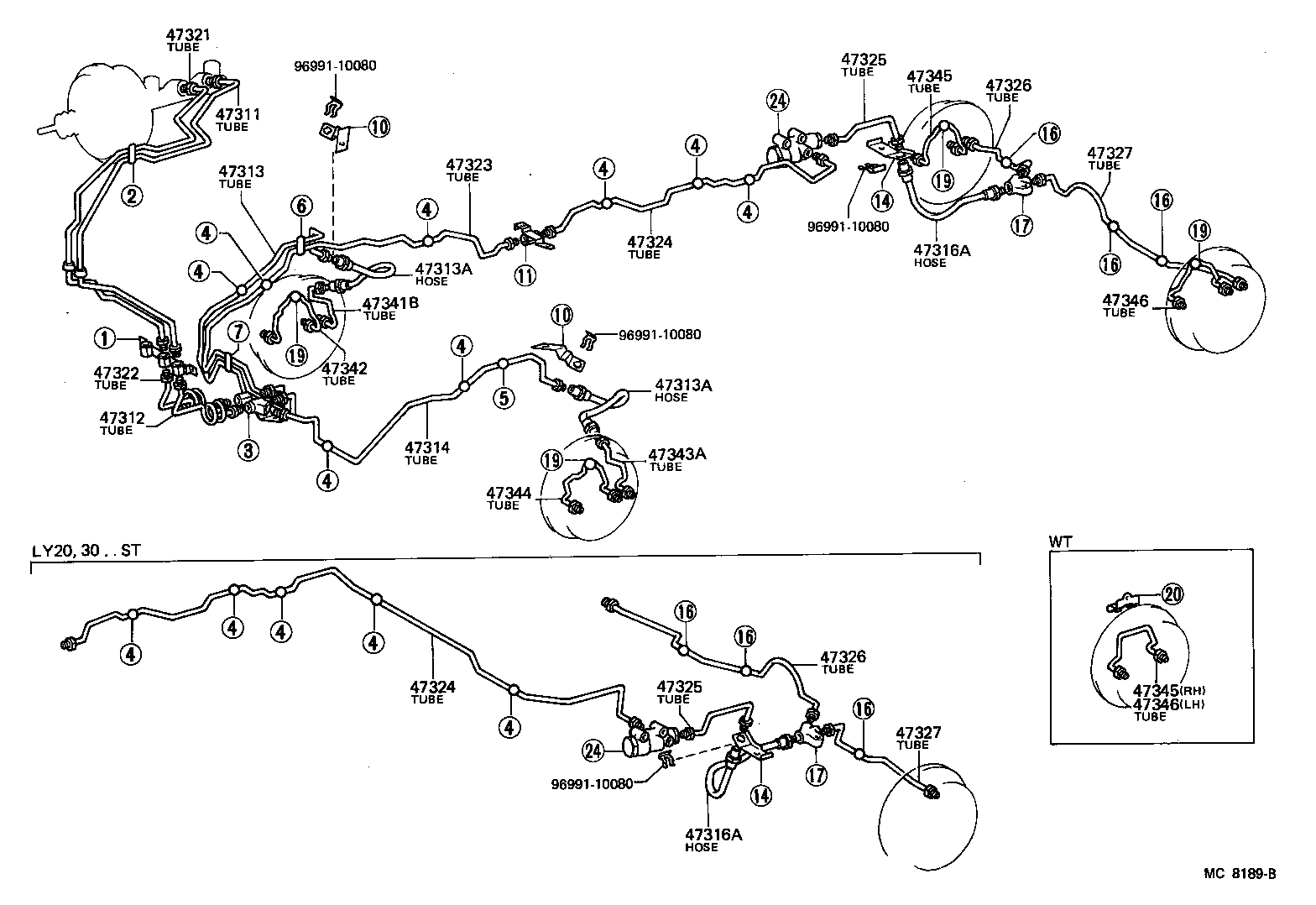

ILLUST NO. 1 OF 2(7903-8201)LY20,30,RY20,31

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47316A 47321 47321D 47322 47322B 47323 47324 47324 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 47351 47352 47353 47379F 47379R 47910A 47910B 47910G 9017908146 9046106179 9046106487 9046106487 9046106487 9046110565 9046110565 9046212219 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140825 9165140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25120

BY30,JY30,LY20,30,RY20,31

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10050

BY3#,JY30,LY2#,3#,RY2#,3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25030

LY20,30,RY2#,3#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

BY30,JY30,LY20,30,RY2#,3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25070

LY20,30,RY2#,3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25100

LY20,30,RY2#,3#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34205

LY20,30,RY20,31..ST

 1
96940-34405

LY20,30,RY20,31..ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25010

BY30,JY30,LY20,30,RY20,31

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10054

LY2#,3#,RY2#,3#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25010

LY20,30,RY2#,3#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY2#,3#,RY2#,3#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25010

LY20,30,RY20,31

 1
47323-25050

LY20,30,RY2#,3#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25040

LY30,RY31..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25040

LY30,RY31..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25030

LY20,30,RY20,31..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25030

LY20,30,RY20,31..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25040

LY20,30,RY20,31..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25030

LY20,30,RY20,31..ST

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-25030

LY2#,3#,RY2#,3#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-25011

LY2#,3#,RY2#,3#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-25020

LY2#,3#,RY2#,3#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-25011

LY2#,3#,RY2#,3#

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25030

LY2#,3#,RY2#,3#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25050

LY2#,3#,RY2#,3#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25010

LY2#,3#,RY2#,3#

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-25010

LY2#,3#,RY2#,3#

 2
47379R - DAMPER, TUBE(FOR REAR)
47379-25010

LY2#,3#,RY2#,3#..ST

 2
Common parts
90179-08146
90461-06179
90461-06487
90461-10565
90462-12219
91611-40812
91611-40816
91611-40820
91611-40825
91651-40825
94110-40800
96221-30905
96991-10080

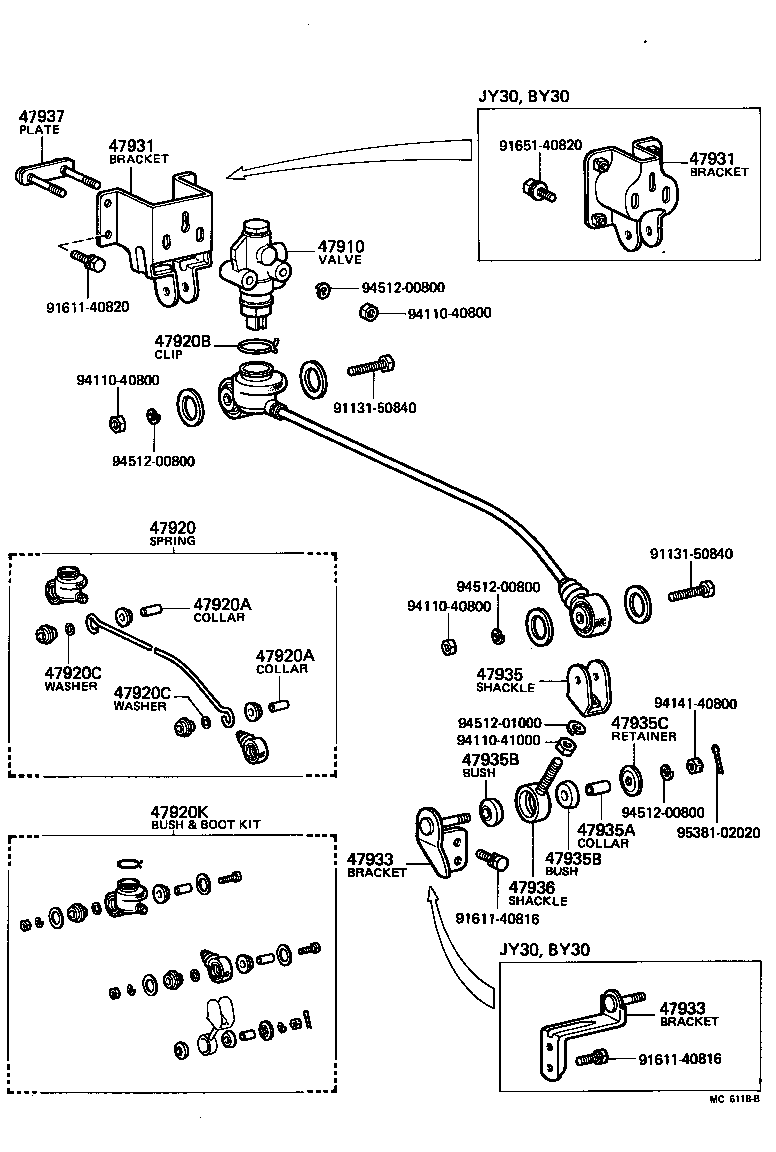

ILLUST NO. 2 OF 2(7903-8201)20T ; (7903-8201)LY20,30,RY20,31..ST

Click highlighted areas on diagram

diagram 47910 47920 47920A 47920A 47920B 47920C 47920C 47920K 47931 47931 47933 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9113150840 9113150840 9161140816 9161140816 9161140820 9165140820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25030

LY30..ST;BY30,JY30,LY20,RY20,31..T1,T3,TW,VPA

 1
47920 - SPRING ASSY, LOAD SENSING
47920-25010

LY20,30,RY20,31..ST

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47920K - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-35010

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-25020

LY20,30,RY20,31..ST

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-25020

LY20,30,RY20,31..ST

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26010

LY20,30,RY20,31..ST

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26010

LY20,30,RY20,31..ST

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BY30,JY30..20T;LY20,30,RY20,31..ST

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26010

BY30,JY30..20T;LY20,30,RY20,31..ST

 1
Common parts
91131-50840
91611-40816
91611-40820
91651-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

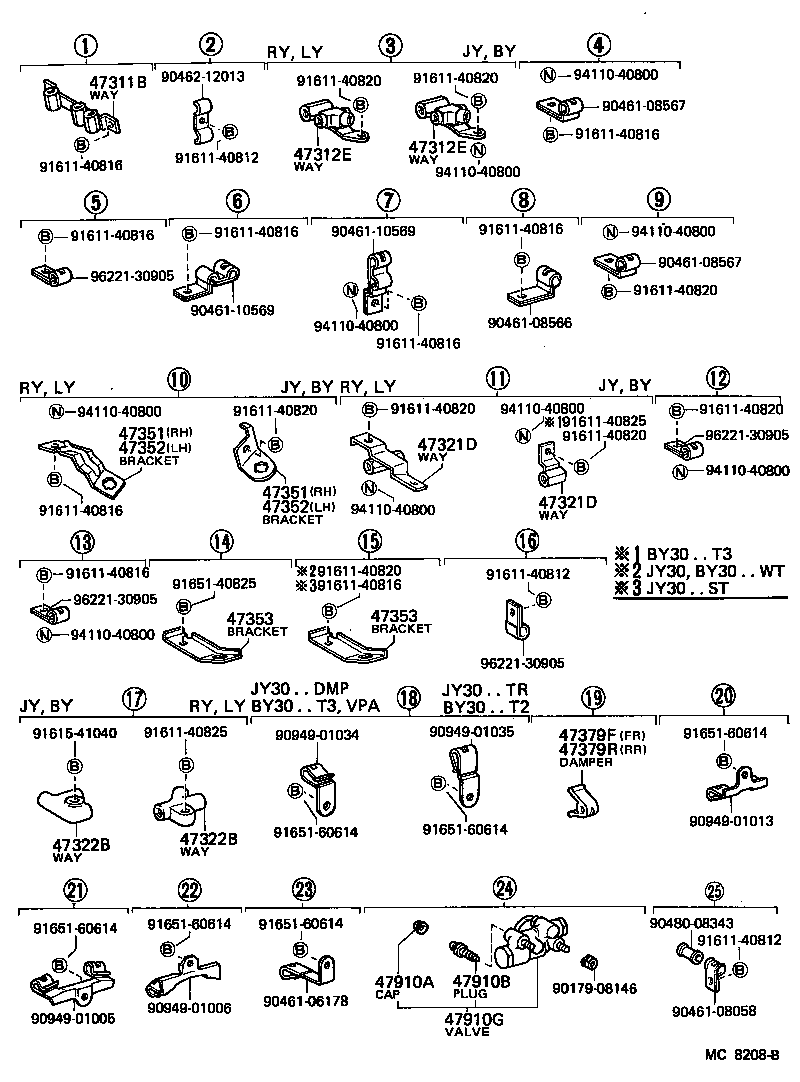

ILLUST NO. 1 OF 2(8201- )LY2#,3#,RY21,32

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47316A 47316A 47321 47322 47323 47324 47324 47325 47325 47326 47326 47327 47327 47341B 47342 47343A 47344 47345 47345 47346 47346 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25120

BY30,JY30,LY20,30,RY20,31

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25030

LY20,30,RY2#,3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25070

LY20,30,RY2#,3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

LY20,30,RY20,31

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25100

LY20,30,RY2#,3#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34205

LY20,30,RY20,31..ST

 1
96940-34405

LY20,30,RY20,31..ST

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34205

LY20,30,RY20,31..ST

 1
96940-34405

LY20,30,RY20,31..ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25010

BY30,JY30,LY20,30,RY20,31

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25010

LY20,30,RY2#,3#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25010

LY20,30,RY20,31

 1
47323-25050

LY20,30,RY2#,3#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25040

LY30,RY31..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25040

LY30,RY31..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25030

LY20,30,RY20,31..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25030

LY20,30,RY20,31..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25040

LY20,30,RY20,31..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25040

LY20,30,RY20,31..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25030

LY20,30,RY20,31..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25030

LY20,30,RY20,31..ST

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-25030

LY2#,3#,RY2#,3#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-25011

LY2#,3#,RY2#,3#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-25020

LY2#,3#,RY2#,3#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-25011

LY2#,3#,RY2#,3#

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

LY2#,3#,RY2#,3#..ST

 1
Common parts
96991-10080

ILLUST NO. 2 OF 2(8201- )

Click highlighted areas on diagram

diagram 47311B 47312E 47312E 47321D 47321D 47322B 47322B 47351 47351 47352 47352 47353 47353 47379F 47379R 47910A 47910B 47910G 9017908146 9046106178 9046108058 9046108566 9046108567 9046108567 9046110569 9046110569 9046212013 9048008343 9094901005 9094901006 9094901013 9094901034 9094901035 9161140812 9161140812 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140825 9161140825 9161541040 9165140825 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9622130905 9622130905 9622130905 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10050

BY3#,JY30,LY2#,3#,RY2#,3#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

BY30,JY30,LY20,30,RY2#,3#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

BY30,JY30,LY20,30,RY2#,3#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10054

LY2#,3#,RY2#,3#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10054

LY2#,3#,RY2#,3#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY2#,3#,RY2#,3#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY2#,3#,RY2#,3#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25030

LY2#,3#,RY2#,3#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25030

LY2#,3#,RY2#,3#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25050

LY2#,3#,RY2#,3#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25050

LY2#,3#,RY2#,3#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25010

LY2#,3#,RY2#,3#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25010

LY2#,3#,RY2#,3#

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-25010

LY2#,3#,RY2#,3#

 2
47379R - DAMPER, TUBE(FOR REAR)
47379-25010

LY2#,3#,RY2#,3#..ST

 2
Common parts
90179-08146
90461-06178
90461-08058
90461-08566
90461-08567
90461-10569
90462-12013
90480-08343
90949-01005
90949-01006
90949-01013
90949-01034
90949-01035
91611-40812
91611-40816
91611-40820
91611-40825
91615-41040
91651-40825
91651-60614
94110-40800
96221-30905
