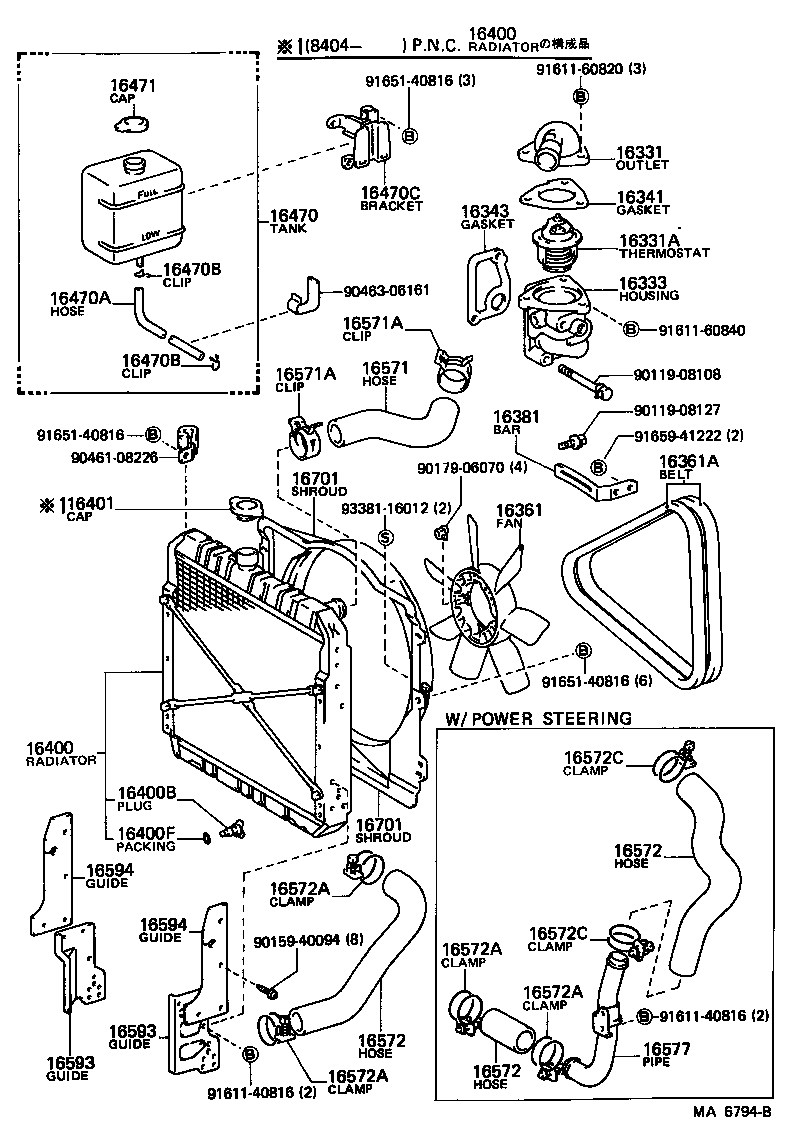

LY21-QDLT3 (1983)
Toyota Toyoace
(8308- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16361 - FAN | ||||
| 16361-54010 |
2L..LY21,31 |
1 | ||
| 16361 - FAN | ||||
| 16361-54010 |
2L..LY21,31 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02132 |
2L..LY21,31 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16400-54350 |
2L..LY21,31 |
1 | ||
| 16400-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16410-54350 |
2L..LY21,31 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54180 |
2L..LY21,31 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54190 |
2L..LY21,31 W/PS,WATER PUMP SIDE |
1 | ||
| 16573-54040 |
2L..LY21,31 W/PS,RADIATOR SIDE |
1 | ||
| 16572-54180 |
2L..LY21,31 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54020 |
2L..LY21,31 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54020 |
2L..LY21,31 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54160 |
2L..LY21,31 UPR |
1 | ||
| 16712-54120 |
2L..LY21,31 LWR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54160 |
2L..LY21,31 UPR |
1 | ||
| 16712-54120 |
2L..LY21,31 LWR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90159-40094 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90461-08226 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91616-40820 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
| 93381-16012 | ||||
(8308- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16361 - FAN | ||||
| 16361-54010 |
2L..LY21,31 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02132 |
2L..LY21,31 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16400-54350 |
2L..LY21,31 |
1 | ||
| 16400-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16410-54350 |
2L..LY21,31 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16400-54350 |
2L..LY21,31 |
1 | ||
| 16400-54360 |
2L..LY21,31 W/PS |
1 | ||
| 16410-54350 |
2L..LY21,31 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54180 |
2L..LY21,31 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54190 |
2L..LY21,31 W/PS,WATER PUMP SIDE |
1 | ||
| 16573-54040 |
2L..LY21,31 W/PS,RADIATOR SIDE |
1 | ||
| 16572-54180 |
2L..LY21,31 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54190 |
2L..LY21,31 W/PS,WATER PUMP SIDE |
1 | ||
| 16573-54040 |
2L..LY21,31 W/PS,RADIATOR SIDE |
1 | ||
| 16572-54180 |
2L..LY21,31 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54190 |
2L..LY21,31 W/PS,WATER PUMP SIDE |
1 | ||
| 16573-54040 |
2L..LY21,31 W/PS,RADIATOR SIDE |
1 | ||
| 16572-54180 |
2L..LY21,31 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LY21,31 ID=46 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LY21,31 ID=46 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54090 |
2L..LY21,31 W/POWER STEERING |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54020 |
2L..LY21,31 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54020 |
2L..LY21,31 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54160 |
2L..LY21,31 UPR |
1 | ||
| 16712-54120 |
2L..LY21,31 LWR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54160 |
2L..LY21,31 UPR |
1 | ||
| 16712-54120 |
2L..LY21,31 LWR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90159-40094 | ||||
| 90179-06070 | ||||
| 90461-08226 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
| 93381-16012 | ||||
