LY20V-QDT (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

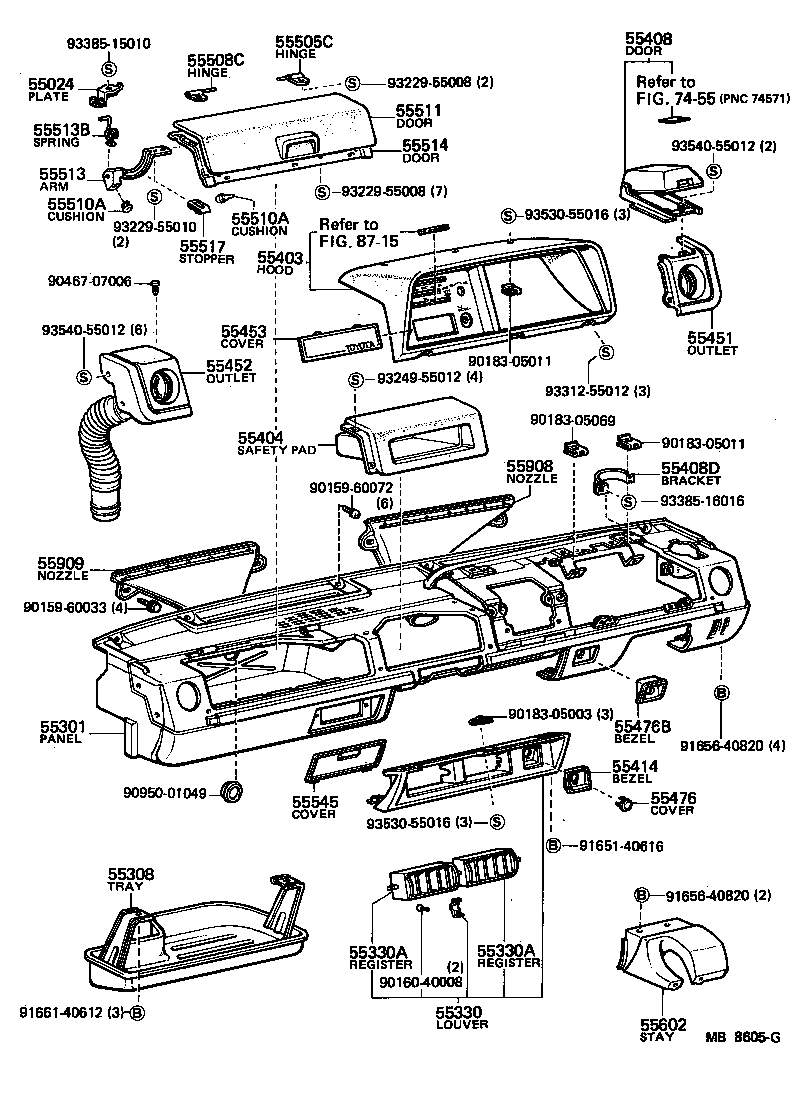

Click highlighted areas on diagram

diagram 55024 55301 55308 55330 55330A 55330A 55403 55404 55408 55408D 55414 55451 55452 55453 55476 55476B 55505C 55508C 55510A 55510A 55511 55513 55513B 55514 55517 55545 55602 55908 55909 7455 8715 9015960033 9015960072 9016040008 9018305003 9018305011 9018305011 9018305069 9046707006 9095001049 9165140616 9165640820 9165640820 9166140612 9322955008 9322955008 9322955010 9324955012 9331255012 9338515010 9338516016 9353055016 9353055016 9354055012 9354055012
Part # Description Qty Price
55024 - PLATE SUB-ASSY, TORSION SPRING
55024-95012

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-95021

BY30,JY30,LY20,30,RY20,31

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
74650-95018

BY30,JY30,LY20,30,RY20,31

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-95012

BY30,JY30,LY20,30,RY20,31

 1
55330A - REGISTER, CENTER VENTILATOR, LOUVER
55065-20030

BY3#,JY30,LY2#,3#,RY2#,3#

 2
55330A - REGISTER, CENTER VENTILATOR, LOUVER
55065-20030

BY3#,JY30,LY2#,3#,RY2#,3#

 2
55403 - HOOD SUB-ASSY, METER
55421-95010

BY30,JY30,LY20,30,RY20,31

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55410-95054

BY30,JY30,LY20,30,RY20,31

 1
55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE
55402-95010

BY30,JY30,LY20,30,RY20,31

 1
55408D - BRACKET SUB-ASSY, RESERVOIR
47202-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-95011

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55451 - OUTLET, AIR OUTER, RH
55408-95011

BY30,JY30,LY20,30,RY20,31

 1
55452 - OUTLET, AIR OUTER, LH
55409-95010

BY30,JY30,LY20,30,RY20,31

 1
55476B - BEZEL, CHOKE ROD
55476-95010

BY30,JY30,LY20,30

THROTTLE ROD

 1
55505C - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, RH
55505-95012

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55508C - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, LH
55508-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55536-95011

BY3#,JY30,LY2#,3#,RY2#,3#

DOOR

 3
90541-05005

BY3#,JY30,LY2#,3#,RY2#,3#

ARM

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55536-95011

BY3#,JY30,LY2#,3#,RY2#,3#

DOOR

 3
90541-05005

BY3#,JY30,LY2#,3#,RY2#,3#

ARM

 1
55511 - DOOR, GLOVE COMPARTMENT
55501-95011

BY30,JY30,LY20,30,RY20,31

 1
55513 - ARM, GLOVE COMPARTMENT DOOR CHECK
55513-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55513B - SPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)
90508-23019

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55514 - DOOR, GLOVE COMPARTMENT, INNER
55512-95012

BY30,JY30,LY20,30,RY20,31

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-95010

BY30,JY30,LY20,30,RY20,31

 1
55545 - COVER, FUSE BOX OPENING
55806-95010

BY30,JY30,LY20,30,RY20,31

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55602-95031

BY30,JY30,LY20,30,RY21,32

W/POWER WINDOW

 1
55602-95027

BY30,JY30,LY20,30,RY20,31

 1
55602-95028

BY30,JY30,LY20,30,RY20,31

W/POWER WINDOW

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
Common parts
90159-60033
90159-60072
90160-40008
90183-05003
90183-05011
90183-05069
90467-07006
90950-01049
91651-40616
91656-40820
91661-40612
93229-55008
93229-55010
93249-55012
93312-55012
93385-15010
93385-16016
93530-55016
93540-55012
Linked diagrams
7455
8715
