LY20-QDPH (1979)
Toyota Toyoace

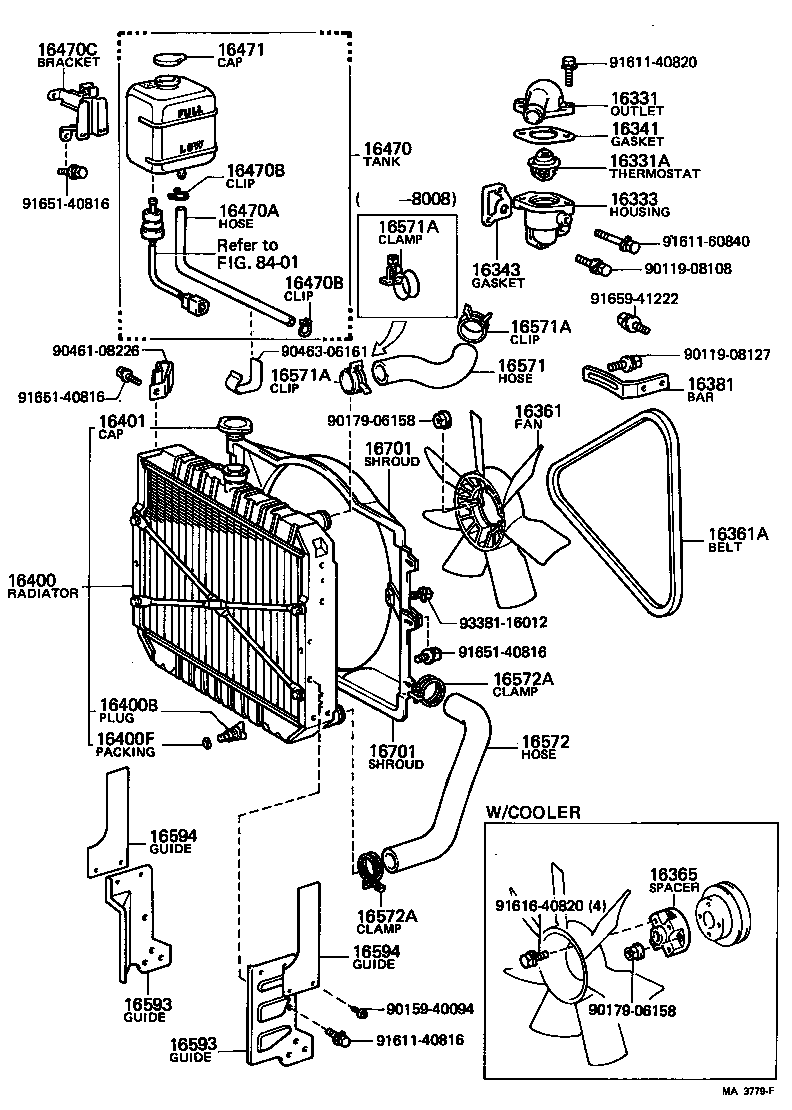

(7903-8308)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03042 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03043 |
L..LY20,30 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03062 |
L..LY20,30 *WAX 88−100,COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16341-54020 |
L..LY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LY20,30 |
1 | ||
| 16343-54011 |
L,2L..LY2#,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-56030 |
L..LY20,30 W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-11000 |
L..LY20,30 |
1 | ||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 90916-02133 |
L..LY20,30 |
1 | ||
| 99332-10985 |
L..LY20,30 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-54010 |
L..LY20,30 W/COOLER |
1 | ||
| 16365-54012 |
L..LY20,30 W/COOLER |
1 | ||
| 16365-54011 |
L..LY20,30 W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54030 |
L..LY20 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400-54030 |
L..LY20,30 COLD SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54020 |
L..LY20,30 W/OK-MONITOR |
1 | ||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 88892-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54010 |
L..LY20,30 |
2 | ||
| 16594-54011 |
L..LY20 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54010 |
L..LY20,30 |
2 | ||
| 16594-54011 |
L..LY20 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90159-40094 | ||||
| 90179-06158 | ||||
| 90461-08226 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-60840 | ||||
| 91616-40820 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

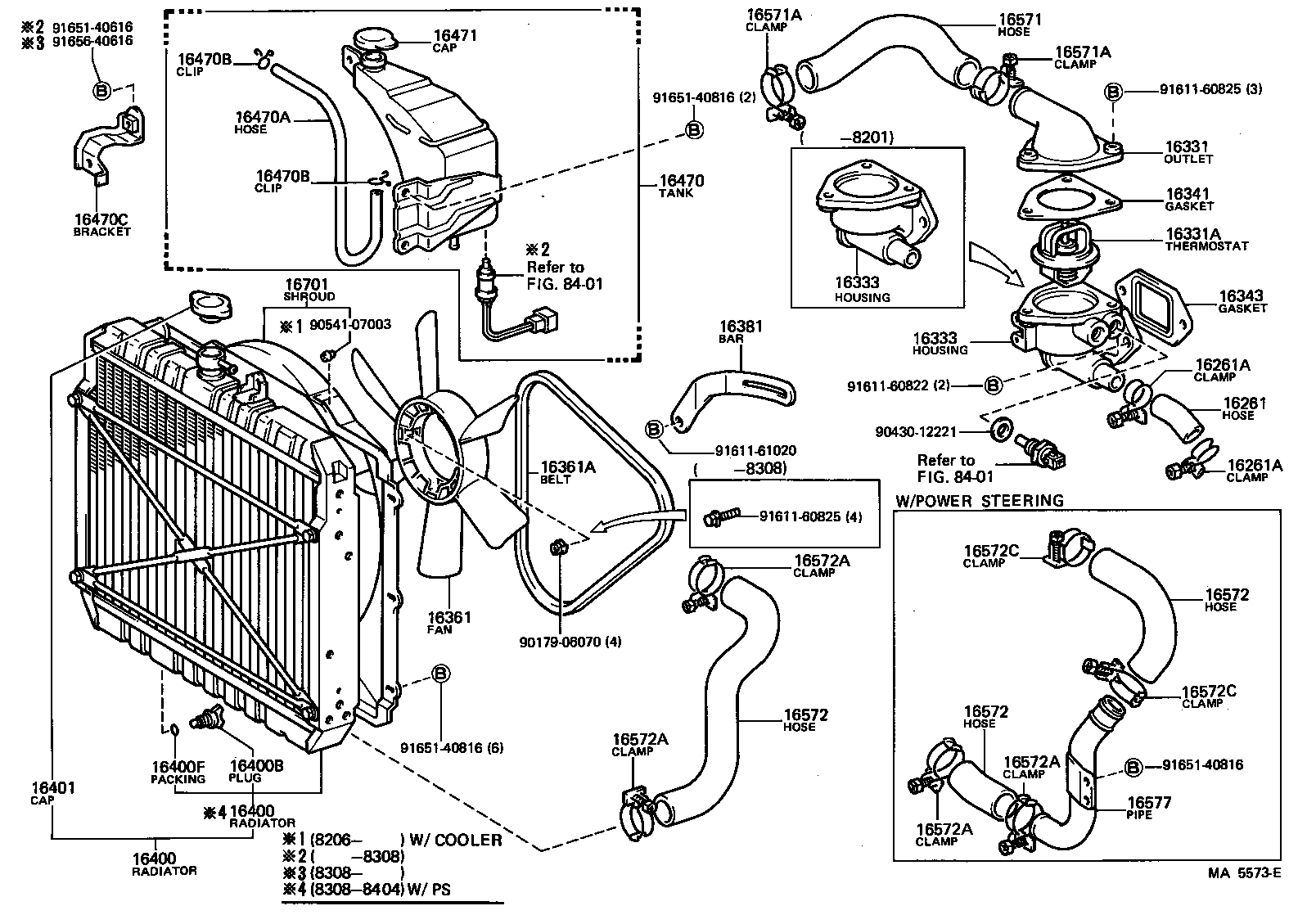

(8009-8408)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03042 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03043 |
L..LY20,30 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03062 |
L..LY20,30 *WAX 88−100,COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16341-54020 |
L..LY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LY20,30 |
1 | ||
| 16343-54011 |
L,2L..LY2#,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-56030 |
L..LY20,30 W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-11000 |
L..LY20,30 |
1 | ||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 90916-02133 |
L..LY20,30 |
1 | ||
| 99332-10985 |
L..LY20,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54030 |
L..LY20 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400-54030 |
L..LY20,30 COLD SPEC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54030 |
L..LY20 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400-54030 |
L..LY20,30 COLD SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54020 |
L..LY20,30 W/OK-MONITOR |
1 | ||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 88892-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90430-12221 | ||||
| 90541-07003 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8308- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03042 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03043 |
L..LY20,30 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03062 |
L..LY20,30 *WAX 88−100,COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16341-54020 |
L..LY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LY20,30 |
1 | ||
| 16343-54011 |
L,2L..LY2#,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-56030 |
L..LY20,30 W/COOLER |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-56030 |
L..LY20,30 W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-11000 |
L..LY20,30 |
1 | ||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 90916-02133 |
L..LY20,30 |
1 | ||
| 99332-10985 |
L..LY20,30 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-54010 |
L..LY20,30 W/COOLER |
1 | ||
| 16365-54012 |
L..LY20,30 W/COOLER |
1 | ||
| 16365-54011 |
L..LY20,30 W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54030 |
L..LY20 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400-54030 |
L..LY20,30 COLD SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54020 |
L..LY20,30 W/OK-MONITOR |
1 | ||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 88892-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16595-54020 |
L,2L..LY2#,31 LH |
1 | ||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54020 |
L,2L..LY2#,31 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54010 |
L..LY20,30 |
2 | ||
| 16594-54011 |
L..LY20 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54010 |
L..LY20,30 |
2 | ||
| 16594-54011 |
L..LY20 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90159-40094 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90461-08226 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91616-40820 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
| 93381-16012 | ||||
(8408- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331-54030 |
L,2L..LY2#,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03042 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03043 |
L..LY20,30 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03062 |
L..LY20,30 *WAX 88−100,COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03062 |
L,2L..LY2#,31 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LY2#,31 |
1 | ||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-54011 |
L,2L..LY2#,31 |
1 | ||
| 16341-54020 |
L..LY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LY20,30 |
1 | ||
| 16343-54011 |
L,2L..LY2#,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-56030 |
L..LY20,30 W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-11000 |
L..LY20,30 |
1 | ||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 90916-02133 |
L..LY20,30 |
1 | ||
| 99332-10985 |
L..LY20,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2L..LY2#,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54030 |
L..LY20 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400-54030 |
L..LY20,30 COLD SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY2#,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
L,2L..LY2#,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
L,2L..LY2#,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54020 |
L..LY20,30 W/OK-MONITOR |
1 | ||
| 16470-54010 |
L,2L..LY2#,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY2#,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L..LY2#,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY2#,3# |
1 | ||
| 88892-25010 |
L..LY20,30 W/COOLER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
L,2L..LY2#,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LY2#,3# |
2 | ||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L,2L..LY2#,3# PUMP SIDE |
1 | ||
| 96111-10460 |
L,2L..LY2#,3# RADIATOR SIDE OR PIPE SIDE |
1 | ||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90430-12221 | ||||
| 90541-07003 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
