LY20-QDLHT (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )LY20,30

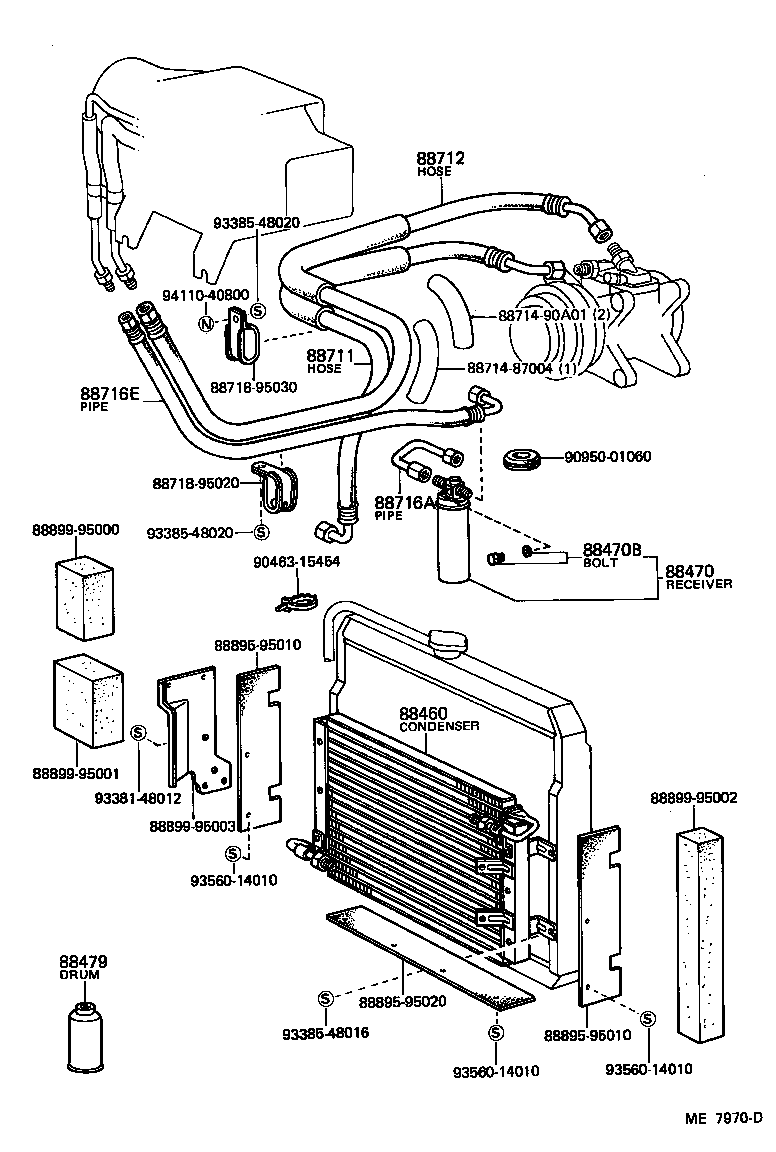

Click highlighted areas on diagram

diagram 88460 88470 88470B 88479 88711 88712 8871487004 8871490A01 88716A 88716E 8871895020 8871895030 8889595010 8889595010 8889595020 8889995000 8889995001 8889995002 8889995003 9046315454 9095001060 9338148012 9338548016 9338548020 9338548020 9356014010 9356014010 9356014010 9411040800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95010

JY30,LY20,30,RY2#,3#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

BY3#,JY30,LY20,30,RY2#,3#

 1
88470B - BOLT, FUSE
90099-04579

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BY31,JY30,LY2#,3#,RY2#,3#

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95020

LY20,30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60030

LY20,30

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95010

JY30,LY20,30,RY2#,3#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88721-87301

JY30,LY20,30,RY2#,3#

 1
Common parts
88714-87004
88714-90A01
88718-95020
88718-95030
88895-95010
88895-95020
88899-95000
88899-95001
88899-95002
88899-95003
90463-15454
90950-01060
93381-48012
93385-48016
93385-48020
93560-14010
94110-40800
