LY20-QDCT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )VT

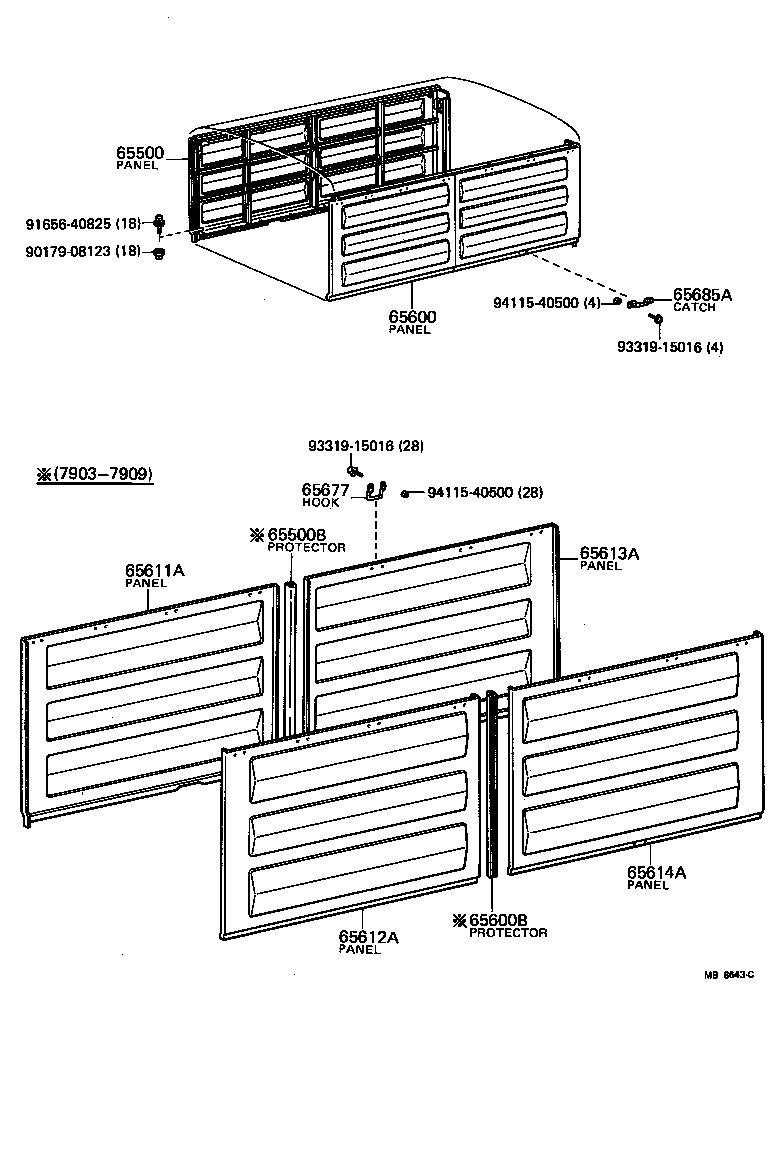

Click highlighted areas on diagram

diagram 65500 65500B 65600 65600B 65611A 65612A 65613A 65614A 65677 65685A 9017908123 9165640825 9331915016 9331915016 9411540500 9411540500
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-92535

LY20,RY20..VT

 1
65500B - PROTECTOR, REAR BODY SIDE PANEL, RH
64144-92515

LY20,30,RY20,31..VP,VPS,VT

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-92535

LY20,RY20..VT

 1
65600B - PROTECTOR, REAR BODY SIDE PANEL, LH
64144-92515

LY20,30,RY20,31..VP,VT

 1
65611A - PANEL, SIDE OUTER, FRONT RH
65611-92515

LY20,RY20..VP,VT

 1
65612A - PANEL, SIDE OUTER, FRONT LH
65612-92515

LY20,RY20..VP,VT

 1
65613A - PANEL, SIDE OUTER, REAR RH
65613-92515

LY20,RY20..VP,VT

 1
65614A - PANEL, SIDE OUTER, REAR LH
65614-92515

LY20,RY20..VP,VT

 1
65677 - HOOK, TOP CURTAIN, SIDE
65462-92521

LY20,RY20..VT

 12
65685A - CATCH, BACK DOOR STOPPER
65685-92516

LY20,3#,RY2#,3#..VP,VPS,VT

 2
Common parts
90179-08123
91656-40825
93319-15016
94115-40500
