LY20-QDCT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

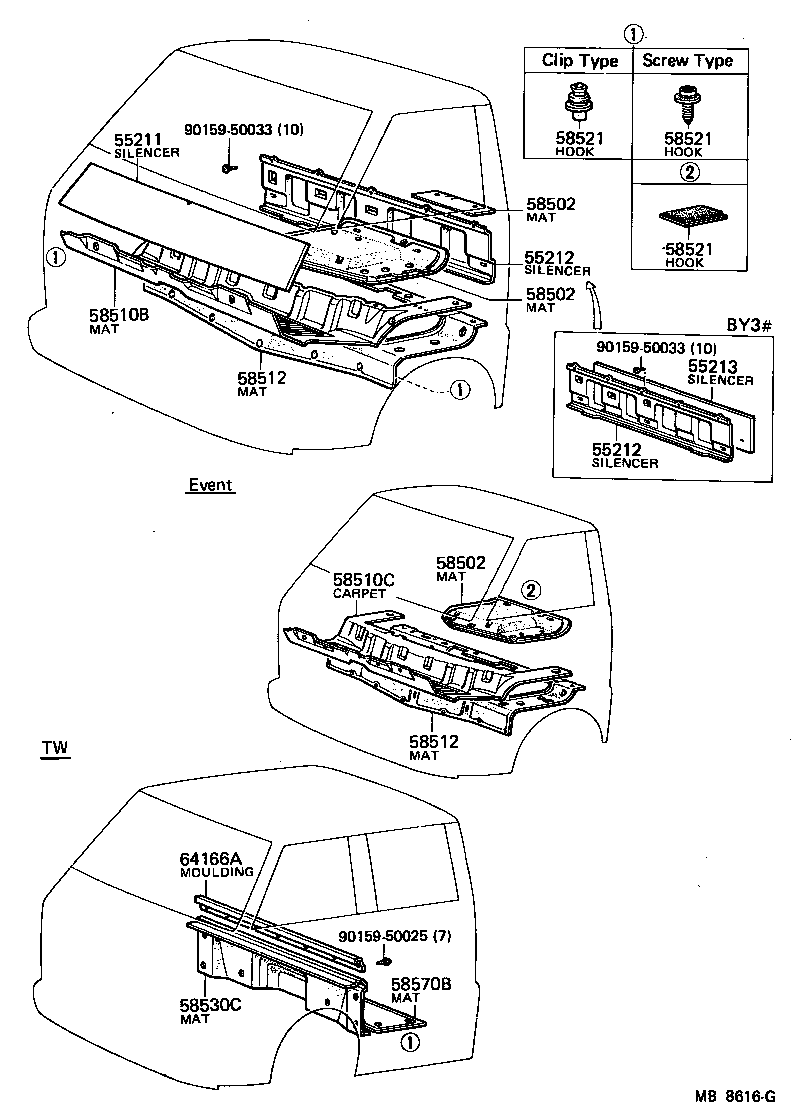

Click highlighted areas on diagram

diagram 55211 55212 55212 55213 58502 58502 58502 58510B 58510C 58512 58512 58521 58521 58521 58530C 58570B 64166A 9015950025 9015950033 9015950033
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95013

JY30,LY20,30,RY20,31

 1
55211-95014

BY30,JY30,LY20,30,RY20,31

 1
55212 - SILENCER SUB-ASSY, BACK PANEL
55207-95011

JY30,LY20,30..DMP,T1,T2,T3,VP,VPS,VT

 1
55212 - SILENCER SUB-ASSY, BACK PANEL
55207-95011

JY30,LY20,30..DMP,T1,T2,T3,VP,VPS,VT

 1
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58504-95013

BY30,JY30,LY20,30

FR

 1
58576-95010

BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT

RR

 1
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58504-95013

BY30,JY30,LY20,30

FR

 1
58576-95010

BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT

RR

 1
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58504-95013

BY30,JY30,LY20,30

FR

 1
58576-95010

BY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT

RR

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-95013

JY30,LY20,30

T=11.2

 1
58501-95019

BY30,JY30,LY20,30

T=11.2

 1
58501-95016

JY30,LY20,30

DELUXE,T=13

 1
58512 - MAT, SEAT FLOOR
58509-95012

BY30,JY30,LY20,30

 1
58509-95010

JY30,LY20,30

 1
58512 - MAT, SEAT FLOOR
58509-95012

BY30,JY30,LY20,30

 1
58509-95010

JY30,LY20,30

 1
58521 - HOOK, MALE, NO.1
90530-06001

BY3#,JY30,LY2#,3#,RY2#,3#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BY3#,JY30,LY2#,3#,RY2#,3#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BY3#,JY30,LY2#,3#,RY2#,3#

CLIP TYPE

 1
Common parts
90159-50025
90159-50033
