LY20-QDCT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7903- )LY2#,3#

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 9017908146
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LY2#,3#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-22090

LY30;LY20..15T;LY20..VP,VT

 1
44610 - BOOSTER ASSY, BRAKE
44610-25080

LY30;LY20..15T;LY20..VP,VT

 1
44610K - BOOSTER KIT, BRAKE
04443-25060

LY30;LY20..15T;LY20..VP,VT

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

LY2#,3#

 1
44642 - PISTON, BRAKE BOOSTER
44642-25080

LY30;LY20..15T;LY20..VP,VT

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

LY2#,3#

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

LY2#,3#

 1
Common parts
90179-08146

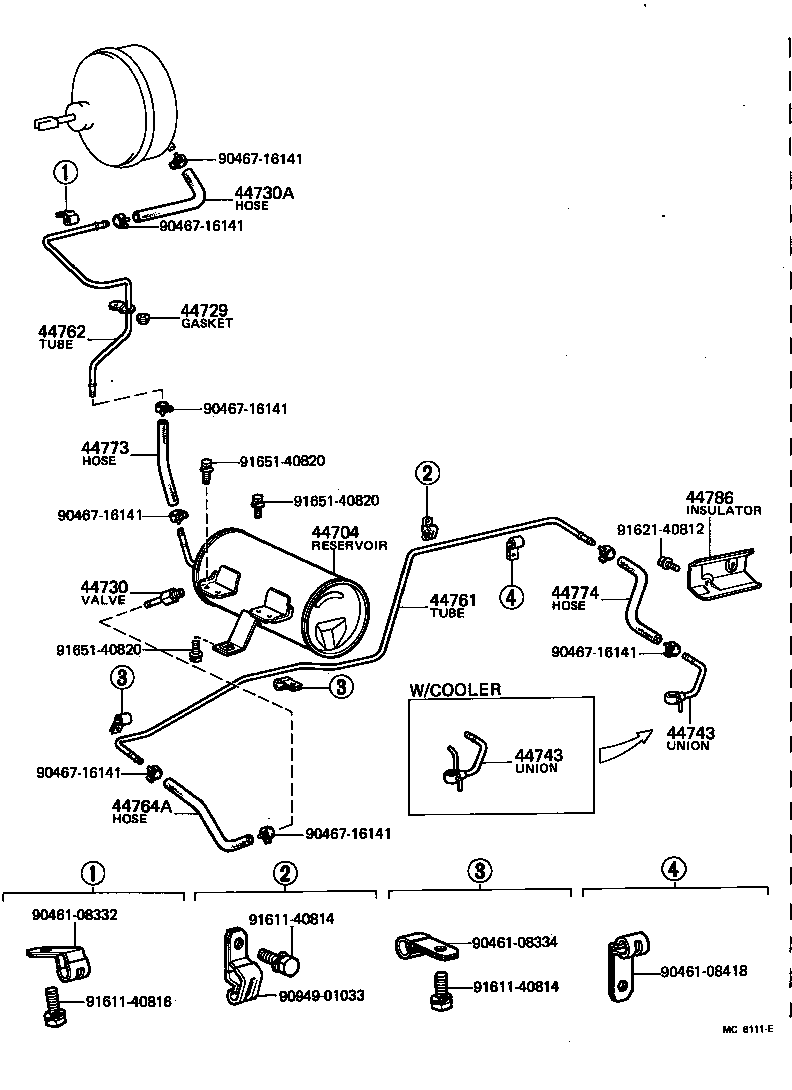

ILLUST NO. 2 OF 2(7903-8308)LY20,30

Click highlighted areas on diagram

diagram 44704 44729 44730 44730A 44743 44743 44761 44762 44764A 44773 44774 44786 9046108332 9046108334 9046108418 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9094901033 9161140814 9161140814 9161140816 9162140812 9165140820 9165140820 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25020

JY30,LY20,30

 1
44729 - GASKET, VACUUM TUBE
44729-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BY3#,JY30,LY2#,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764-25030

LY20,30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44764A - HOSE, BOOSTER VACUUM
44772-25020

LY20,30

 1
44773 - HOSE, VACUUM, NO.2
44771-25010

JY30,LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25021

LY2#,3#

 1
Common parts
90461-08332
90461-08334
90461-08418
90467-16141
90949-01033
91611-40814
91611-40816
91621-40812
91651-40820
