LY20-QDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

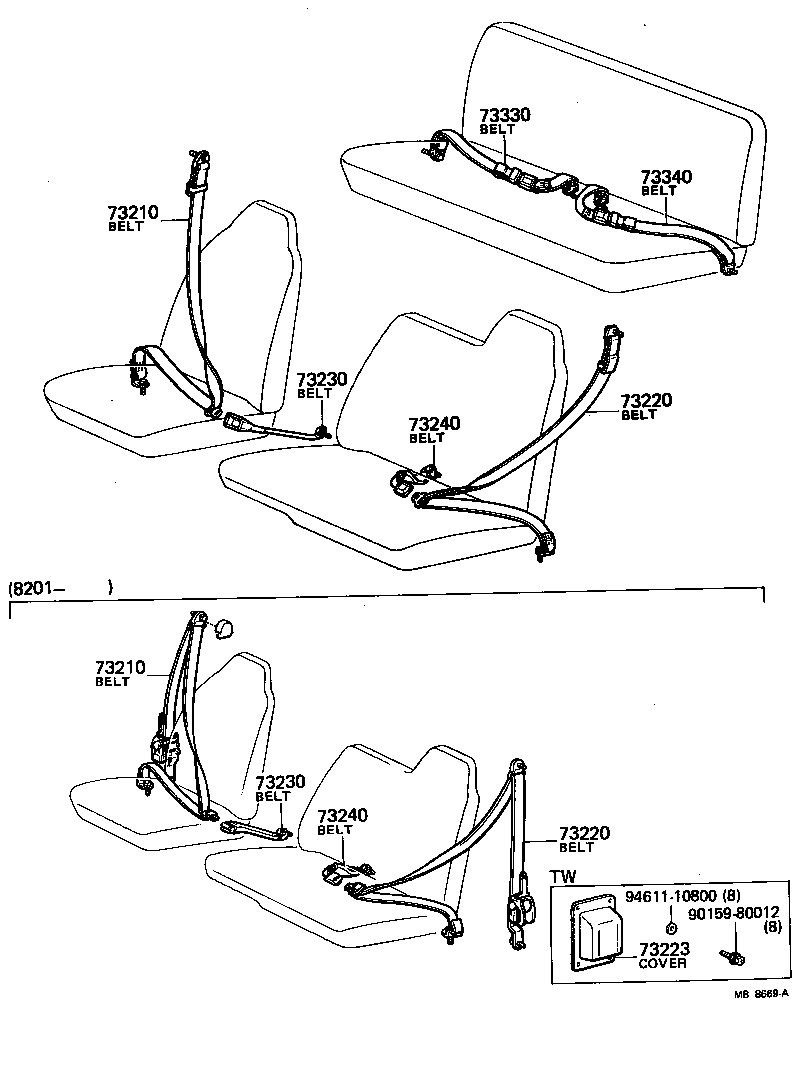

Click highlighted areas on diagram

diagram 73210 73210 73220 73220 73223 73230 73230 73240 73240 73330 73340 9015980012 9461110800
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71810-95402

BY30,JY30,LY20,30,RY20,31

 1
73210-95016

BY31,LY2#,31,RY21,32

 1
73210-95011

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73210-95017

BY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

W/*ELR

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71810-95402

BY30,JY30,LY20,30,RY20,31

 1
73210-95016

BY31,LY2#,31,RY21,32

 1
73210-95011

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73210-95017

BY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

W/*ELR

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71810-95402

BY30,JY30,LY20,30,RY20,31

 1
73210-95011

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73220-95010

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73210-95016

BY31,LY2#,31,RY21,32

 1
73220-95012

BY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

W/*ELR

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71810-95402

BY30,JY30,LY20,30,RY20,31

 1
73210-95011

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73220-95010

BY30,JY30,LY20,30,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

 1
73210-95016

BY31,LY2#,31,RY21,32

 1
73220-95012

BY31,LY2#,31,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT

W/*ELR

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95015

BY31,LY2#,31,RY21,32

 1
73230-95011

BY30,JY30,LY20,30,RY21,32

 1
71830-95402

BY30,JY30,LY20,30,RY20,31

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95015

BY31,LY2#,31,RY21,32

 1
73230-95011

BY30,JY30,LY20,30,RY21,32

 1
71830-95402

BY30,JY30,LY20,30,RY20,31

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95011

BY30,JY30,LY20,30,RY21,32

 1
73240-95015

BY31,LY2#,31,RY21,32

 1
71840-95402

BY30,JY30,LY20,30,RY20,31

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95011

BY30,JY30,LY20,30,RY21,32

 1
73240-95015

BY31,LY2#,31,RY21,32

 1
71840-95402

BY30,JY30,LY20,30,RY20,31

 1
Common parts
90159-80012
94611-10800
