LY20-QDB (1979)
Toyota Toyoace

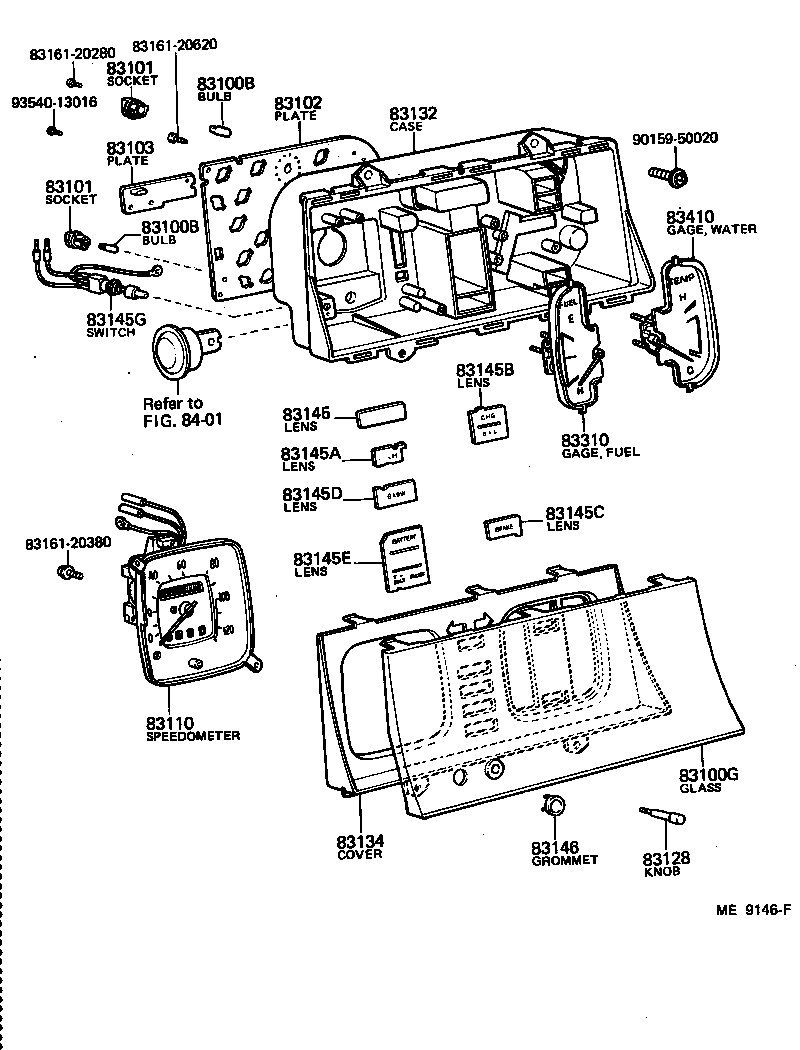

ILLUST NO. 1 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V 1.4W,24V 1.2W |
1 | ||
| 99132-12034 |
JY30,LY20,30,RY20,31 12V 3.4W,12V 3.4W |
14 | ||
| 99134-12030 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V 3W,24V 3W |
14 | ||
| 90981-11018 |
LY20,30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V 1.4W,24V 1.2W |
1 | ||
| 99132-12034 |
JY30,LY20,30,RY20,31 12V 3.4W,12V 3.4W |
14 | ||
| 99134-12030 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V 3W,24V 3W |
14 | ||
| 90981-11018 |
LY20,30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-95010 |
BY3#,JY30,RY2#,3# W/TRIP METER |
1 | ||
| 83138-95020 |
LY2#,3# W/TRIP METER |
1 | ||
| 83138-95040 |
LY20,30..ST |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-22010 |
LY20,30 12V 1.4W |
1 | ||
| 83101-20040 |
BY30,JY30,LY20,30,RY20,31 |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-22010 |
LY20,30 12V 1.4W |
1 | ||
| 83101-20040 |
BY30,JY30,LY20,30,RY20,31 |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95030 |
LY20,30 12V |
1 | ||
| 83247-95040 |
LY20;LY30..ST;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95020 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95010 |
BY3#,JY30,RY2#,3# W/TRIP METER |
1 | ||
| 83110-95015 |
LY20,30..ST |
1 | ||
| 83110-95011 |
LY2#,3# W/TRIP METER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95013 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95014 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95015 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95016 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95019 |
BY30,JY30,LY20,30 |
1 | ||
| 83145-95017 |
RY2#,3# |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95012 |
LY20,30 W/OK MONITOR |
1 | ||
| 83145-95010 |
LY20,30..ST |
1 | ||
| 83145-95020 |
LY20,30 W/TRIP METER |
1 | ||
| 83145-95018 |
RY2#,3# |
1 | ||
| 83145G - SWITCH ASSY, COMBINATION METER | ||||
| 83125-95010 |
LY2#,3# |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89117 |
LY2#,3# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95020 |
BY30,JY30,LY20,30,RY20,31 SENDER GAGE=83420-20020 |
1 | ||
| 83244-95010 |
JY30,LY20,30,RY20,31 SENDER GAGE=83420-20011 |
1 | ||
| Common parts | ||||
| 83161-20280 | ||||
| 83161-20380 | ||||
| 83161-20620 | ||||
| 90159-50020 | ||||
| 93540-13016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

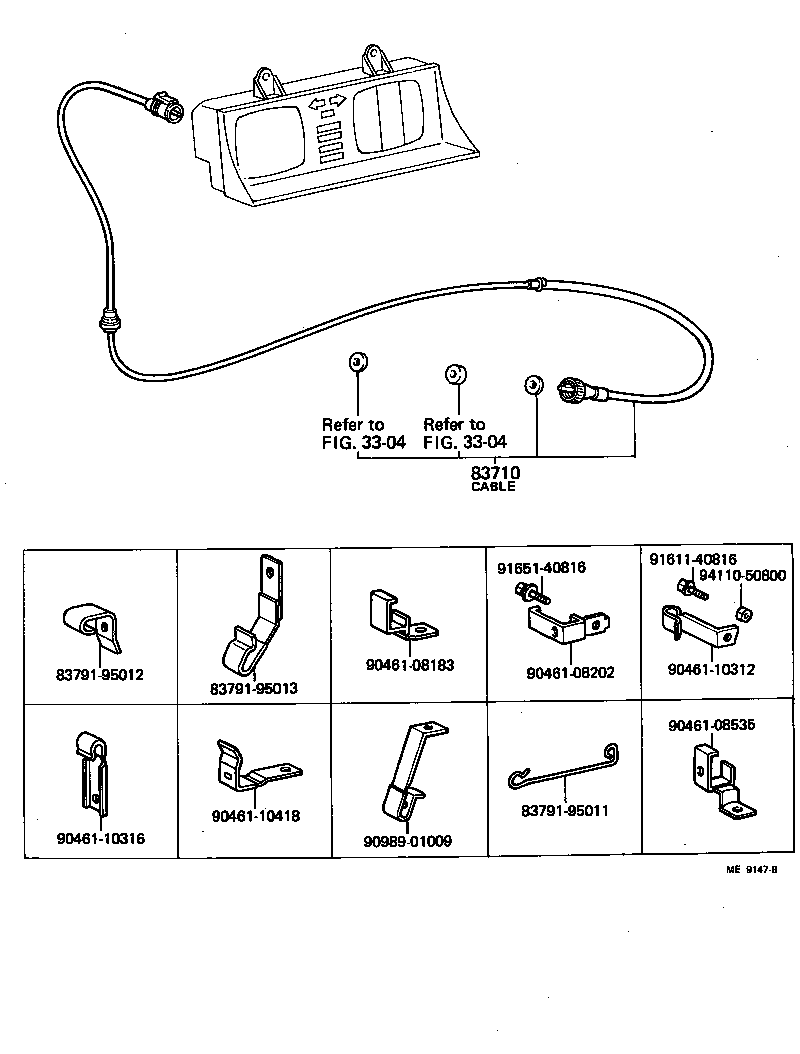

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29595 |
RY2#,3# |
1 | ||
| 83710-29605 |
LY20,30 |
1 | ||
| Common parts | ||||
| 83791-95011 | ||||
| 83791-95012 | ||||
| 83791-95013 | ||||
| 90461-08183 | ||||
| 90461-08202 | ||||
| 90461-08535 | ||||
| 90461-10312 | ||||
| 90461-10316 | ||||
| 90461-10418 | ||||
| 90989-01009 | ||||
| 91611-40816 | ||||
| 91651-40816 | ||||
| 94110-50800 | ||||
| Linked diagrams | ||||
| 3304 | ||||
