LY20-QDB (1979)
Toyota Toyoace

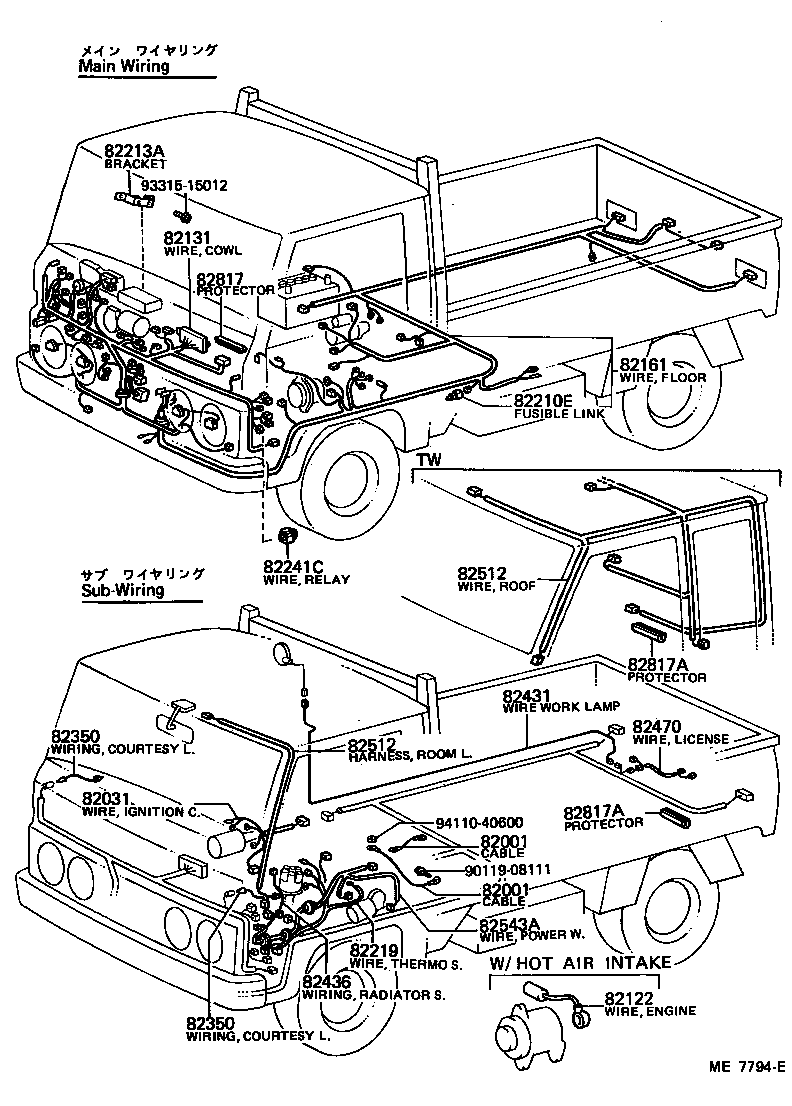

ILLUST NO. 1 OF 6(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07143 |
JY30,LY20,30,RY20,31 |
1 | ||
| 90980-07021 |
RY2#,3# CARBURETOR-CANISTER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07143 |
JY30,LY20,30,RY20,31 |
1 | ||
| 90980-07021 |
RY2#,3# CARBURETOR-CANISTER |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82210-95070 |
LY20,30 |
1 | ||
| 82131-95011 |
LY20,30 |
1 | ||
| 82210-95077 |
LY20,30 W/POWER WINDOW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82410-95028 |
LY20 |
1 | ||
| 82161-95014 |
LY20..ST |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82402-95010 |
LY20,30 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
JY30,LY20,30,RY20,31..T1,T3,TW,VPS W/O INTERMITENT WIPER |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82432-95400 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82432-95400 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| 82512 - HARNESS ASSY, ROOM LAMP SUB WIRE | ||||
| 82510-95403 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 82512 - HARNESS ASSY, ROOM LAMP SUB WIRE | ||||
| 82510-95403 |
BY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT |
1 | ||
| 82543A - WIRE, POWER WINDOW, RH | ||||
| 82702-95010 |
JY30,LY20,30,RY20,31 W/POWER WINDOW |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 83712-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90119-08111 | ||||
| 93315-15012 | ||||
| 94110-40600 | ||||

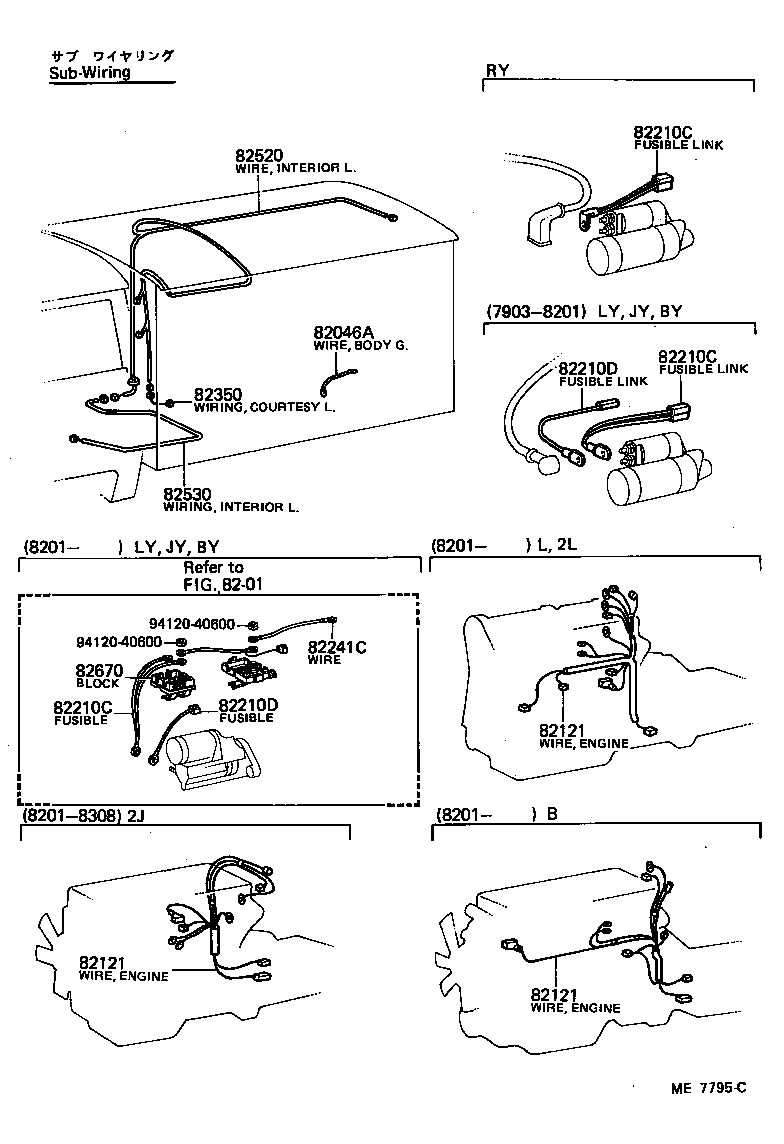

ILLUST NO. 2 OF 6(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-95010 |
LY20,30 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95010 |
LY20,30 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95010 |
LY20,30 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08098 |
LY30..ST;JY30,LY20;LY30..T2,VP,VPS,VT 12V 2.5KW,24V 4.5KW STARTER |
1 | ||
| 90982-08058 |
RY2#,3# 長さ=110,0.85R,0.5G |
1 | ||
| 90982-08058 |
LY20,30 長さ=110,0.85R,0.5G,12V 2.0KW STARTER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08098 |
LY30..ST;JY30,LY20;LY30..T2,VP,VPS,VT 12V 2.5KW,24V 4.5KW STARTER |
1 | ||
| 90982-08058 |
RY2#,3# 長さ=110,0.85R,0.5G |
1 | ||
| 90982-08058 |
LY20,30 長さ=110,0.85R,0.5G,12V 2.0KW STARTER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08098 |
LY30..ST;JY30,LY20;LY30..T2,VP,VPS,VT 12V 2.5KW,24V 4.5KW STARTER |
1 | ||
| 90982-08058 |
RY2#,3# 長さ=110,0.85R,0.5G |
1 | ||
| 90982-08058 |
LY20,30 長さ=110,0.85R,0.5G,12V 2.0KW STARTER |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08153 |
LY20,30 12V 2.0KW STARTER |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08153 |
LY20,30 12V 2.0KW STARTER |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
JY30,LY20,30,RY20,31..T1,T3,TW,VPS W/O INTERMITENT WIPER |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82432-95400 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| Common parts | ||||
| 94120-40600 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 6(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06019 | ||||
| 90461-07007 | ||||
| 90461-08202 | ||||
| 90461-08269 | ||||
| 90461-10223 | ||||
| 90461-10247 | ||||
| 90461-10286 | ||||
| 90461-10319 | ||||
| 90461-10358 | ||||
| 90461-10363 | ||||
| 90461-10364 | ||||
| 90461-10369 | ||||
| 90461-10382 | ||||
| 90461-10423 | ||||
| 90461-12834 | ||||
| 90463-08121 | ||||
| 90463-08124 | ||||
| 90463-08375 | ||||
| 90463-10031 | ||||
| 90463-10068 | ||||
| 90464-00121 | ||||
| 90464-00156 | ||||
| 90464-00165 | ||||
| 90480-35002 | ||||
ILLUST NO. 4 OF 6(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90189-05011 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08186 | ||||
| 90461-08200 | ||||
| 90461-08215 | ||||
| 90461-08269 | ||||
| 90461-08283 | ||||
| 90461-08312 | ||||
| 90461-08348 | ||||
| 90461-08365 | ||||
| 90461-10285 | ||||
| 90461-10294 | ||||
| 90461-10312 | ||||
| 90461-10360 | ||||
| 90461-10421 | ||||
| 90461-10512 | ||||
| 90461-10617 | ||||
| 90463-04012 | ||||
| 90463-04079 | ||||
| 90464-00042 | ||||
| 90480-14053 | ||||
| 90480-19435 | ||||
ILLUST NO. 5 OF 6(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90189-04024 | ||||
| 90461-06032 | ||||
| 90461-08175 | ||||
| 90461-08230 | ||||
| 90461-08265 | ||||
| 90461-10406 | ||||
| 90461-10420 | ||||
| 90461-10462 | ||||
| 90461-10472 | ||||
| 90461-12146 | ||||
| 90461-12869 | ||||
| 90463-06077 | ||||
| 90463-06097 | ||||
| 90463-06161 | ||||
| 90463-08026 | ||||
| 90463-08030 | ||||
| 90463-08185 | ||||
| 90463-08283 | ||||
| 90463-12570 | ||||
| 90463-15298 | ||||
| 90464-00073 | ||||
| 90464-00102 | ||||
| 90480-30004 | ||||
| 90480-55003 | ||||
| 90950-01119 | ||||
ILLUST NO. 6 OF 6(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-95012 | ||||
| 90189-05011 | ||||
| 90461-10311 | ||||
| 90461-10383 | ||||
| 90463-10335 | ||||
| 90463-15002 | ||||
| 90464-00174 | ||||
| 90480-01070 | ||||
| 90989-01019 | ||||
