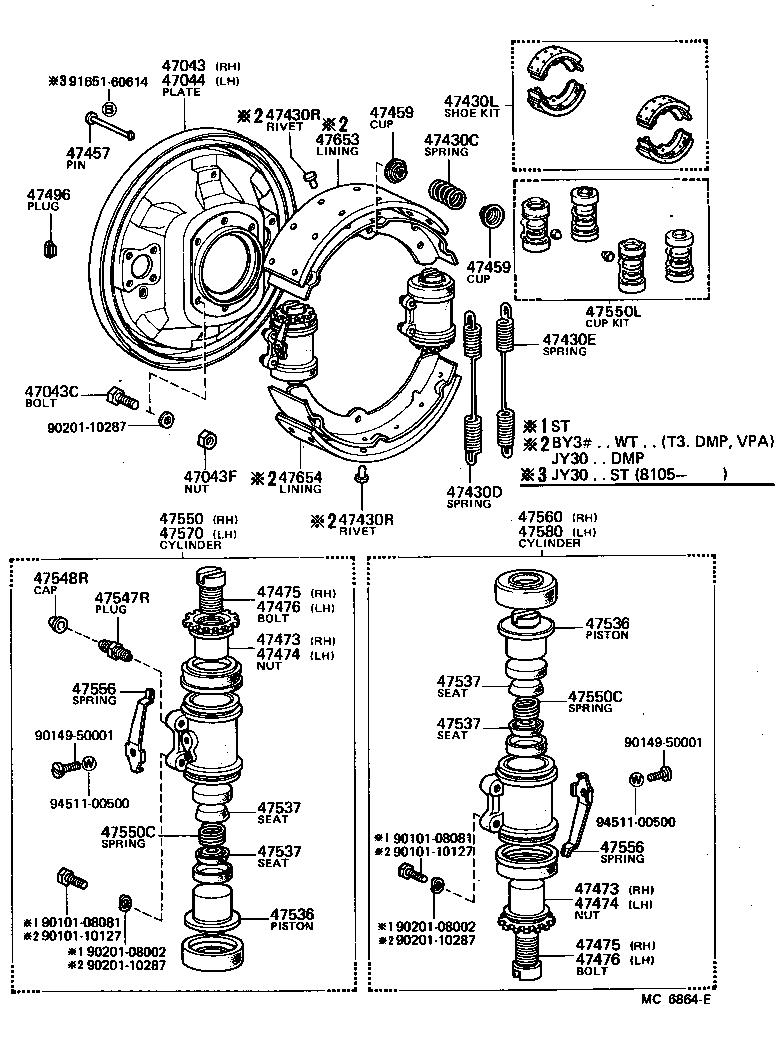

LY20-QDB (1979)
Toyota Toyoace
(7903- )LY3#..ST ; (7903- )JY30,LY2#,RY2#,3#..DMP,T1,T3,TW ; (8009- )BY3#.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25060 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35010 |
LY2#,3#,RY2#,3#..ST |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
BY3#,JY30,LY2#,3#,RY2#,3# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25030 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY2#,3#,RY2#,3#..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04496-25020 |
LY2#,3#,RY2#,3#..ST REBUILT |
1 | ||
| 04494-25020 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
JY30..WT..20T;LY20,30,RY2#,3# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BY3#,JY30,LY2#,3#,RY2#,3# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BY3#,JY30,LY2#,3#,RY2#,3# |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36071 |
BY31,JY30,LY2#,3#,RY2#,3#..ST LH SCREW |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36071 |
BY31,JY30,LY2#,3#,RY2#,3#..ST LH SCREW |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
BY31,JY30,LY2#,3#,RY2#,3#..ST RH SCREW |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
BY31,JY30,LY2#,3#,RY2#,3#..ST RH SCREW |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
BY31,JY30,LY2#,3#,RY2#,3#..ST LH SCREW |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
BY31,JY30,LY2#,3#,RY2#,3#..ST LH SCREW |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
BY31,JY30,LY2#,3#,RY2#,3#..ST RH SCREW |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
BY31,JY30,LY2#,3#,RY2#,3#..ST RH SCREW |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-35090 |
LY2#,3#,RY2#,3#..ST |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-35090 |
LY2#,3#,RY2#,3#..ST |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29215 |
LY2#,3#,RY2#,3#..ST ID=28.5 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
4 | ||
| 47550L - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36040 |
BY31,JY30,LY2#,3#,RY2#,3#..ST ID=28.5 |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BY31,JY30,LY2#,3#,RY2#,3#..ST |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-29075 |
LY2#,3#,RY2#,3#..ST ID=28.5 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-29075 |
LY2#,3#,RY2#,3#..ST ID=28.5 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-29075 |
LY2#,3#,RY2#,3#..ST ID=28.5 |
1 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90101-10127 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 91651-60614 | ||||
| 94511-00500 | ||||
