LY20-QDB (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)LY20,30,RY20,31

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136 45136 45136A 45146 45146 45201P 45207 9331914008 9331914008 9331915014 9351013010 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2602005

LY20,30,RY20,31

BEIGE,BEIGE

 1
45125 - MARK, STEERING WHEEL PAD
45125-26010

LY20,30,RY20,31

 1
45129 - BUTTON, HORN, NO.2
45131-26020

LY20,30,RY20,31

 1
45130 - BUTTON ASSY, HORN
45130-2602005

LY20,30,RY20,31

BEIGE,BEIGE

 1
45131 - BUTTON, HORN, NO.1
45131-26020

LY20,30,RY20,31

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BY3#,JY30,LY2#,3#,RY2#,3#

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BY3#,JY30,LY2#,3#,RY2#,3#

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

BY3#,JY30,LY2#,3#,RY2#,3#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BY30,JY30,LY20,30,RY20,31

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BY30,JY30,LY20,30,RY20,31

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

BY3#,JY30,LY2#,3#,RY2#,3#

 1
45207 - RING, HORN CONTACT
45176-22020

LY20,30,RY20,31

 1
Common parts
93319-14008
93319-15014
93510-13010

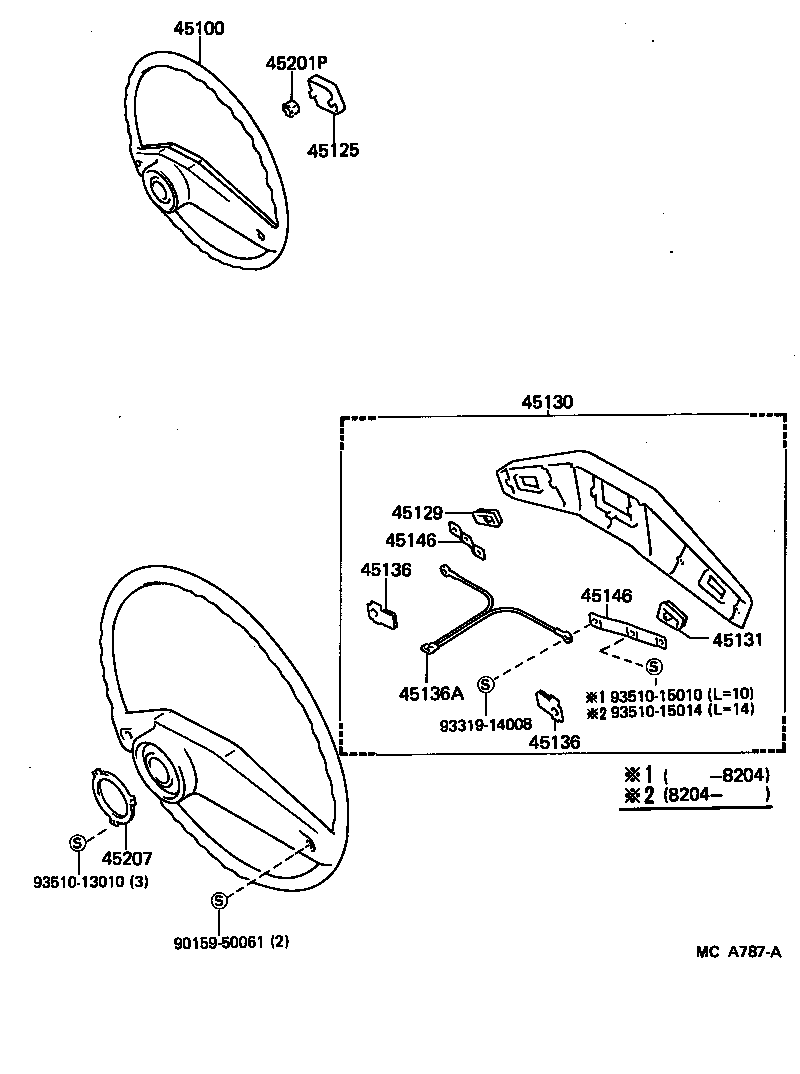

(8201- )

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136 45136 45136A 45146 45146 45201P 45207 9015950061 9331914008 9351013010 9351015010 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2602005

LY20,30,RY20,31

BEIGE,BEIGE

 1
45125 - MARK, STEERING WHEEL PAD
45125-26010

LY20,30,RY20,31

 1
45129 - BUTTON, HORN, NO.2
45131-26020

LY20,30,RY20,31

 1
45130 - BUTTON ASSY, HORN
45130-2602005

LY20,30,RY20,31

BEIGE,BEIGE

 1
45131 - BUTTON, HORN, NO.1
45131-26020

LY20,30,RY20,31

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BY3#,JY30,LY2#,3#,RY2#,3#

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

BY3#,JY30,LY2#,3#,RY2#,3#

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

BY3#,JY30,LY2#,3#,RY2#,3#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BY30,JY30,LY20,30,RY20,31

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

BY30,JY30,LY20,30,RY20,31

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

BY3#,JY30,LY2#,3#,RY2#,3#

 1
45207 - RING, HORN CONTACT
45176-22020

LY20,30,RY20,31

 1
Common parts
90159-50061
93319-14008
93510-13010
93510-15010
93510-15014
