JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8004- )DMP

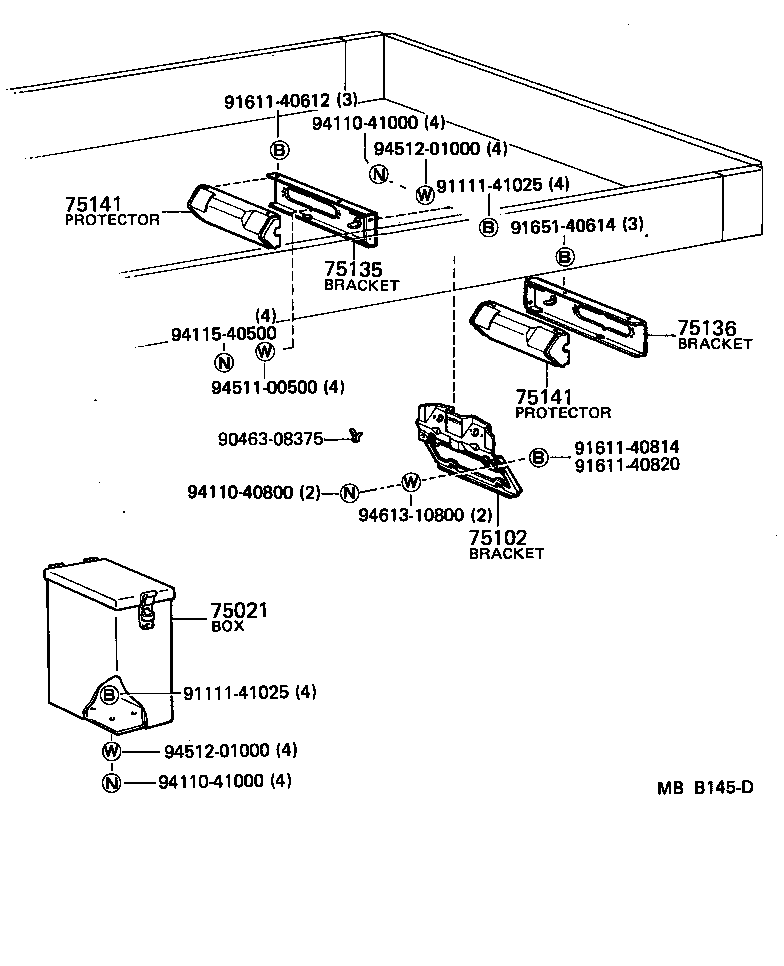

Click highlighted areas on diagram

diagram 75021 75102 75135 75136 75141 75141 9046308375 9111141025 9111141025 9161140612 9161140814 9161140820 9165140614 9411040800 9411041000 9411041000 9411540500 9451100500 9451201000 9451201000 9461310800
Part # Description Qty Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
74707-96250

JY30..15T

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
74708-96250

JY30..15T

 1
Common parts
90463-08375
91111-41025
91611-40612
91611-40814
91611-40820
91651-40614
94110-40800
94110-41000
94115-40500
94511-00500
94512-01000
94613-10800
