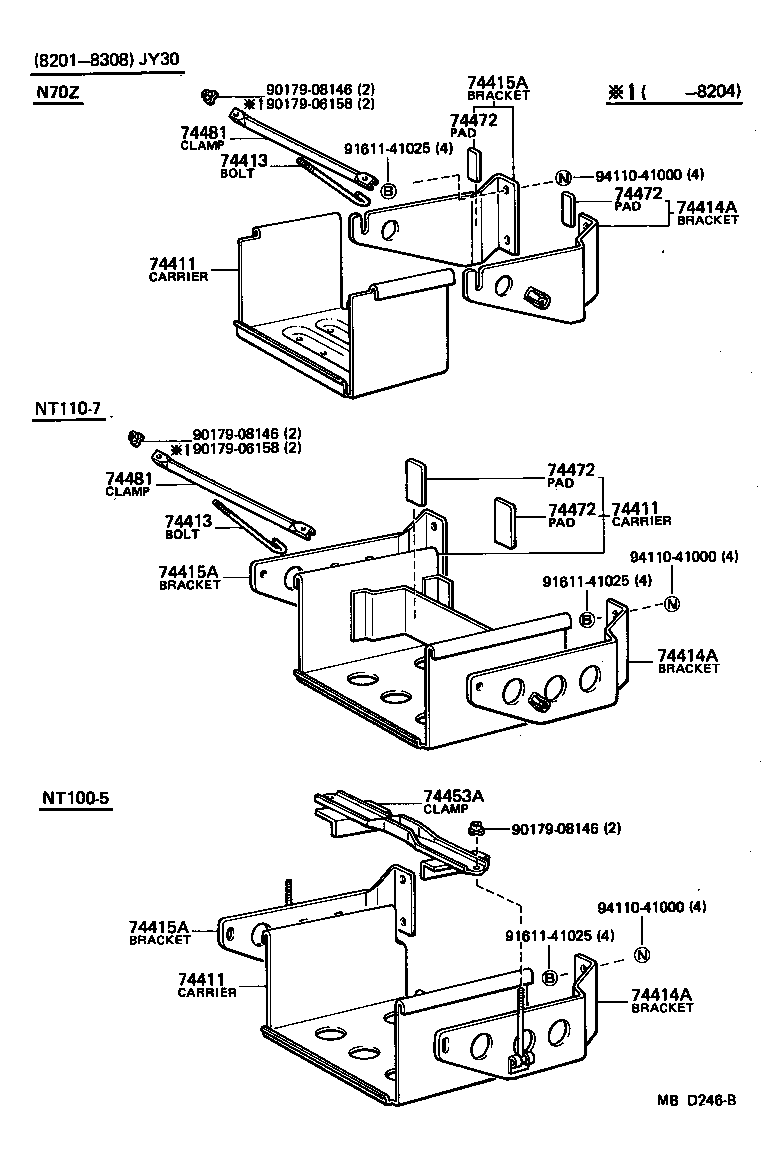

JY30D-QDT3 (1980)
Toyota Toyoace
(7903-8201)LY20,30 ; (7903-8201)RY20,31..T2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74408 - CLAMP SUB-ASSY, BATTERY COVER | ||||
| 74408-55020 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
2 | ||
| 74408-55020 |
JY30..DMP,T2,T3 12V,N100Z |
2 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25011 |
LY20,30,RY20,31..WT |
1 | ||
| 74417-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 74451 - PLATE, BATTERY CARRIER SUPPORT | ||||
| 74451-36040 |
LY20,30 12V,NX120-7L |
2 | ||
| 74451-36050 |
BY30,JY30 24V,N70Z |
2 | ||
| 74451 - PLATE, BATTERY CARRIER SUPPORT | ||||
| 74451-36040 |
LY20,30 12V,NX120-7L |
2 | ||
| 74451-36050 |
BY30,JY30 24V,N70Z |
2 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY30..DMP,T2,T3 24V,N70Z |
1 | ||
| 74461-36010 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461-36020 |
JY30..DMP,T2,T3 12V,N100Z |
1 | ||
| 74405-36021 |
LY20,30..T3 24V,NX110-5 |
1 | ||
| 74405-36012 |
BY30,JY30..DMP,T2,T3,VPA 24V,N70Z |
1 | ||
| 74405-36022 |
BY30,LY20,30..T3,VPA 24V,NX110-5 |
1 | ||
| 74461-36011 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY30..DMP,T2,T3 24V,N70Z |
1 | ||
| 74461-36010 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461-36020 |
JY30..DMP,T2,T3 12V,N100Z |
1 | ||
| 74405-36021 |
LY20,30..T3 24V,NX110-5 |
1 | ||
| 74405-36012 |
BY30,JY30..DMP,T2,T3,VPA 24V,N70Z |
1 | ||
| 74405-36022 |
BY30,LY20,30..T3,VPA 24V,NX110-5 |
1 | ||
| 74461-36011 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| Common parts | ||||
| 91611-41025 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 94613-10800 | ||||
(7903-8201)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74408 - CLAMP SUB-ASSY, BATTERY COVER | ||||
| 74408-55020 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
2 | ||
| 74408-55020 |
JY30..DMP,T2,T3 12V,N100Z |
2 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74451 - PLATE, BATTERY CARRIER SUPPORT | ||||
| 74451-36040 |
LY20,30 12V,NX120-7L |
2 | ||
| 74451-36050 |
BY30,JY30 24V,N70Z |
2 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY30..DMP,T2,T3 24V,N70Z |
1 | ||
| 74461-36010 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461-36020 |
JY30..DMP,T2,T3 12V,N100Z |
1 | ||
| 74405-36021 |
LY20,30..T3 24V,NX110-5 |
1 | ||
| 74405-36012 |
BY30,JY30..DMP,T2,T3,VPA 24V,N70Z |
1 | ||
| 74405-36022 |
BY30,LY20,30..T3,VPA 24V,NX110-5 |
1 | ||
| 74461-36011 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY30..DMP,T2,T3 24V,N70Z |
1 | ||
| 74461-36010 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74461-36020 |
JY30..DMP,T2,T3 12V,N100Z |
1 | ||
| 74405-36021 |
LY20,30..T3 24V,NX110-5 |
1 | ||
| 74405-36012 |
BY30,JY30..DMP,T2,T3,VPA 24V,N70Z |
1 | ||
| 74405-36022 |
BY30,LY20,30..T3,VPA 24V,NX110-5 |
1 | ||
| 74461-36011 |
LY20,30..T2,T3,VP,VPS,VT 12V,NX120-7L |
1 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-36020 |
JY30 12V,100Z |
1 | ||
| Common parts | ||||
| 91611-41025 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
(8201- )LY2#,3# ; (8201- )RY21,32..T2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25011 |
LY20,30,RY20,31..WT |
1 | ||
| 74417-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25011 |
LY20,30,RY20,31..WT |
1 | ||
| 74417-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25011 |
LY20,30,RY20,31..WT |
1 | ||
| 74417-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-25021 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74453-25020 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74404-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-25021 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74453-25020 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74404-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91611-41025 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
(8201-8308)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36040 |
JY30 12V,N100Z |
1 | ||
| 74421-36090 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-36080 |
BY30,JY30 24V,N70Z |
1 | ||
| 74421-36090 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36091 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74421-36010 |
LY20,30 12V,NX120-7L |
1 | ||
| 74421-25010 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY30 12V,N100Z |
1 | ||
| 74451-25030 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08132 |
LY20,30 12V,NX120-7L |
1 | ||
| 74451-36070 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 90101-08223 |
BY30,JY30 24V,N70Z |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74401-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74401-36170 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74411-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74402-25120 |
JY30..DMP,T1,T3 24V,NT100-5 |
1 | ||
| 74401-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36120 |
BY30,JY30..DMP,T1,T3 24V,N70Z |
1 | ||
| 74401-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-25020 |
LY20,30..WT 12V,NX120-7L |
1 | ||
| 74402-36110 |
JY30..DMP,T1,T3 12V,N100Z |
1 | ||
| 74402-25050 |
BY30,JY30..DMP,T1,T2,T3 24V,N70Z |
1 | ||
| 74402-25061 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25060 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74402-25110 |
JY30..DMP,T1,T3 24V,NT100-5,RR |
1 | ||
| 74412-25011 |
RY2#,3# 12V,NS40ZAL & N50 |
1 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
2 | ||
| 74472-25010 |
RY2#,3# 12V,NS40ZAL |
2 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-25021 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74453-25020 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74404-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-25021 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| 74453-25020 |
RY2#,3# 12V,NS40ZAL |
1 | ||
| 74404-25020 |
JY30..DMP,T1,T3 12V,N70Z & NT110-7 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91611-41025 | ||||
| 94110-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
