JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8004-8308)JY30..15T

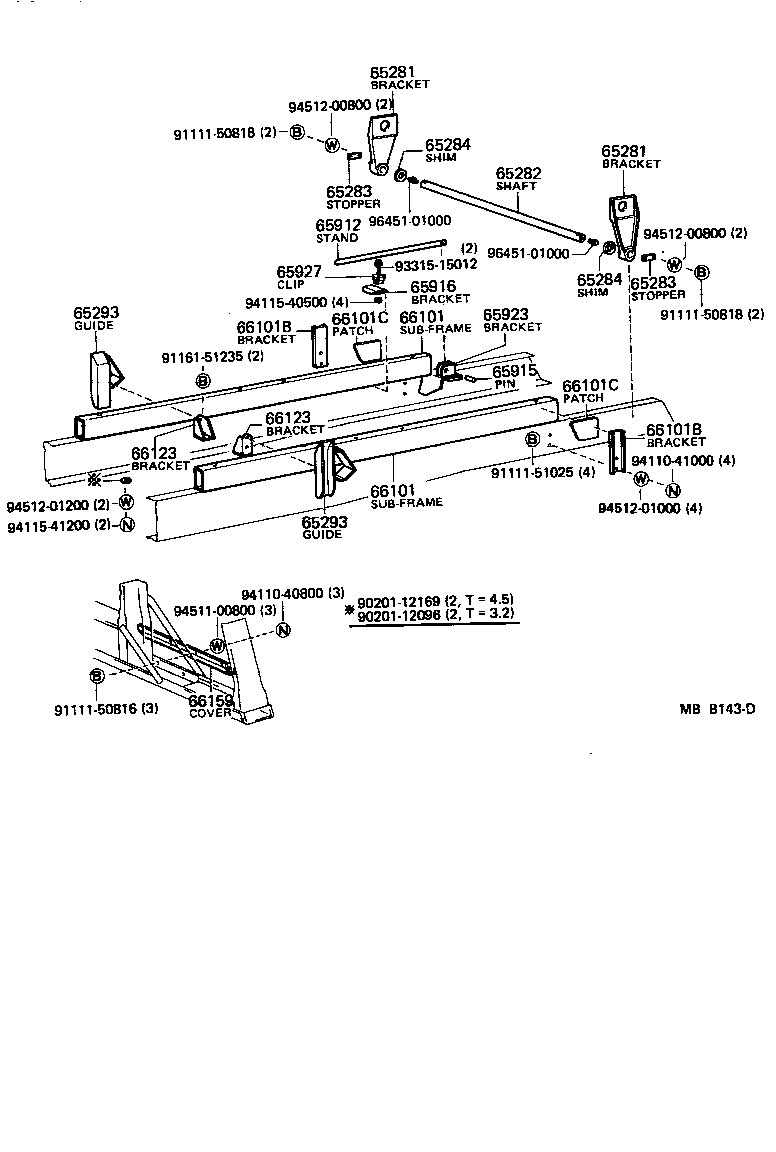

Click highlighted areas on diagram

diagram 65281 65281 65282 65283 65283 65284 65284 65293 65293 65912 65915 65916 65923 65927 66101 66101 66101B 66101B 66101C 66101C 66123 66123 66159 9020112096 9020112169 9111150816 9111150818 9111150818 9111151025 9116151235 9331515012 9411040800 9411041000 9411540500 9411541200 9451100800 9451200800 9451200800 9451201000 9451201200 9645101000 9645101000
Part # Description Qty Price
65281 - BRACKET, BEZEL HINGE
65281-96250

JY30..15T

 2
65281 - BRACKET, BEZEL HINGE
65281-96250

JY30..15T

 2
65293 - GUIDE, VESSEL
65601-96250

JY30..15T

RH

 1
65602-96250

JY30..15T

LH

 1
65293 - GUIDE, VESSEL
65601-96250

JY30..15T

RH

 1
65602-96250

JY30..15T

LH

 1
66101 - SUB-FRAME SUB-ASSY
66111-96250

JY30..15T

RH

 1
66112-96251

JY30..15T

LH

 1
66111-96251

JY30..15T

RH

 1
66112-96250

JY30..15T

LH

 1
66101 - SUB-FRAME SUB-ASSY
66111-96250

JY30..15T

RH

 1
66112-96251

JY30..15T

LH

 1
66111-96251

JY30..15T

RH

 1
66112-96250

JY30..15T

LH

 1
66101B - BRACKET, INDICATOR WEIGHT
66128-96250

JY30..15T

 2
66128-96251

JY30..15T

 2
66101B - BRACKET, INDICATOR WEIGHT
66128-96250

JY30..15T

 2
66128-96251

JY30..15T

 2
66101C - PATCH, PLATE MAIN SILL
65119-96250

JY30..15T

 2
66101C - PATCH, PLATE MAIN SILL
65119-96250

JY30..15T

 2
66123 - BRACKET, SUB-FRAME MOUNTING
51751-36020

JY30..15T

 2
66123 - BRACKET, SUB-FRAME MOUNTING
51751-36020

JY30..15T

 2
66159 - COVER, REAR BODY, DUCT
66159-96250

JY30..15T

 1
Common parts
90201-12096
90201-12169
91111-50816
91111-50818
91111-51025
91161-51235
93315-15012
94110-40800
94110-41000
94115-40500
94115-41200
94511-00800
94512-00800
94512-01000
94512-01200
96451-01000
