JY30D-QDT3 (1980)
Toyota Toyoace
Production
Apr 1980
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8004-8308)JY30..15T

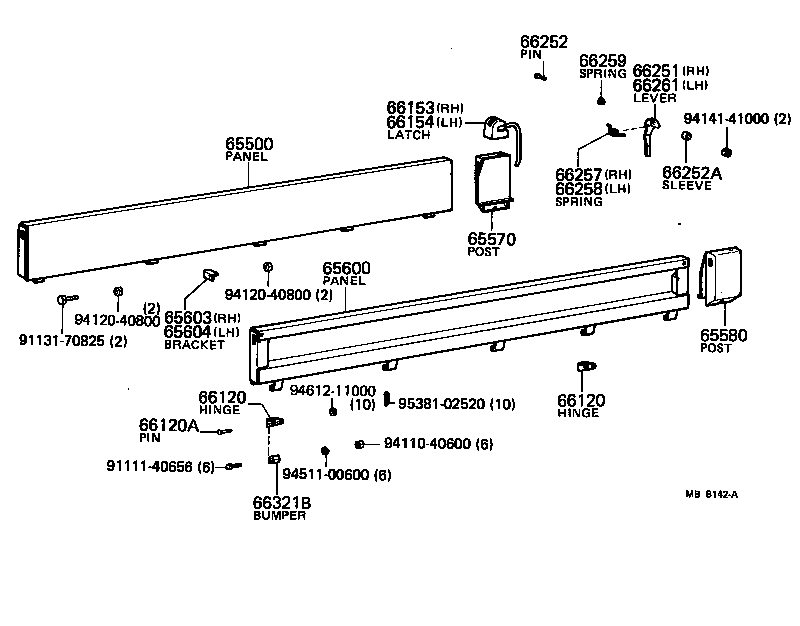

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65501-96250 |
JY30..15T |
1 | ||
| 65570 - POST ASSY, SIDE PANEL REAR END, RH | ||||
| 65202-96250 |
JY30..15T |
1 | ||
| 65580 - POST ASSY, SIDE PANEL REAR END, LH | ||||
| 65203-96250 |
JY30..15T |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65501-96250 |
JY30..15T |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66232-96303 |
JY30..15T W/O BUMPER |
4 | ||
| 66235-96305 |
JY30..15T W/BUMPER |
6 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66232-96303 |
JY30..15T W/O BUMPER |
4 | ||
| 66235-96305 |
JY30..15T W/BUMPER |
6 | ||
| 66251 - LEVER, SIDE GATE STOPPER, RH | ||||
| 66251-96250 |
JY30..15T FR |
1 | ||
| 66261-96250 |
JY30..15T RR |
1 | ||
| 66252 - PIN, SIDE GATE STOPPER | ||||
| 66252-96303 |
JY30..15T |
4 | ||
| 66252A - SLEEVE, SIDE GATE STOPPER | ||||
| 66259-96303 |
JY30..15T |
4 | ||
| 66257 - SPRING, SIDE GATE LOCK, RH | ||||
| 90508-35335 |
JY30..15T RR |
1 | ||
| 90508-35334 |
JY30..15T FR |
1 | ||
| 66258 - SPRING, SIDE GATE LOCK, LH | ||||
| 90508-35334 |
JY30..15T RR |
1 | ||
| 90508-35335 |
JY30..15T FR |
1 | ||
| 66261 - LEVER, SIDE GATE STOPPER, LH | ||||
| 66261-96250 |
JY30..15T FR |
1 | ||
| 66251-96250 |
JY30..15T RR |
1 | ||
| Common parts | ||||
| 91111-40656 | ||||
| 91131-70825 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94141-41000 | ||||
| 94511-00600 | ||||
| 94612-11000 | ||||
| 95381-02520 | ||||
