JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8004- )DMP

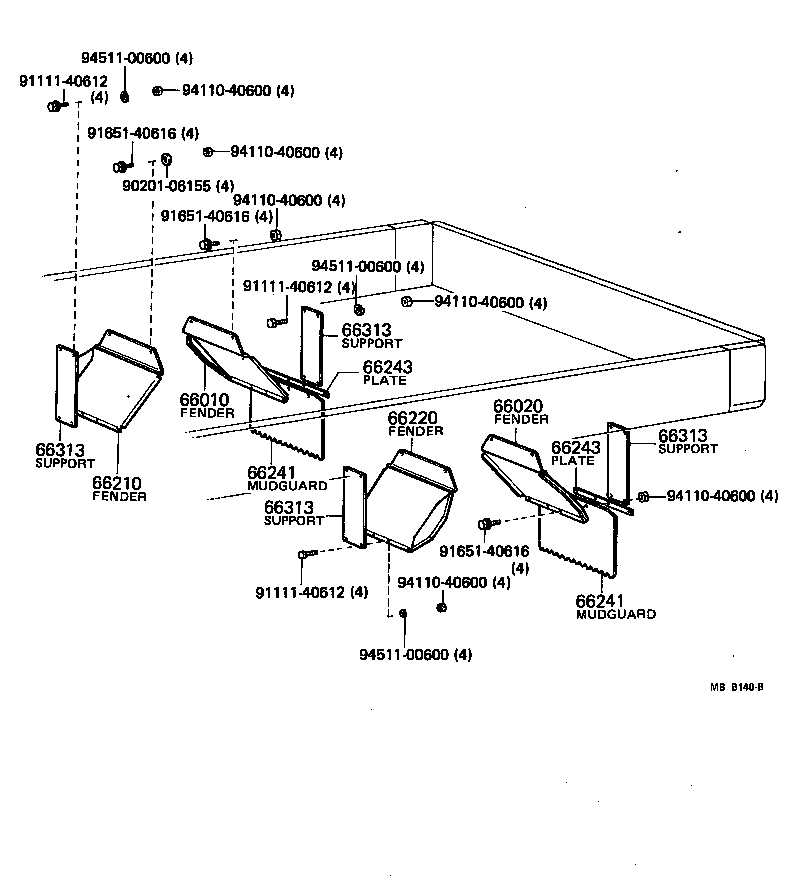

Click highlighted areas on diagram

diagram 66010 66020 66210 66220 66241 66241 66243 66243 66313 66313 66313 66313 9020106155 9111140612 9111140612 9111140612 9165140616 9165140616 9165140616 9411040600 9411040600 9411040600 9411040600 9411040600 9411040600 9451100600 9451100600 9451100600
Part # Description Qty Price
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95013

LY20,30,RY20,31..TS..WT

 1
66241 - MUDGUARD, REAR
66241-95010

LY20,30,RY20,31..TS..WT

 2
66331-96302

JY30..15T

 2
66241 - MUDGUARD, REAR
66241-95010

LY20,30,RY20,31..TS..WT

 2
66331-96302

JY30..15T

 2
Common parts
90201-06155
91111-40612
91651-40616
94110-40600
94511-00600
